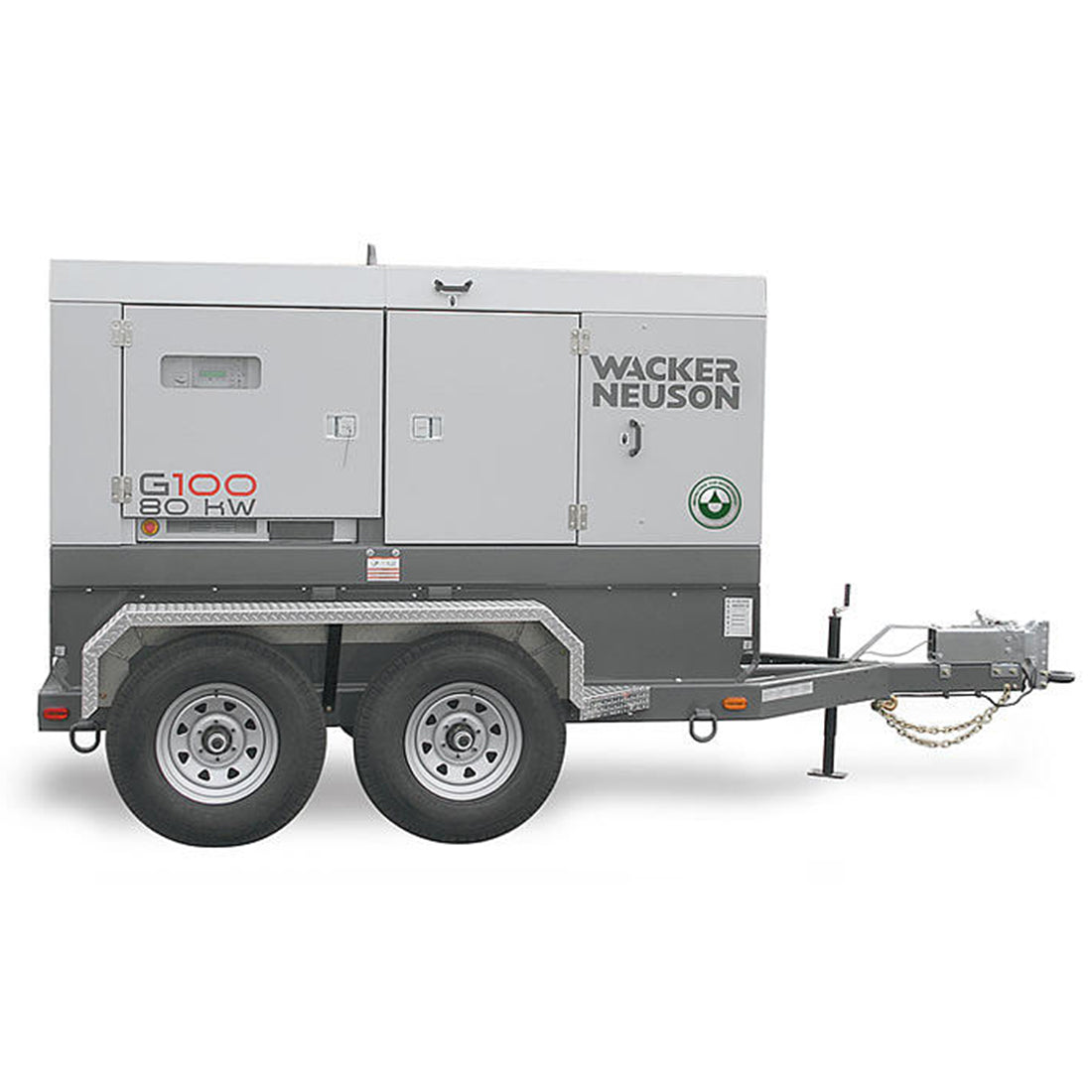

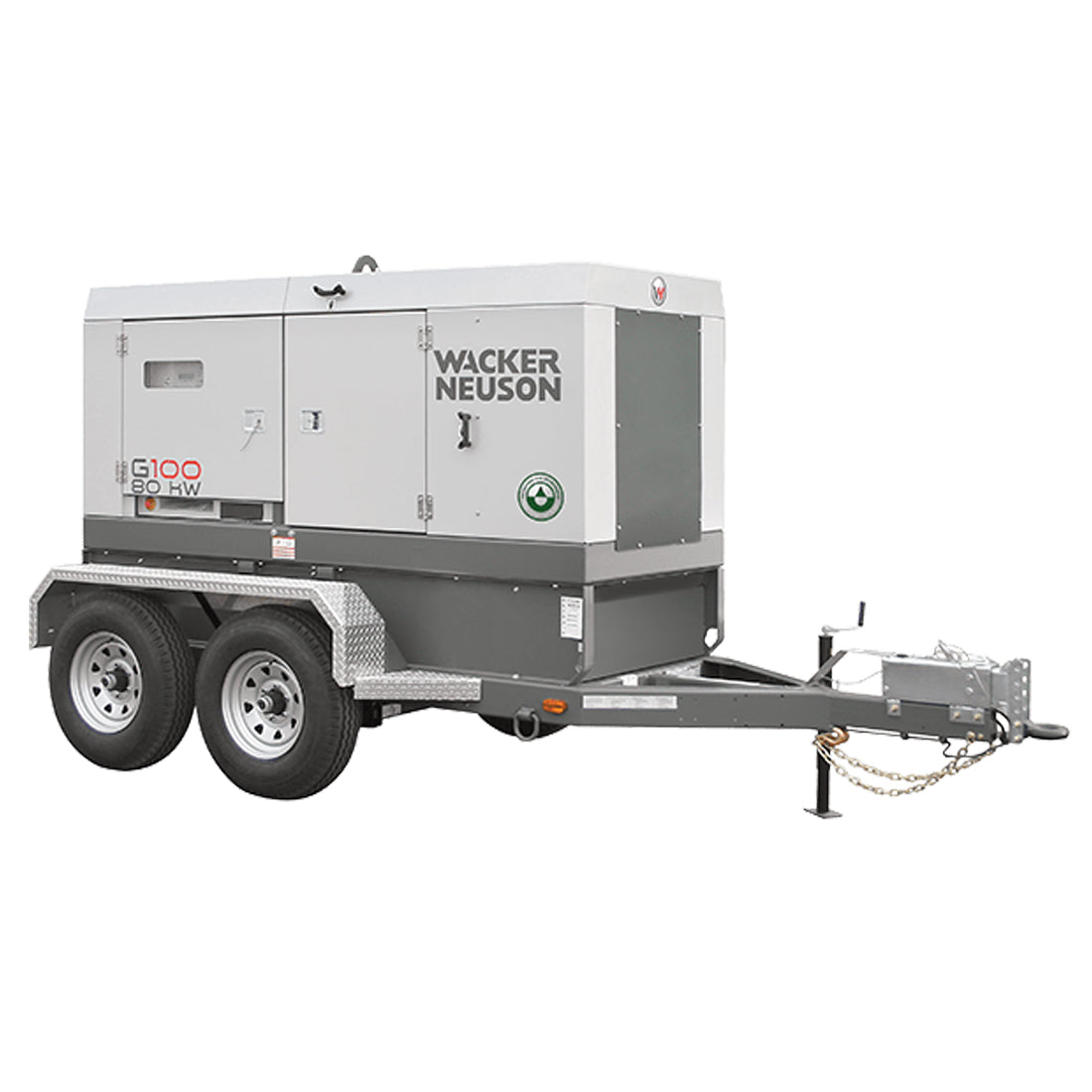

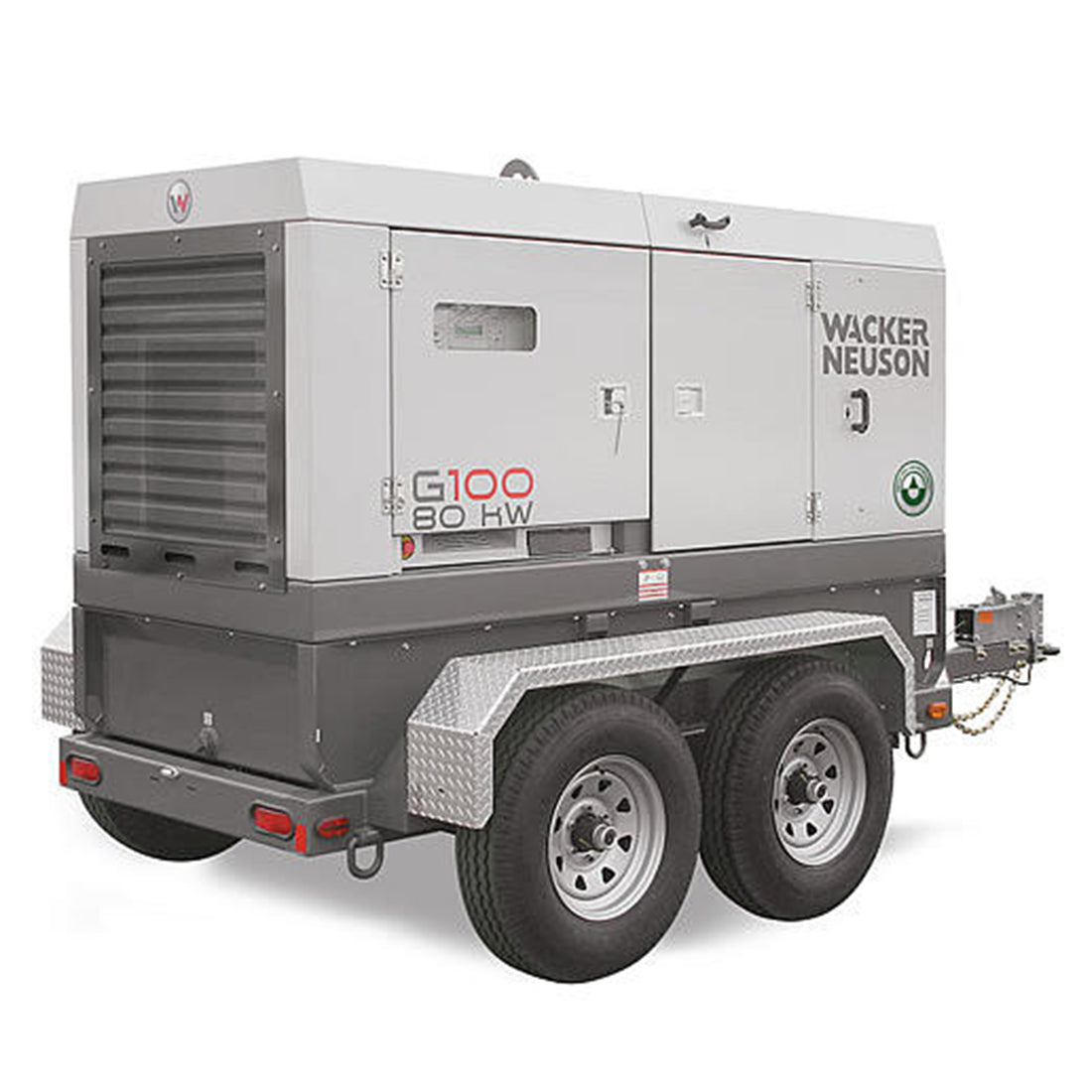

Wacker Neuson 5100045555 Generator G100 Custom T4

SKU 5100045555
Availability:
Typically available in 5-10 business days. Manufacturer lead times may vary.
Original price $106,836.99 - Original price $106,836.99
Original price
$106,836.99
$106,836.99 - $106,836.99
Current price $106,836.99

The G100 is a durable, sound attenuated diesel generator that provides mobile prime power for larger construction, commercial, industrial, special event and emergency management applications where quiet, reliable power is needed. The digital controller monitors and protects the generator and engine. The standard environmentally friendly features include a 115% fluid containment, crankcase oil vapor recovery system, no mess oil and radiator drain hoses and fast fuel fill system that minimizes fuel spill potential.

Features:

  • Brushless alternators with separate excitation and AVR (Automatic Voltage Regulation) provide excellent motor starting and an enhanced ability to run non-linear loads.
  • Simple, one switch start for easy operation and easy voltage selection using a lockable voltage selection switch.
  • Rated power up to 120°F (49°C) for optimum performance even in hot climates. For cold climates, add many of the factory installed options like the cold weather package or battery chargers, etc.
  • Easy to use keypad for service diagnostics; engine diagnostic codes display on the LCD readout simplifying engine troubleshooting, fuel consumption, percentage load, kW per hour and other data available.
Specifications
Model G100 Custom T4
Operating Weight (Skid) 6,137 lbs.
Operating Weight (Trailer) 6,069 lbs.
Trailer (Length x Width x Height) 176 x 80 x 90 in.
Trailer coupling Type Pintle
Standby Output 88 kW
Prime Output 80 kW
Voltage 3 Phase 240/480 V
Current 3 Phase (Prime) 240/120 A
Current 1 Phase (Prime) 120/240 A
Main Circuit breaker 250 A
Frequency 60 Hz
Power factor 1 Phase 1 cos Φ 1~
Power factor 3 Phase 0.8 cos Φ 3~
Sound level (LwA) at Prime (23 ft / 7 m) 69.4 dB(A)
Receptacles -20 Amp GFI Duplex 2
Receptacles -50 Amp Twist Lock 3
Engine / Motor Type John Deere; Liquid-Cooled, 4 Cylinders
Emissions Certified Tier 3
Operating performance SAE J1995, ISO 8528-1 133 hp
Displacement 275 in³
At rpm 1,800 rpm
Fuel Type Diesel
Coolant capacity 23.8 US qt.
Engine Oil capacity 15.9 US qt.
Fuel consumption (Prime Load) 6.2 US gal/h
Fuel Tank Capacity 199.8 US gal
Quantity (Battery) 1
Battery 12V
Frequency (Generator Speed) 60 Hz
Runtime at 100% Prime Load 29.7 h
