Scag Patriot SPZ61H-23FX 61 In. Zero Turn Mower
by SCAG
SKU SPZ61H-23FX
Availability:
Low stock
Original price
$10,249.00
-
Original price
$10,249.00
Original price
$10,249.00
$10,249.00
-
$10,249.00
Current price
$10,249.00
Scag’s cutter decks have always given our competition a serious case of deck envy. Many try to duplicate the performance, but none can match it. The Hero™ cutter deck is an outstanding performer and delivers beautiful results.
Scag’s Hero™ Cutter Deck provides the top line power, precision and performance professionals and homeowners’ demand. This extra-strong, fully fabricated, and welded deck features “maintenance-free” aluminum spindles for years of worry-free performance
Features:
- Strength — Scag’s tough cutter-blade spindles and Dual-Plate construction ensure solid performance and long life.
- Productivity — An extra-large discharge opening enhances discharge for even clipping dispersal.
Specifications
| GENERAL | |
|---|---|
| Total Fuel Capacity | 6.5 gallon |
| Drive Tires | 24" x 12"-12" |
| Caster Tires | 13" x 6.5"-6" |
| Seat | Torsion-spring suspension seat |
| DRIVE SYSTEM | |

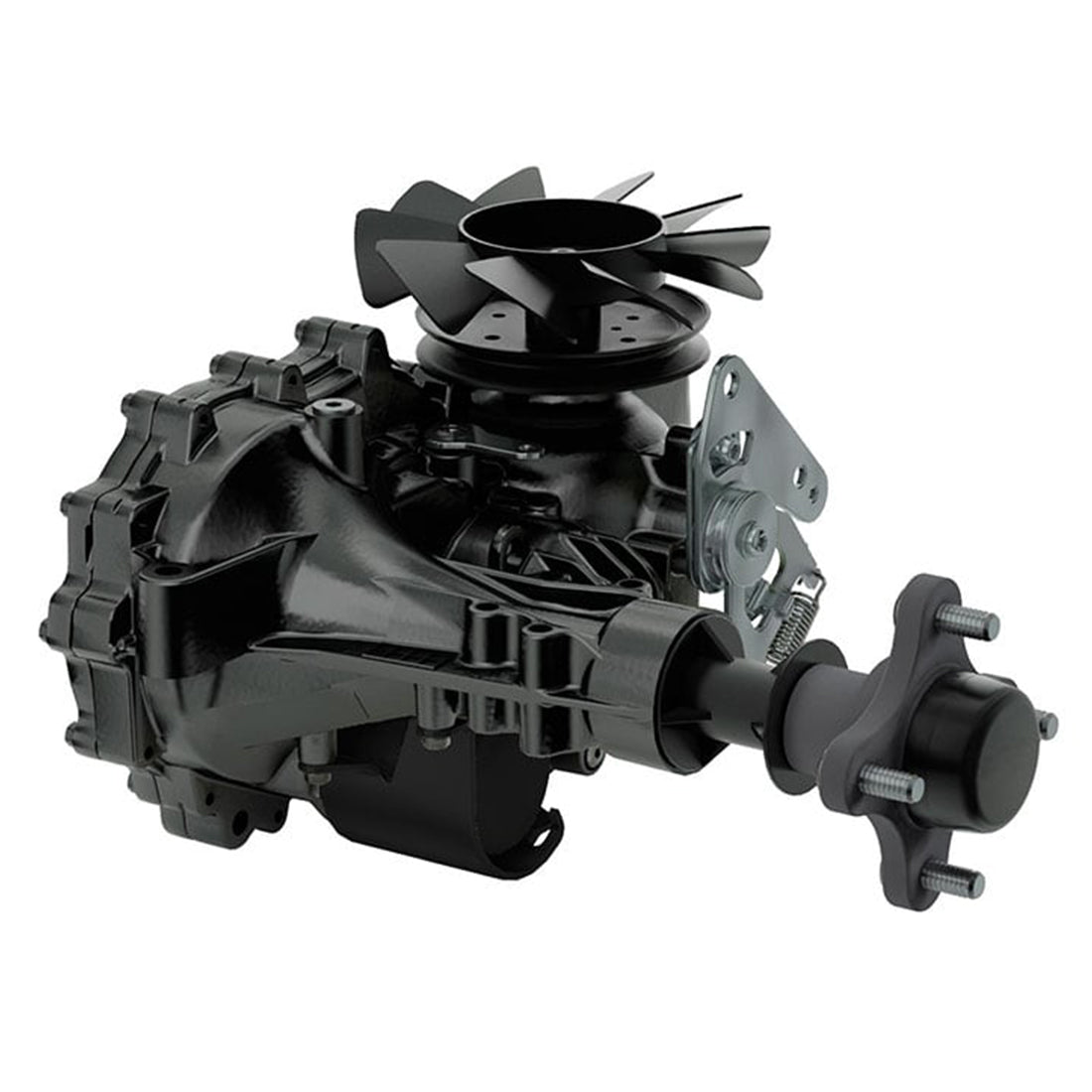

| Drive System Type | Hydro-Gear ZT3400 Transaxle |
| ZT3400 Internal Pump | 12 cc |
| Motors Internal Motor | 16 cc |
| Forward Ground Speed | 10 mph |
| Reverse Ground Speed | 5 mph |
| Parking Brake | Foot-operated pedal |
| DECK | |
| Cutting Width | 61" |
| Type | Hero Cutter Deck |
| Cutting Height | 1.5" to 5" in .25" increments |
| Deck Lift | Foot-operated pedal |
| Construction | Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles. |
| Spindles | Aluminum housing with sealed ball bearings. |
| Blade Engagement | Ogura GT2 (108 ft lb). Adjustable air-gap for extended life. |
| PRODUCT DIMENSIONS | |
| Length | 79" |
| Width (chute down) | 73.5" |
| Width (chute in transport position) | 62" |
| Height (ROPS Folded) | 47" |
| Height (ROPS up) | 61" |
| Weight | 952-956 lbs. |
