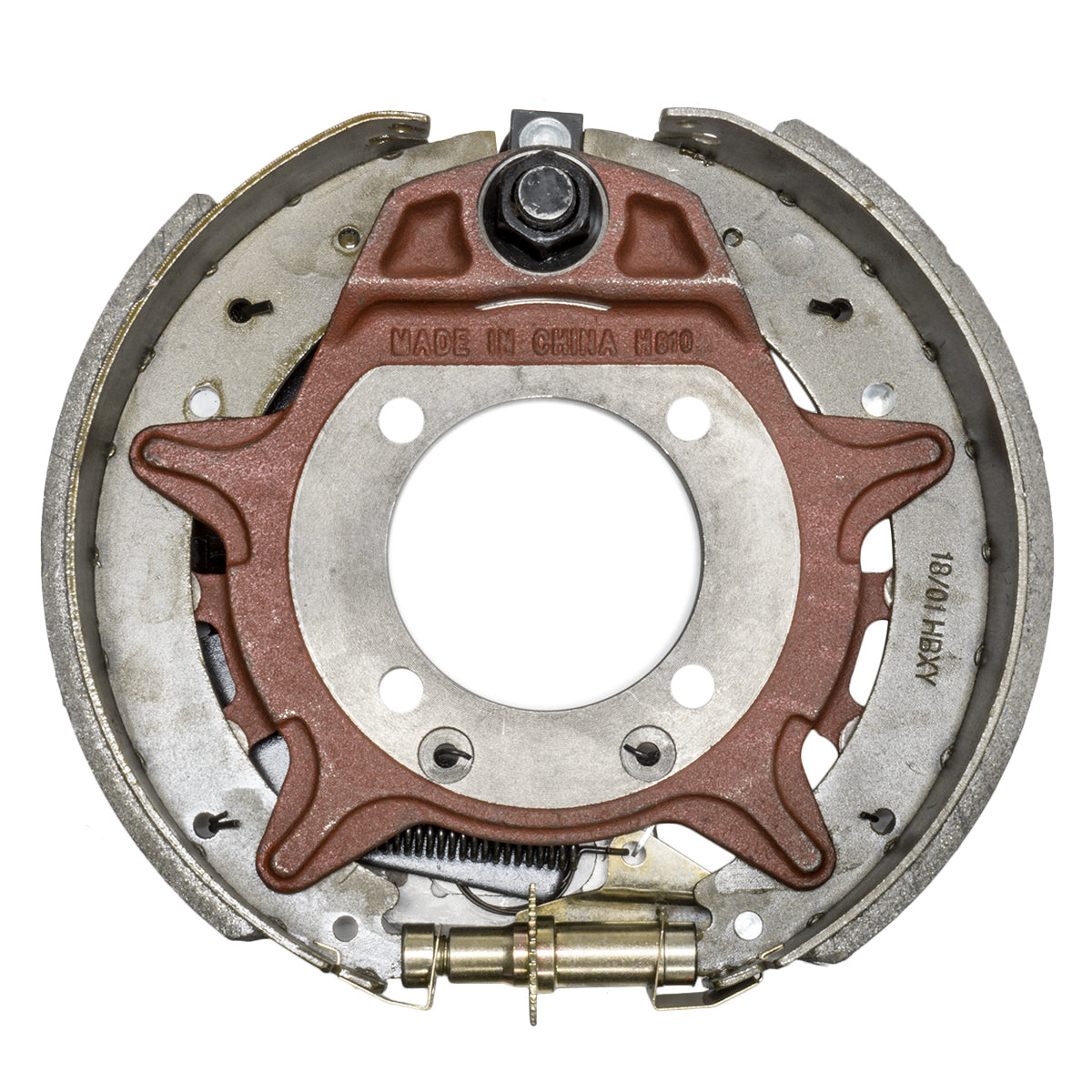

12.25 In. x 3.375 In. Electric Trailer Brakes Left & Right Kit 8,000 9,000 lbs Axle
(1 Left + 1 Right)
Otherwise known as "loaded", brake assembly that comes pre-assembled and ready to be mounted onto your flange with existing bolts and nuts. This brake uses a forward self-adjusting feature which adjusts the brakes on each forward stop. As the shoes wear on the drums, the adjuster arm rotates the screw assembly at the bottom of the brake, expanding the shoes to fill in the gap. The 4-hole flange pattern can be found on some 8,000 and 9,000 lbs. AL-KO and Dexter axles.
Product Features:

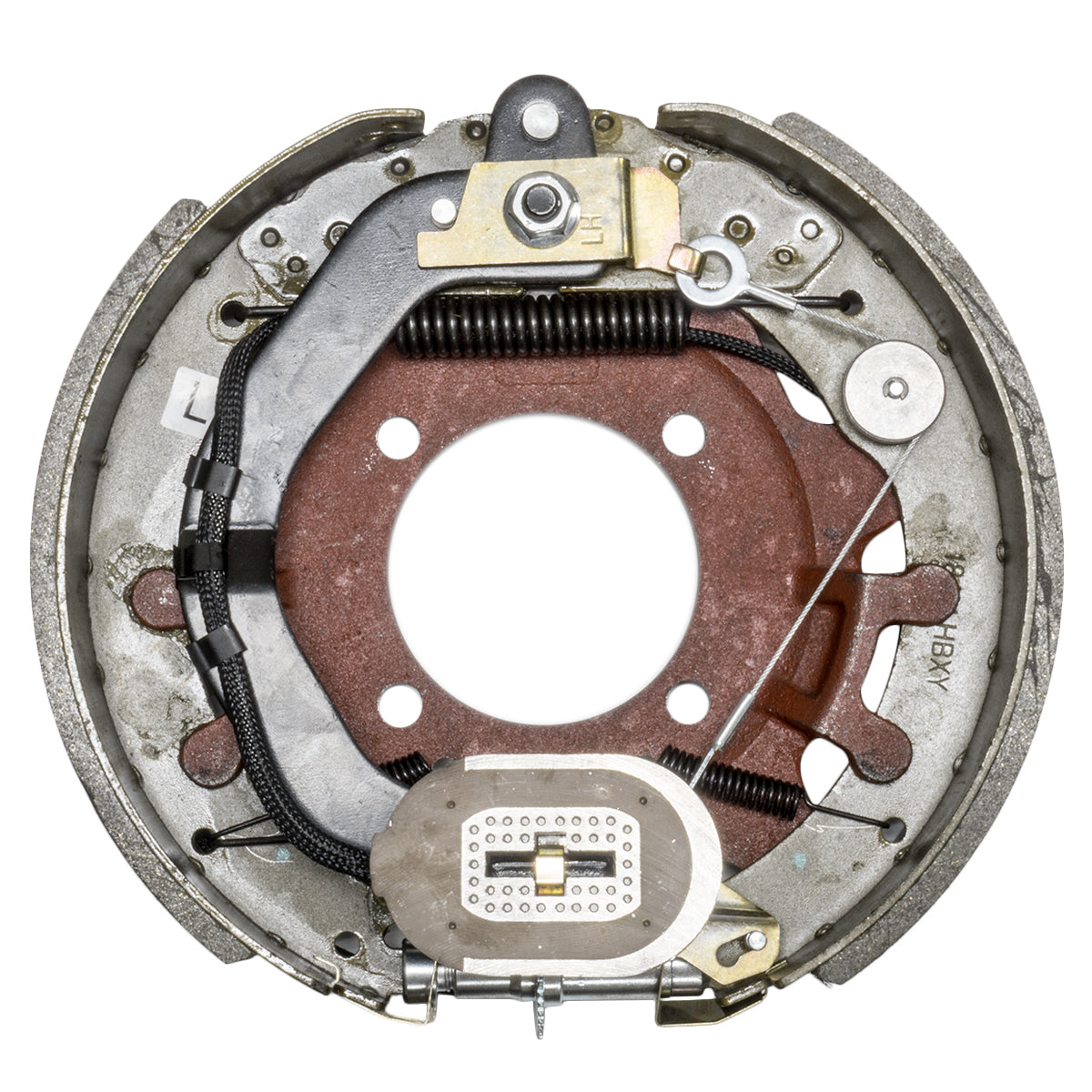

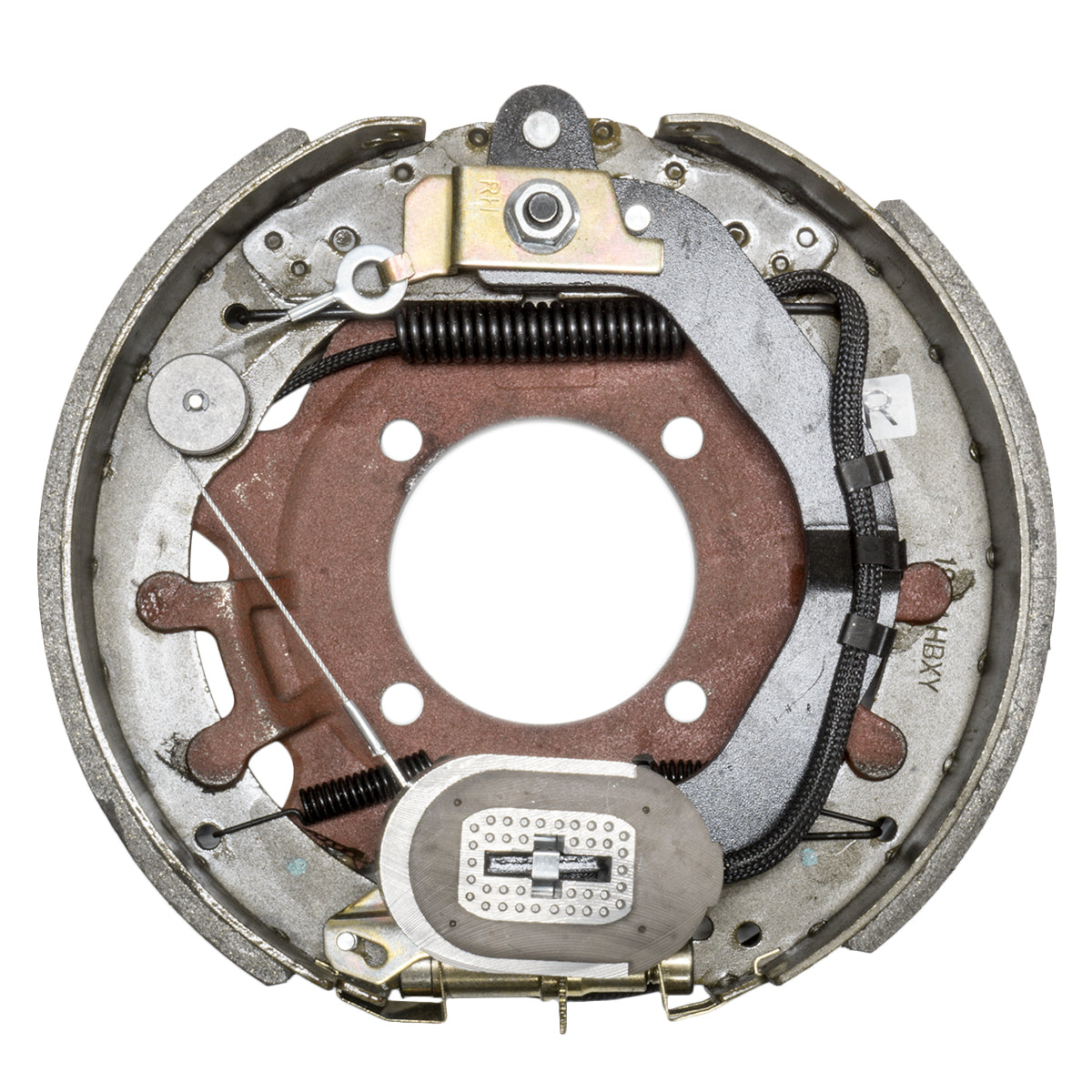

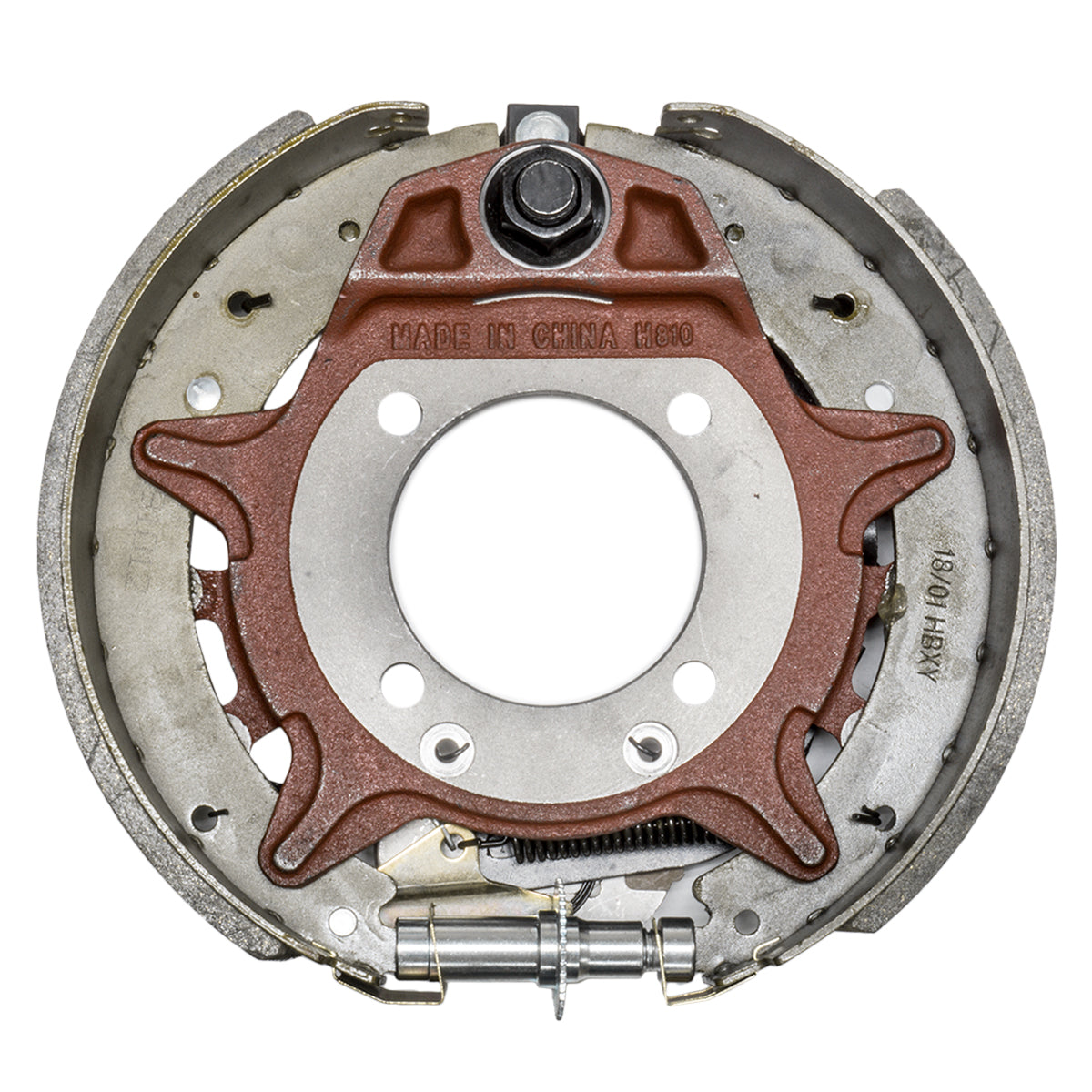

One left hand brake assembly & One right hand brake assembly
Loaded backing plate is ready to mount
Mounting hardware not included
Brake controller required for operation (sold separately)
Electric brake systems offer more user control compared to hydraulic systems
Brake lines and brake actuators not needed
Simple and quick installation
Has more moving parts making maintenance cheaper
Forward Self-Adjusting feature
Shoes will automatically adjust every time braking is applied for optimal performance
Non-polarized magnet allows either wire to be used as the ground or power supply
Pre-spliced magnet wires
Specifications
Left Hand (Driver's Side) Replaces OEM#: Dexter 23-434 (023-434, K23-434)
Right Hand (Passenger's Side) REPLACES OEM#: Dexter: 23-435 (023-435, K23-435)
Fits 9,000 to 10,000 lbs. axles with AL-KO/Hayes 4-hole mounting flanges
Brake Size: 12.25" x 3.375" (3 3/8")
Individual Brake Capacity: 4,500 lbs. - 5,000 lbs.
Axle Capacity: 9,000 lbs. - 10,000 lbs., 4-Hole Flange
Wheel Size: 15" and up
Shoe Adjustment: Self-Adjusting
***NOTE: Electric brakes should not be used on marine applications***
