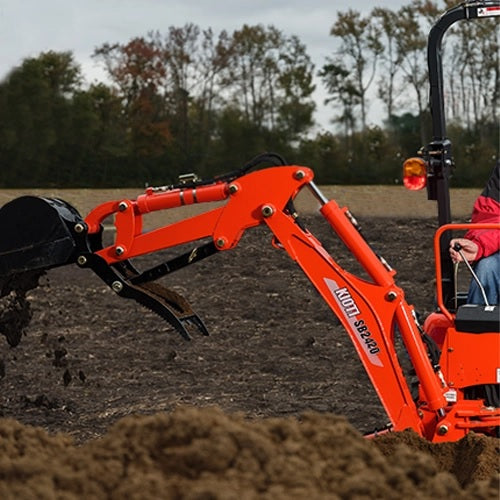

Kioti SB2420 Backhoe
SKU SB2420
by Kioti
KIOTI backhoes deliver trenching up to 94” deep with a bucket dig force of up to 3,748 pounds. The backhoes feature sub-frame mounting, self-contained hydraulics, two-lever hydraulic controls, hydraulic stabilizers, transport lock and a variety of buckets.
Features:
• Four point mounting frame.
• Responsive two-lever hydraulic control with exceptional feathering characteristics.
• Anti-drop load-checks.
• Entire backhoe except for mounting frame is quick-detached from tractor.
Specifications
| Digging Depth (two foot flat bottom) | 72.8 in. (1,850 mm) |
| Reach (From center line of Swing Pivot) | 105.7 in. (2,684 mm) |
| Loading Height (Bucket at 60°) | 59.1 in. (1,500 mm) |
| Maximum Leveling Angle | 8° |
| Swing Arc | 150° |
| Transport Height (Maximum) | 68.1 in. (1,729 mm) |
| Transport Overhang | 41.3 in. (1,050 mm) |
| Bucket Rotation | 165° |
| Stabilizer Spread (Down Position) | 78 in. (1,981 mm) |
| Stabilizer Spread (Up Position) | 54 in. (1,372 mm) |
| Angle of Departure | 20° |
| Shipping Weight (Less bucket) | 635 lbs. (288 kg) |
| Bucket Digging Force | 2,105 lbs. (955 kg) |
| Dipperstick Digging Force | 1,183 lbs. (537 kg) |
| Operating Pressure | 1,885 psi (130 bar) |
Not Available To Ship
However, it is available for in-store purchase. Take advantage of our in-store deals and competitive pricing. Contact or visit one of our many Russo Power Equipment locations today!
