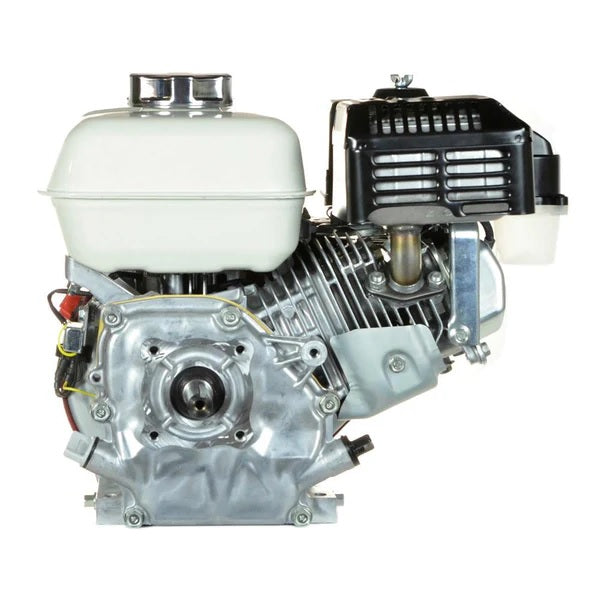

Honda GX200UT2QC9 3/4" PTO Horizontal 6.5HP Engine
The Honda 196cc GX Series OHV commercial-grade engine is designed for the most demanding commercial applications. It has set an industry standard for reliability and durability. Overhead Valve design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides longer service life. The GX is reliable, easy starting and quiet running. Meets EPA and CARB emission levels standards. This legendary engine has earned the reputation as the preferred engine for construction equipment. Common applications include pressure washers, compressors, go-karts, log splitters and chipper/shredders.
Features:
- Precision camshaft design for precise valve timing, optimal valve overlap and better fuel economy
- OHV design for increased efficiency and optimal power transfer
- High compression ratio for better fuel efficiency
- Low vibration from precision-engineered components
- Ball bearing-supported crankshaft for greater stability
Specifications
Engine Displacement | 196 cc |
Engine Type | GX Series OHV commercial-duty |
Start Type | Recoil |
Shaft Diameter | 3/4 in |
Shaft Length | 2.43 in |
Compression Ratio | 8.5:1 |
Bore x Stroke | 2.7 x 2.1 inches |
Air Cleaner Type | Dual Element |
Fuel Tank Capacity | 3.3 qt |
Oil Capacity | 0.63 qt |
Max RPM | 3600 |
Dimensions L x W x H | 12.62 x 14.81 x 13.18 inches |
