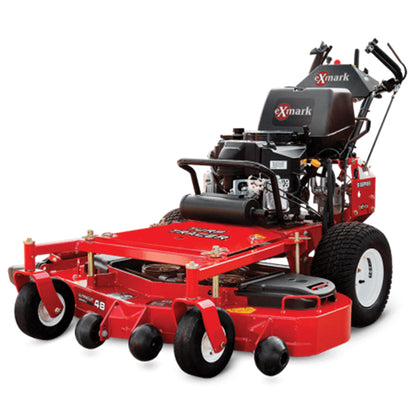

Exmark Turf Tracer S-Series TTS541GKA52300 52 In. Walk-Behind Mower
Exmark Turf Tracer S-Series, you can choose from four rugged engines including the eco-friendly, Electronic Fuel Injection (EFI), propane Kohler® PCV680. Then, match that power to cutting decks in 36-, 48-, and 52-inch widths. In whatever configuration you choose, you’ll get our patented Enhanced Control System (ECS) for ultimate operator comfort. Which translates to day-long operator productivity.
Features:
- New Electric Clutch
- Hour Meter Comes Standard
- An eco-friendly, lower cost fuel reduces operating expenses versus typical gas-powered mowers
- Standard 9” x 3.5-4” smooth-tread, semi-pneumatic front caster tires virtually eliminate tire repair
- Patented Enhanced Control System (ECS)
- Full-floating UltraCut™ deck. Side discharge standard, with molded discharge chute and option to bag or mulch
Specifications
Equipment:
Steering Control: Hydro drive with Enhanced Control System (ECS), forward/reverse, left/right or zero-turn
Casters: .38" thick caster yoke arms
Front Caster Tires: 9 x 3.5-4, smooth-tread, semi-pneumatic.
Drive Tires: 16 x 7.5-8, 4-ply Turf Master®
Safety Package: Operator Presence Controls (OPC). Operator must have speed control lever in neutral and blades disengaged to leave operator’s position without stopping engine
Parking Brake: Lever-actuated mechanical compression.
Electrical: No battery, recoil start w/ 5-amp clutch coil
Standard Features: Engine hour meter
Power Components:
Engine Model: FS541V
Engine Brand: Kawasaki
Engine Series: V-Twin
Engine Speed: 3,600 rpm
Air Filter: Standard Engine Manufacturer's air filter
Drive Description: Twin Hydro-Gear variable-displacement pumps and twin high-efficiency Parker/Ross wheel-drive motors with 1\" (2.54 cm) tapered shafts.
Speed: Infinitely variable speed selection from 0– 6.2 mph (10 kmph) forward, 0–2.2 mph (3.5 kmph) reverse
PTO Engagement: Electromagnetic 105 ft-lbs clutch.
Fuel Capacity: 5-gallon (18.9-L) fuel tank
Drive Wheel Release: Allows unit movement without engine running.
Deck Lift: Manual lift with hairpin from hole to hole for position adjustment.
Fuel System: Carbureted
Engine Displacement: 603
Engine HP: 15*
Drive: Hydro-Drive
Fuel Indicator: None
Carb Compliant: No
Fuel Type: Gas Carbureted
Engine Spec: _S29
Decks:
Deck Style: Floating Deck
Deck Style Description: Full-floating Ultra-Cut Series 3, side discharge standard, with molded discharge chute and option to bag or mulch
Width / Cutting Deck: 52"
Deck Construction: 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge welded spindle mounting locations for improved strength.
Cutting Heights: 1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments.
Blade Spindles: No maintenance, sealed and non-greaseable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver
Blade Tip Speed: Approximately 18,500 fpm.
Blades: 3 Blades at 18.00" Length
Dimensions:
Width: 64.3 in
Length: 75.9 in
Height: 42.0
