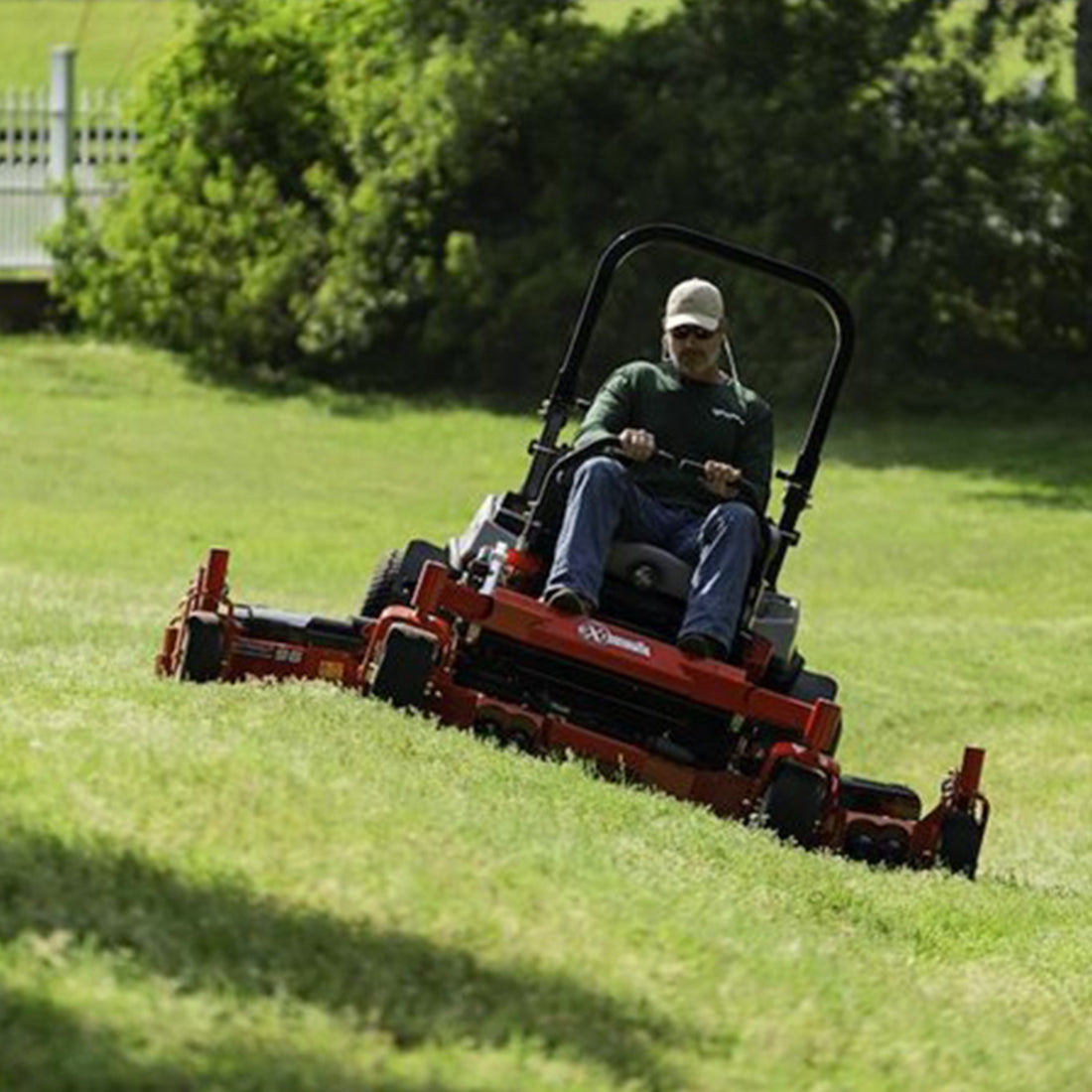

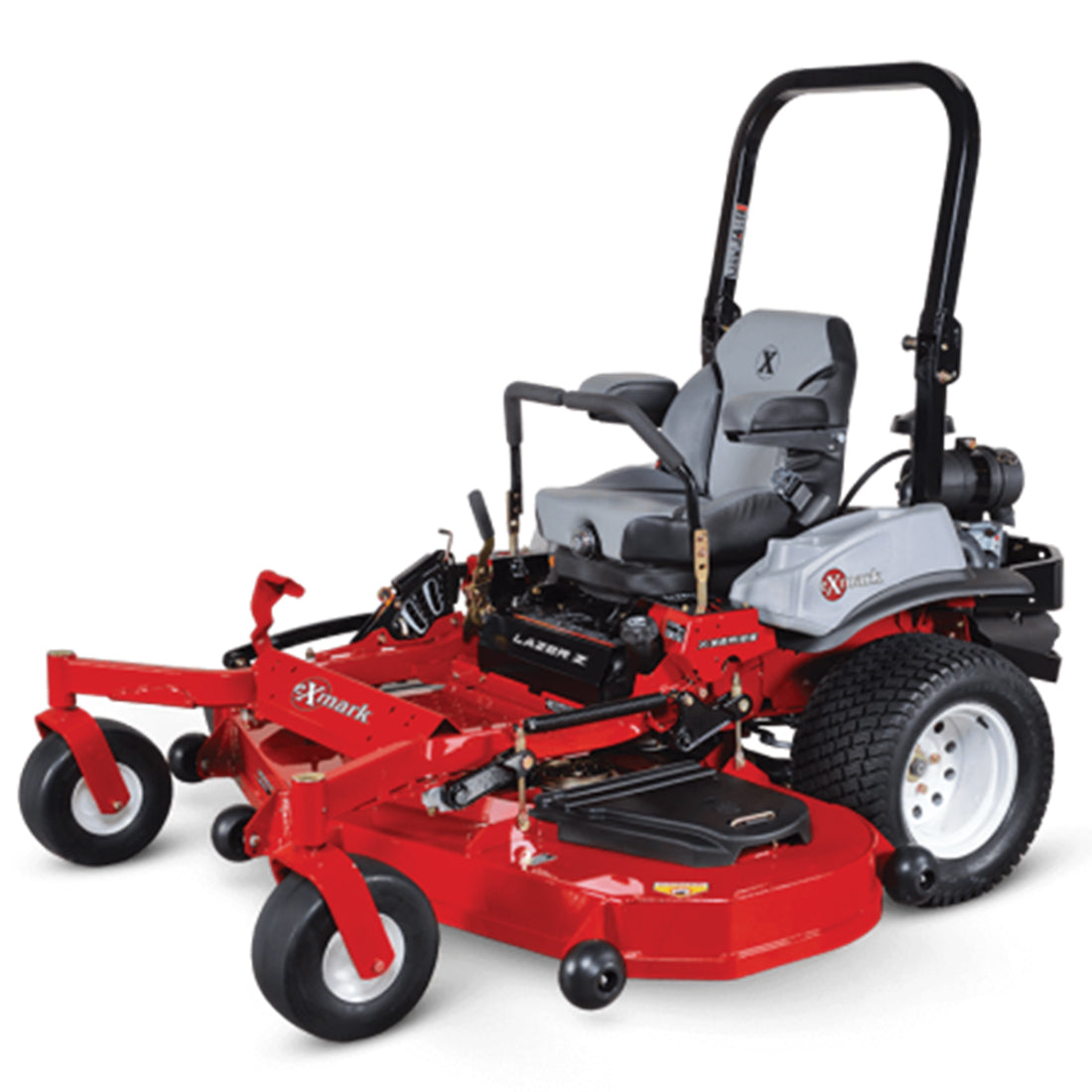

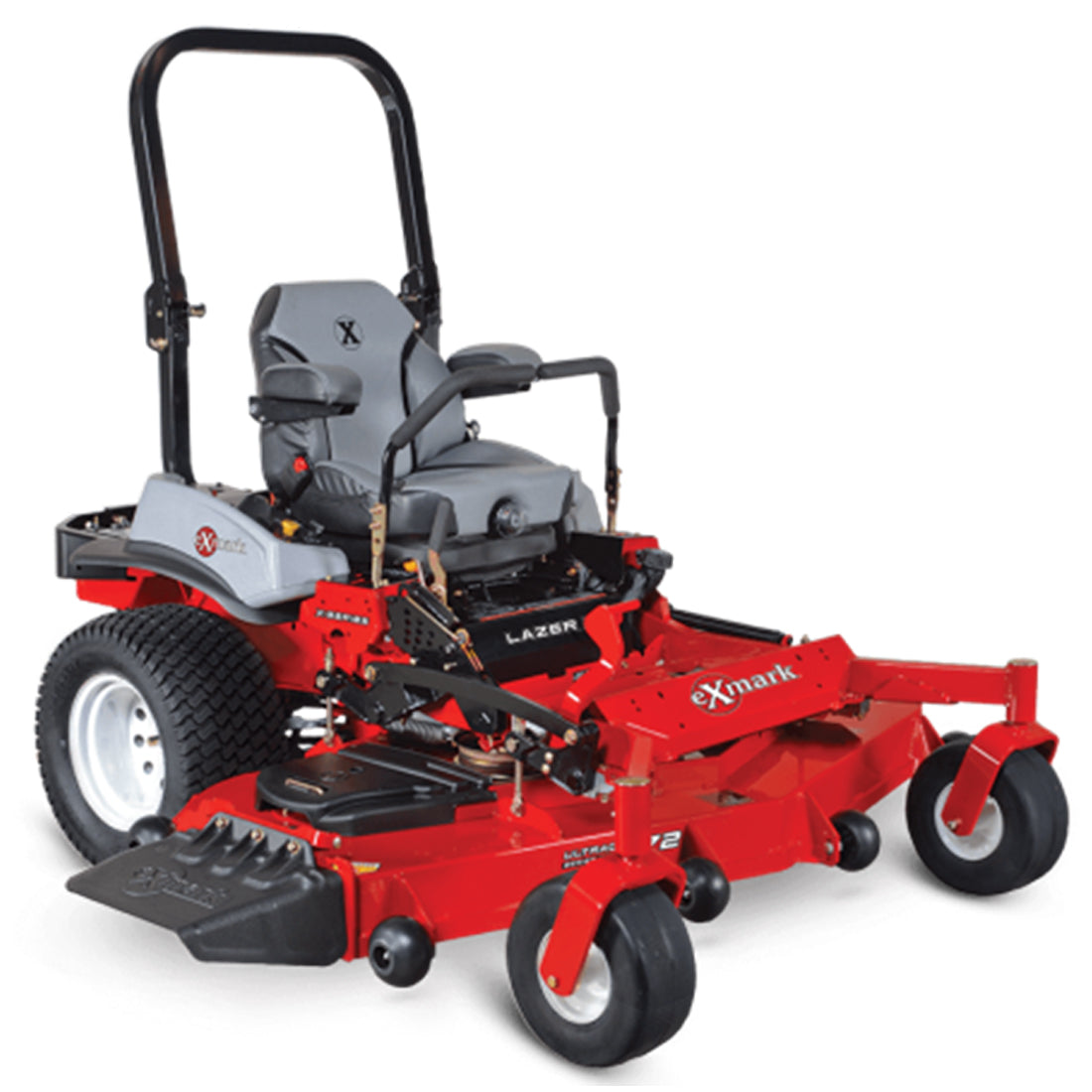

Exmark Lazer Z X-Series LZX993EBV606X1 60 In. Zero Turn Mower
by Exmark
SKU LZX993EBV606X1
Availability:
in stock
Original price
$21,311.00
-
Original price
$21,311.00
Original price
$21,311.00
$21,311.00
-
$21,311.00
Current price
$21,311.00
Exmark’s X-Series features the UltraCut™ Series 6 deck available in 60-, 72-, and 96-inch cutting widths. Whatever combination you choose, operators will ride in unrivaled comfort thanks to our unique seating system. So, if you’re looking for a top-of-the-line mower, the Lazer Z X-Series should be at the top of your list.
Features:
Features:
- UltraCut Series 6 Deck
- Patented RED Technology
- Higher ground speeds with 16cc drive system and more power with larger engine displacements for improved productivity.
- Vanguard Oil Guard System increases mower uptime and decreases necessary in-season maintenance by extending oil change intervals to 500 hours, while also lowering engine oil temperature by 20-30 degrees
- Ergonomically advanced seat system featuring our exclusive Iso-Mount Seat Isolation System
- Deck and hydro belt can be installed without using any tools
Specifications
| Model Number | LZX993EBV606X1 |
| EQUIPMENT | |
| Standard Features | Engine hour meter and cup holder |
| Drive Tires | 24 x 12.0-12, 4-ply Turf Master® |
| Tractor Frame | Unibody, welded, heavy-duty 1.5" x 3" tubular steel. |
| Steering Control | Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions |
| Front Caster Tires | 13 x 6.5-6, smooth-tread, semi-pneumatic |
| Parking Brake | Lever-actuated disc brake |
| Seat | Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up |
| Electrical | AGM, 12-Volt battery with 20-amp alternator |
| Onboard Intelligence | 0 |
| Blade Spindles | No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 30mm (1.18") diameter spindle shaft, double row bearings, top and bottom, and splined blade driver |
| POWER COMPONENTS | |
| Engine Brand | Briggs & Stratton |
| Engine Model | M61E8 |
| Engine Displacement | 993 |
| Engine Series | Vanguard Oil Guard |
| Fuel System | Electronic Throttle Body |
| Engine Speed | 3,650 RPM |
| Air Filter | Heavy-duty canister air filtration system |
| Fuel Type | Gas EFI |
| Fuel Capacity | 12-gallon (45.4-L), single fuel tank with single fill location |
| Fuel Indicator | Yes - electronic Sender |
| Drive | Hydro-Drive- Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, shock valve, 1.7-quart integrated reservoir, spin-on filter and heavy-duty components. 16 cc pumps and 17.1 cubic inch motors |
| Speed | Infinitely variable speed selection from 0–11.5 mph (18.5 kmph) forward, 0–7.0 mph (11.3 kmph) reverse |
| Deck Lift | Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position |
| Safety Package | Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators |
| ROPS | 2-post foldable ROPS standard with seat belt and latch |
| PTO Engagement | MagStop Electromagnetic 250-ft-lb clutch with spot brake |
| Drive Wheel Release | Allows unit movement without engine running |
| Casters | .50" thick caster yoke arms |
| DECK | |
| Width / Cutting Deck | 60" |
| Deck Style | Full-floating UltraCut Series 6 with heavy-duty spindle. Side discharge standard with the option to bag or mulch |
| Deck Construction | 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge formed and welded spindle mounting locations for improved strength and reduced weight |
| Blade Tip Speed | Approximately 18,500 fpm |
| Cutting Heights | 1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from operator’s seat |
| Blades | 3 Blades at 20.50" Length |
| DIMENSIONS | |
| Width | 72.8" |
| Length | 83.1" |
| Height | 70.5" |
| Curb Weight | 1372 |
