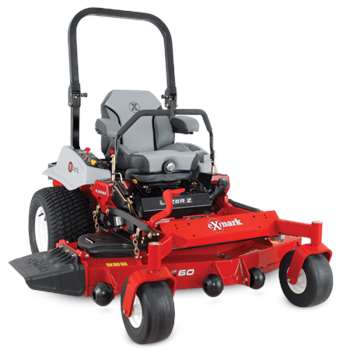

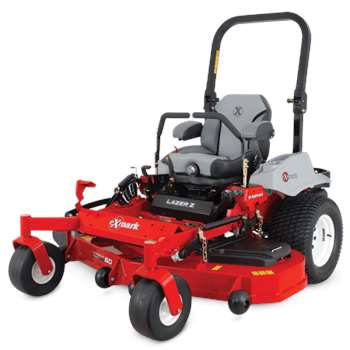

Exmark Lazer Z S-Series LZS801GKA72RA1 72 In. Zero Turn Mower

by Exmark
SKU LZS801GKA72RA1
Availability:
Typically available in 5-10 business days. Manufacturer lead times may vary.
Original price $18,980.00 - Original price $18,980.00
Original price
$18,980.00
$18,980.00 - $18,980.00
Current price $18,980.00

With the top-rated Lazer Z S-Series of zero-turn rider mowers, you can choose from Kawasaki and Kohler engines, including an eco-friendly, Electronic Fuel Injection (EFI) option. UltraCut™ Series 4 cutting deck sizes available include 52, 60, or 72 inches. And for increased durability, the deck is made of a 10-gauge steel, formed, and continuously seam-welded top and a 7-gauge side skirt. All with welded spindle mounting sites and full-floating 4-point suspension with four adjustable anti-scalp rollers. Select Lazer Z S-Series models offer Smart Controller. This easy-to-use interface has a wealth of user data like fuel level, interlock status, PTO and total hours, maintenance reminders, and machine health status. Like our full lineup of zero-turn mowers, the Lazer Z S-Series offers unparalleled durability and precision maneuverability.

Features:

  • Less Time At The Pump- Gas-powered S-Series models have a single 12-gallon tank with one fill location.
  • On-Board Diagnostics- Check vital functions at a glance on the digital screen. An electronic fuel gauge with low fuel warning on all Lazer Z units, battery voltage warning, hour meter and OPC safety switch monitoring make troubleshooting easy.
  • Ultracut Series 4 Deck- This full-floating deck uses maintenance free spindle with a splined blade driver to stop bolt tightening on impacts. And, our patented bearing design on idler arm pivots only needs annual service.
  • Built to Last- Want tough? Try a 10-gauge, formed and continuously seam-welded top, and a 7-gauge side skirt. All with welded spindle mounting sites. And, full-floating, 4-point suspension with four adjustable anti-scalp rollers.
  • Fewer Grease Points- With just four grease points that only need annual greasing, the Lazer Z delivers maximum performance with minimum maintenance. Greaseless spindles and only four grease points on the entire machine.
Specifications
Starter Electric
Steering Control Hydraulically dampened twin levers; adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions.
Caster Forks .50" thick caster yoke arms.
Front Caster Tires 13 x 6.5-6; smooth-tread; semi-pneumatic.
Drive Tires 24 x 12.0-12; 4-ply Turf Master
Parking Brake Lever-actuated disc brake.
Tractor Frame Unibody; welded; heavy-duty 1.5" x 3" tubular steel.
Blade Spindles No maintenance; sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver.
Electrical 12-volt battery with 15-amp alternator.
Standard Features Engine hour meter and cup holder
Seat Deluxe; two-tone; bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.
Transmission Speeds Infinitely Variable
Engine Brand Kawasaki
Engine Model FX801V
Engine Displacement 852
Transmission Hydrostatic
Speed Infinitely variable speed selection from 0–10.0 mph (16 kmph) forward; 0–6.0 mph (9.7 kmph) reverse.
Engine Series V-Twin
Engine Speed 3750 RPM
Drive Hydro-Drive
Engine Spec FX801V-ES19-R
Fuel Capacity 12-gallon (45.4-L); single fuel tank with single fill location.
Air Filter Heavy-duty canister air filtration system
Drive Description Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses; integrated cooling fans; shock valve; 1.7-quart integrated reservoir; spin-on filter and heavy-duty components. 12 cc pumps and 14. 5 cubic inch motors.
PTO Engagement MagStop electromagnetic 200-ft-lb clutch with spot brake
Fuel Type Gas Carbureted
Fuel Indicator Yes - electronic Sender
Drive Wheel Release Allows unit movement without engine running.
Deck Lift Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles; or place in transport position.
Carb Compliant No
Safety Package Operator Presence Controls (OPC) and drive system interlock; with safety interlock system indicators.
ROPS 2-post foldable ROPS standard with seat belt and latch.
Deck Style Floating Deck
Deck Style Description Full-floating UltraCut Rear Discharge Deck. Rear-discharge standard with option to mulch.
Width / Cutting Deck 72"
Deck Construction 7-gauge high strength alloy top that is formed and continuously seam welded; with 7-gauge high strength alloy side skirt.
Cutting Heights 1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from operator’s seat.
Blade Tip Speed Approximately 18500 fpm.
Blades 3 Blades at 24.50" Length
Width 78.2 in. (198.6 cm)
Height 70.5 in. (179.1 cm)
Length 86.1 in. (218.7 cm)
Curb Weight 1359
