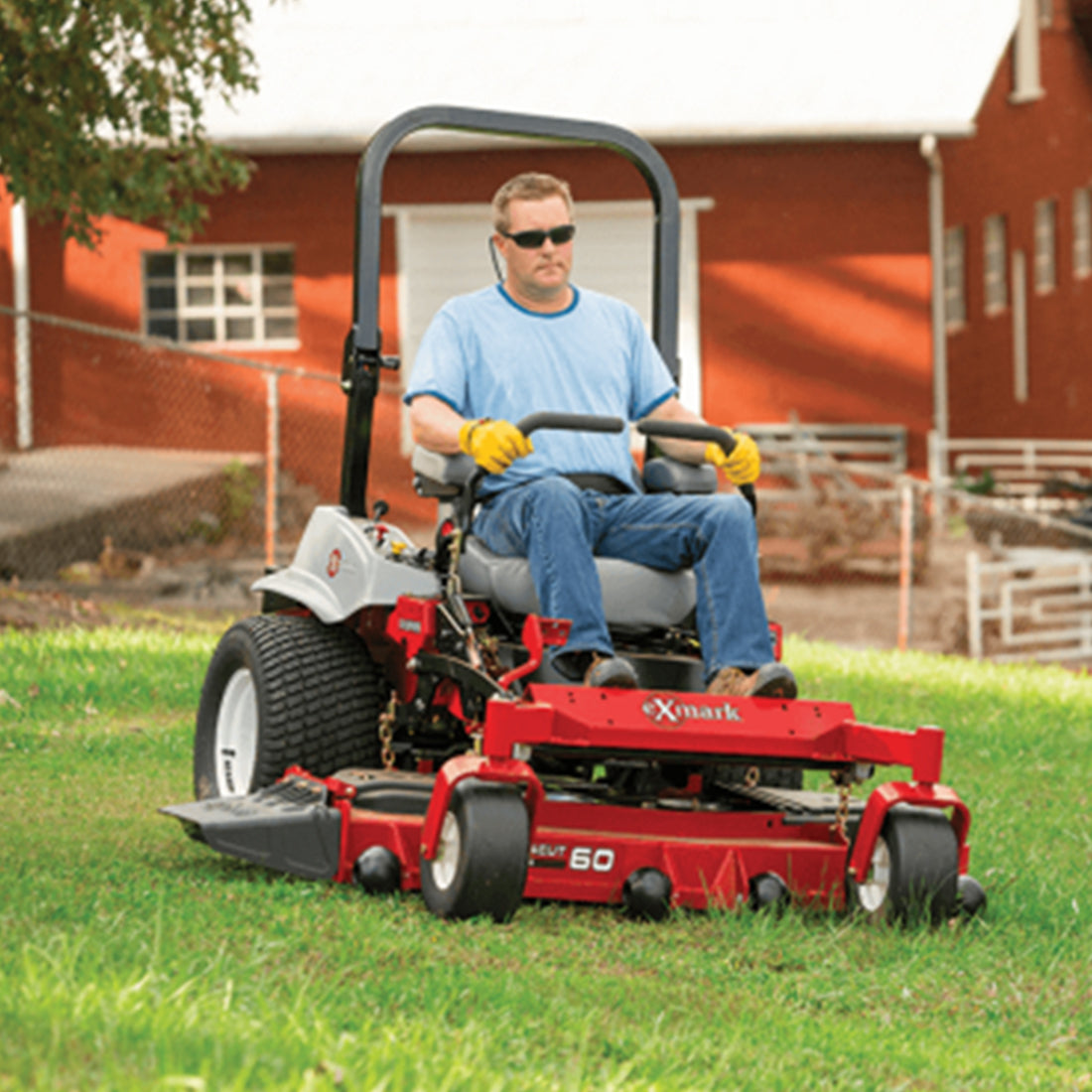

Exmark Lazer Z S-Series LZS801CKA60RA1 60 In. Zero Turn Mower
With the top-rated Lazer Z S-Series of zero turn riders, you can choose from eight different engines, including an eco-friendly, Electronic Fuel Injection (EFI), propane option. Four UltraCutâ„¢ Series 4 cutting deck sizes are available in 52, 60 or 72 inches. Want tough? Try a 10-gauge, formed and continuously seam-welded top and 7-gauge side skits. All with welded spindle mounting sites and full-floating 4-point suspension with four adjustable anti-scalp rollers. Select Lazer Z S-Series models offer Smart Controller. This easy-to-use interface has a wealth of user data like fuel level, interlock status, PTO and total hours, maintenance reminders and machine health status.
Features:
- This, in combination with lower propane cost reduces operating expenses versus typical gas-powered mowers
- Try a 10-gauge, formed and continuously seam-welded top, and a 7-gauge side skirt. All with welded spindle mounting sites
- And, full-floating, 4-point suspension with four adjustable anti-scalp rollers
- Fewer Grease Points
- Deck and hydro belt can be installed without using any tools
- Gas-powered S-Series models have a single 12-gallon tank with one fill location
- Check vital functions at a glance on the digital screen
- This full-floating deck uses maintenance free spindle with a splined blade driver to stop bolt tightening on impacts
Specifications
Equipment:
Blade Spindles: No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver
Drive Tires: 23 x 9.5-12, 4 ply Turf Master®
Tractor Frame: Unibody, welded, heavy-duty 1.5" x 3" tubular steel
Steering Control: Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions
Front Caster Tires: 13 x 5.0-6, smooth-tread, semi-pneumatic
Parking Brake: Lever-actuated disc brake
Seat: Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up
Electrical: 12-volt battery with 15-amp alternator
Standard Features: Engine hour meter and cup holder
Power Components:
Engine Brand: Kawasaki
Engine Model: FX801V
Engine Displacement: 852
Engine Series: V-Twin
Engine Speed: 3,750 RPM
Air Filter: Heavy-duty canister air filtration system
Fuel Type: Gas Carbureted
Fuel Capacity: 12-gallon (45.4-L), single fuel tank with single fill location
Fuel Indicator: Yes - electronic Sender
Drive: Hydro-Drive
Drive Description: Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, 1.7-quart integrated reservoir, spin-on filter and heavy-duty components. 12 cc pumps and 14. 5 cubic inch motors
Speed: Infinitely variable speed selection from 0–10.0 mph (16 kmph) forward, 0–6.0 mph (9.7 kmph) reverse
Carb Compliant: Yes
Deck Lift: Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position
Safety Package: Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators
ROPS: 2-post foldable ROPS standard with seat belt and latch
PTO Engagement: MagStop electromagnetic 200-ft-lb clutch with spot brake
Drive Wheel Release: Allows unit movement without engine running
Casters: .50" thick caster yoke arms
Engine Spec: _S04
Decks:
Width / Cutting Deck: 60"
Deck Style: Floating Deck
Deck Style Description: Full-floating UltraCut Rear Discharge Deck. Rear-discharge standard with option to mulch.
Deck Construction: 7-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge high strength alloy side skirt
Blade Tip Speed: Approximately 18,500 fpm.
Cutting Heights: 1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from operator’s seat.
Blades: 3 Blades at 20.50" Length
Dimensions:
Width: 66.2 in
Length: 79.2 in
Height: 70.5 in
