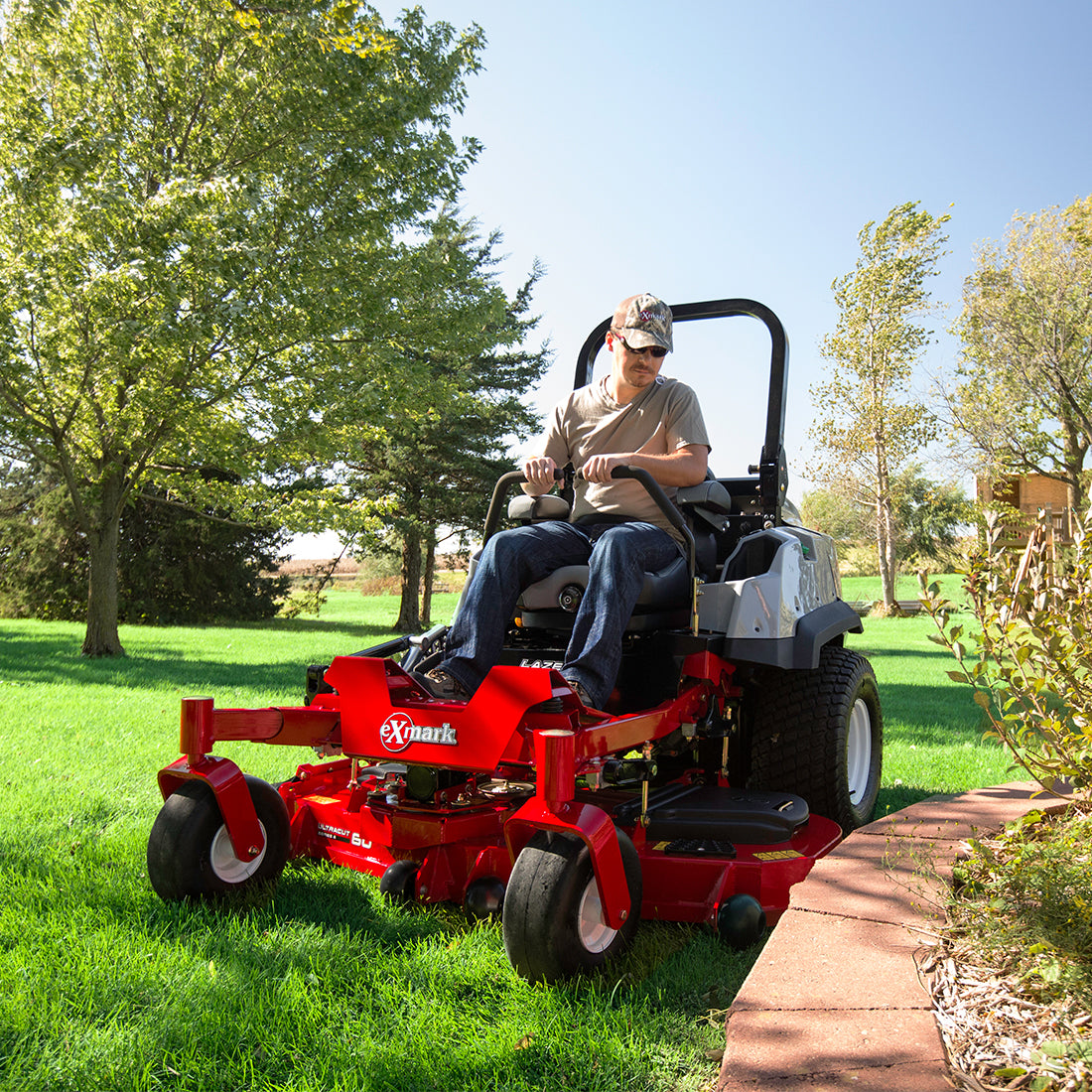

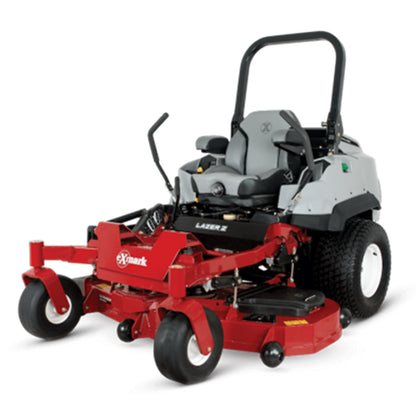

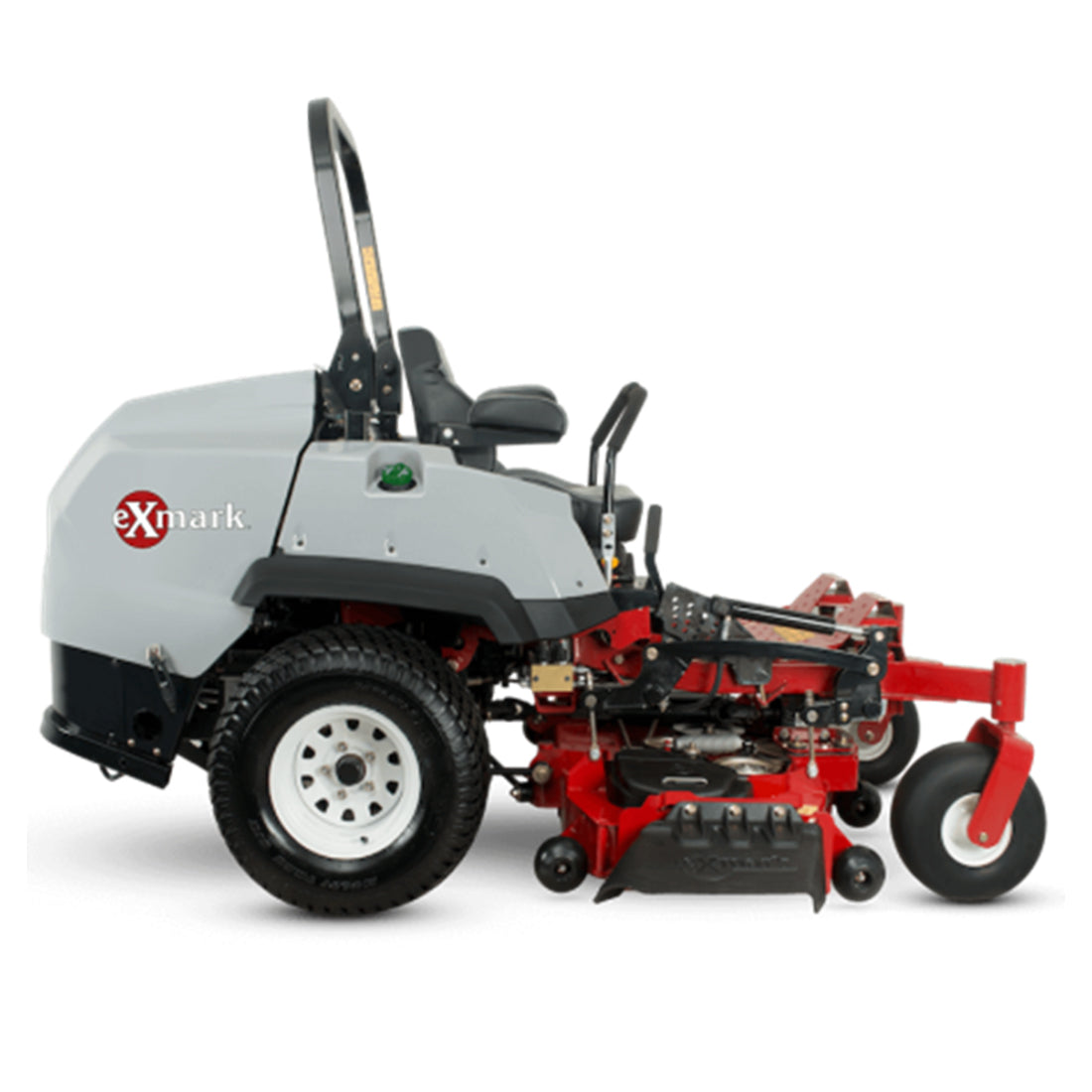

Exmark Lazer Z Diesel LZS80TDYM724W0 72 In. Zero Turn Mower
For a variety of reasons, the redesigned diesel-powered Lazer Z zero-turns may be the right choice for your cutting needs. These machines make quick work of the largest, toughest jobs and raise the bar for cut quality, operator comfort, fuel efficiency and ease of handling. Our large 96-inch flex wing deck is capable of mowing over 9.5-acres per hour, making it the most productive mower Exmark has ever built. The Lazer Z Diesel is also available with 60- and 72-inch UltraCut mower decks.
Features:
- The engine and radiator have been placed lower to the ground in the redesigned Lazer Z Diesel
- This provides an even lower center of gravity leading to improved traction and a smoother ride
- For longer work intervals, the Lazer Z Diesel has a 12.0-gallon capacity with two tanks
- The 26" x 12"-12" drive tires allow you to reach speeds up to 12.5 mph on machines equipped with the 1.6 Liter Common Rail engine
- The next generation RED leverages the latest technologies to deliver increased machine efficiency, ease of use and durability. This technology provides users an increased ability to control mower power and efficiency with defined performance modes
- Reduced Maintenance and Service
- Hydraulic Deck Lift
- The robust engine power and large deck sizes make these mowers Exmark's most productive diesel machines ever
Specifications
Equipment:
Blade Spindles: No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft, double row bearings top and bottom, and splined blade driver
Drive Tires: 26x12-12, 6ply Multi Trac®
Tractor Frame: Welded, heavy-duty 1.5" x 3" x 3/16" tubular steel
Steering Control: Hydraulically dampened twin levers, adjust fore and aft., also adjustable to 2 height positions. Adjustable dampeners (3 positions) to customize drive responsiveness
Front Caster Tires: 15 x 6.0-6, smooth-tread, semi-pneumatic
Parking Brake: Lever-actuated internal wet disc brake
Seat: Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up
Electrical: 12-volt battery with 55-amp alternator
Onboard Intelligence: RED Technology
Standard Features: 12-volt plug-in, engine hour meter and cup holder
Power Components:
Engine Brand: Yanmar
Engine Model: 3TNV80FT
Engine Displacement: 1267
Engine Series: TNV
Fuel System: Electronically Governed IDI Turbo Diesel
Engine Speed: 2,600 RPM
Air Filter: Heavy-duty canister air filtration system with electronic vacuum sensor
Fuel Type: Diesel
Fuel Capacity: 12-gallon (45.4-L), side fuel tanks
Fuel Indicator: Yes - mechanical float type
Drive: Hydro-Drive
Drive Description: Kanzaki KPS-18T Transmission, 16-quart oil capacity, spin-on filter. 18 cc shoe type pumps and 17.84 cubic inch Hydro-Gear HGM-18 motors, hydraulic oil cooler
Speed: Infinitely variable speed selection from 0–11.0 mph (18 kmph) forward, 0–6 mph (10 kmph) reverse
Carb Compliant: Yes
Deck Lift: Hydraulic
Safety Package: Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators
ROPS: 2-post foldable ROPS standard with seat belt and latch
PTO Engagement: Integrated wet clutch system in transmission, connected to right angle gearbox on deck via drive shaft
Drive Wheel Release: Allows unit movement without engine running
Casters: .50" thick caster yoke arms
Engine Spec: ZMTR1
Decks:
Width / Cutting Deck: 72"
Deck Style: Floating Deck
Deck Style Description: Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch
Deck Construction: 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge reinforced spindle mounting locations for improved strength and reduced weight
Blade Tip Speed: Approximately 18,500 fpm
Cutting Heights: 1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from operator’s seat
Blades: 3 Blades at 24.50" Length
Dimensions:
Width: 84.9 in
Length: 99.6 in
Height: 71.8 in
