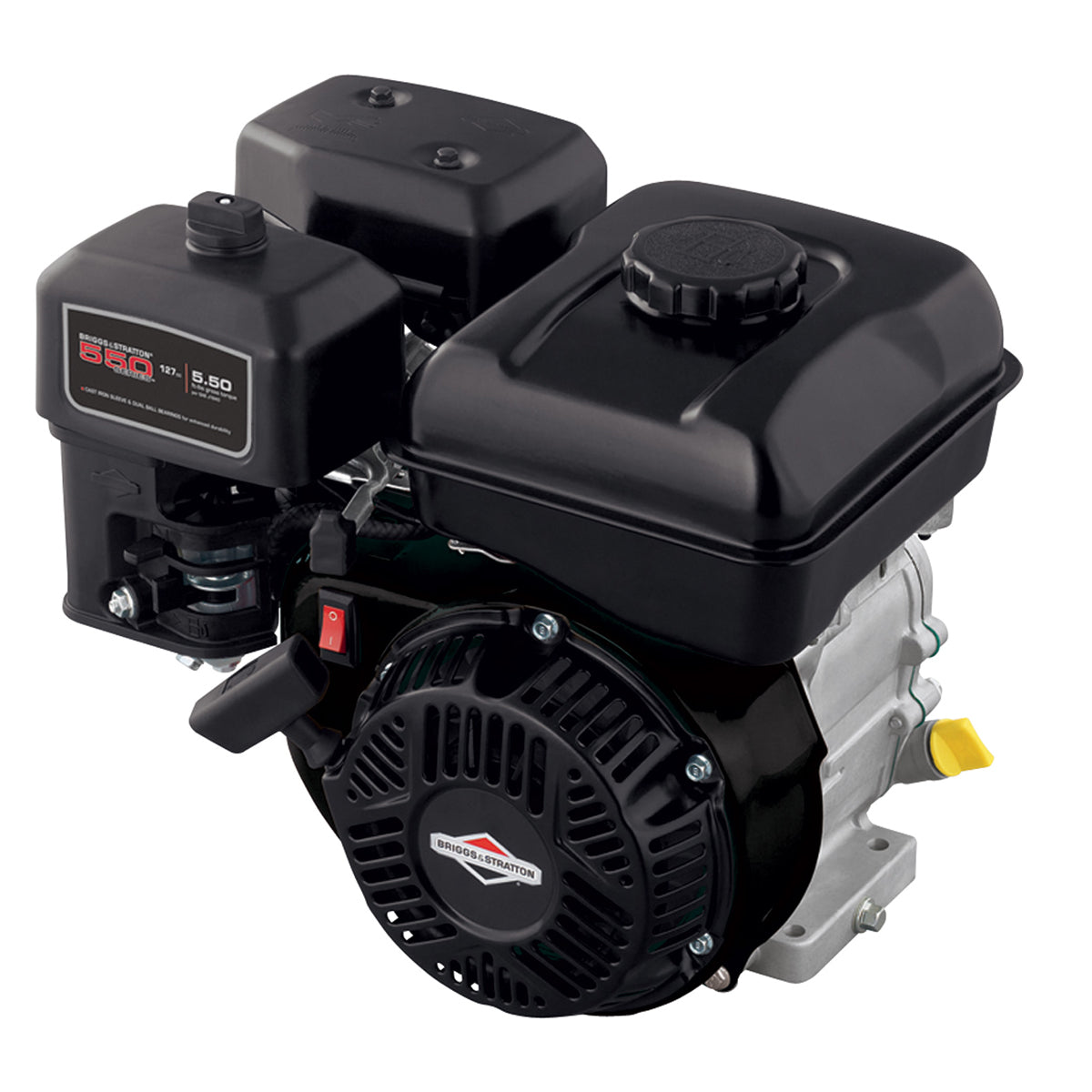

Briggs & Stratton 550 Series Horizontal Shaft Engine
Briggs & Stratton 550 Series Horizontal Shaft Engine
Briggs & Stratton builds the engines most of America’s best leading power equipment brands depend on. We’re also the engine most preferred by consumers nearly 60 million households trust their yard care to Briggs & Stratton power. America’s most-trusted brands count on Briggs & Stratton power to stand behind their promise of performance. We know what it’s like to have your name on the line. For more than 100 years, we’ve been living up to ours.
Features:
- Horizontal engine
- Overhead valve design (OHV) for cooler operation
- Dura-bore cast iron cylinder sleeve for extended life
- Float carburetor for consistent, easy starting
- Maintenance-free magnetron electronic ignition for quick, dependable starts
- Maxi-clean automotive-type pleated paper air filter provides superior protection for long engine life
- Dual oil filter and drain
- Dual ball bearings reduce wear for long life
- Dura lube gear-driven splash lubrication continuously applies oil to all internal parts
- Crankshaft: 3/4 in. Dia x 2-27/64 in. L, keyway, tapped 5/16-24
Specifications
Specifications:
Manufacturer's Warranty: 2 years consumer use / 1 year commercial use
Ship Weigh:t 35.0 lbs
Engine Displacement (cc): 127
Start Type: Recoil
Application: Mid-duty chore
Engine Type 550: Series
Torque (ft./lbs.): 5.5
Shaft Output: Horizontal
Crankshaft: 5/8 x 2 27/64
Shaft Diameter (in.): 5/8
Shaft Length (in.): 2 27/64
Shaft Keyway (in.): 3/16
Shaft End Tapped (Diameter (in.)/Threads per inch): 1/4–28
Shaft Rotation (From PTO Shaft Side): Counterclockwise
Gear Reduction: No
PTO Height (in.): 4.17
Bearing Type: Ball
Cylinders (qty.): 1
Cylinder Bore: Cast iron
Bore x Stroke (in.): 2.44 x 1.65
Cooling System: Air cooled
Air Cleaner Type: Dual element
Fuel Tank: Yes
Fuel Type: Gasoline
Fuel Tank Capacity (qt.): 2
Fuel Pump: No
Fuel Filter: Yes
Oil Capacity (qt.): 0.625
Lubrication System: Splash
Low Oil Alert: No
Low Oil Shutdown: No
Ignition System: Electronic
Governor System: Mechanical
Carburetor: Float
Throttle Control: Manual
Choke Control: Manual
Max. RPM: 3300
Charging System Amps: No
Muffler Included: Yes
Auto Compression Release: Yes
Mounting Base L x W (in.): 7 x 4
Mounting Bolt Pattern L x W (in.): 6 3/8 x 3 1/8
Dimensions L x W x H (in.): 13 x 15 x 13
EPA/CARB Approval (California Air Resource Board): Yes
