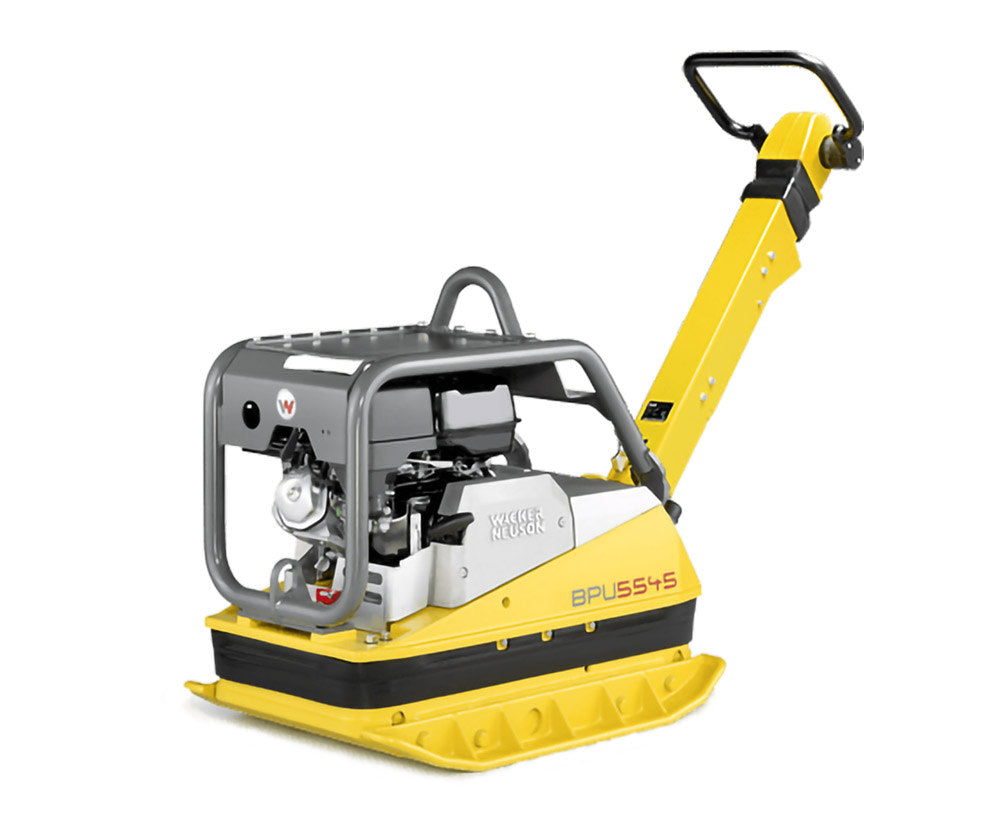

Wacker Neuson BPU5545A Reversible Vibratory Plate Compactor

Typically available in 5-10 business days. Manufacturer lead times may vary.
Original price $10,159.99 - Original price $10,159.99
Original price
$10,159.99 - $10,159.99
Current price $10,159.99

Wacker Neuson’s BPU 5545A suitable for all purposes and compacts even medium-weight and heavy interlocking paving stone reliably. Infinitely variable forward and reverse operation including spot compaction for easy maneuverability. Ideal for trenches and large spaces.


  • The innovative guide handle provides for very low hand-arm vibration and optimizes the user-friendliness.
  • The BPU 5545A is equipped with a recoil starter. Different extension plates provide a variety of operating widths.
  • Comprehensive comfort features: low oil shut off and maintenance-free alternator.
  • The large gasoline engine with its high reserve capacity ensures great efficiency and a long service life.
  • A safety cut-out mechanism prevents the operator getting trapped between machine and an obstruction when moving backwards.

Operating Data

Operating weight  750 lb
Centrifugal force  12,364 lbf
Base plate size (W x L) 17.3 x 35.4 in
Base plate thickness  0.47 in
Height (without guide handle) 28.3 in
Operating width (with extension plate) 23.6 in
Frequency  69 Hz
Hand-arm vibrations  4.9 ft/s²
Advance travel max. (depending on soil & environmental factors) 88.6 ft/min
Surface capacity max. (depending on soil & environmental factors) 9,171 ft²/h
Transport height  59.6 in
Transport length  41.3 in
Transport width  30.7 in


Engine / Motor

Engine / Motor type  Air-cooled single cylinder, four-cycle Otto engine
Engine / Motor manufacturer  Honda
Engine / Motor  GX 390
Displacement  23.7 in³
Engine performance max. (DIN ISO 3046) 6.4 kW
at rpm  3,000 rpm
Operating performance max. (DIN ISO 3046) 5.4 kW
at rpm  2,600 rpm
Fuel consumption  0.53 US gal/h
Tank capacity (fuel) 6.4 US qt
Power transmission  From drive motor via centrifugal clutch and V-belt direct to exciter.
Fuel type  Gasoline
CO2 (NRSC) * 743 g/kW-hr
