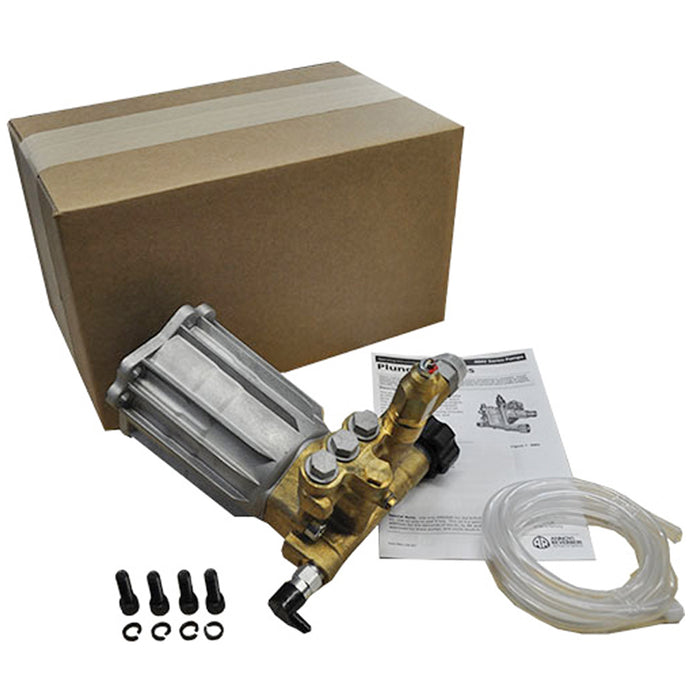

Annovi Reverberi RMV25G30D-EZ-PKG Pressure Washer Pump Package
Annovi Reverberi AR RMV25G30D-EZ-PKG with thermal relief valve and detergent tube with filter. 2.5 GPM at 3,000 PSI, spins at 3,400 RPM in a direct drive system coupled with a gasoline engine. Economy Axial Radial Drive Pump. Featuring - Manifold: Aluminum precision die cast special anticorrosion finish. Bolts: Three 6mm cadmium plated steel. Plungers: hardened stainless steel. Crankcase: Precision die cast, large coupling fins. Bearings: Premium oversized ball and needle bearings. Valves, Seats and Springs: Plastic poppet under 2300 psi, stainless steel poppet over 2300 psi, seat and cage, stainless steel spring. Seals: buna-N 2000 and 2400 psi single seal, 2500 psi to 3000 psi dual seals. SX suffix port rotated 180 degrees from standard.
Package Includes:
- RMV25G30D-EZ - Pump
- TPP140-1/4A - Thermal Relief Valve
- AR1269120 - Detergent Tube with Filter
Specifications
| Pump: | RMV25G30D-EZ |
| Max GPM: | 2.5 |
| Max L/Min: | 9.5 |
| Max PSI: | 3000 |
| MaxBar: | 200 |
| Power EBHP: | 5.1 |
| Bore Diameter: | 12mm |
| Stroke: | 9.7mm |
| Crankshaft ID Stamp: | 1 |
| Inlet: | 3/4" GHA |
| Outler: | 22mm x 1.4 M |
| Max Temp: | 140° F |
| Oil Capacity: | 2.2 oz. |
| Weight | 7.5 lbs |
| RPM | 3400 |
| Shaft Size: | 3/4" |
| Shaft Version: | D |
| Shaft Type: | Hollow |
| Thermal Relief Valve: | TPP140-1/4A |
| Max PSI: | 200 |
| Inlet: | 1/4" M |
| Max Temp: | 140° F |
| Detergent Tube with Filter | AR1269120 |
| Applications | EZ Start Valve |
