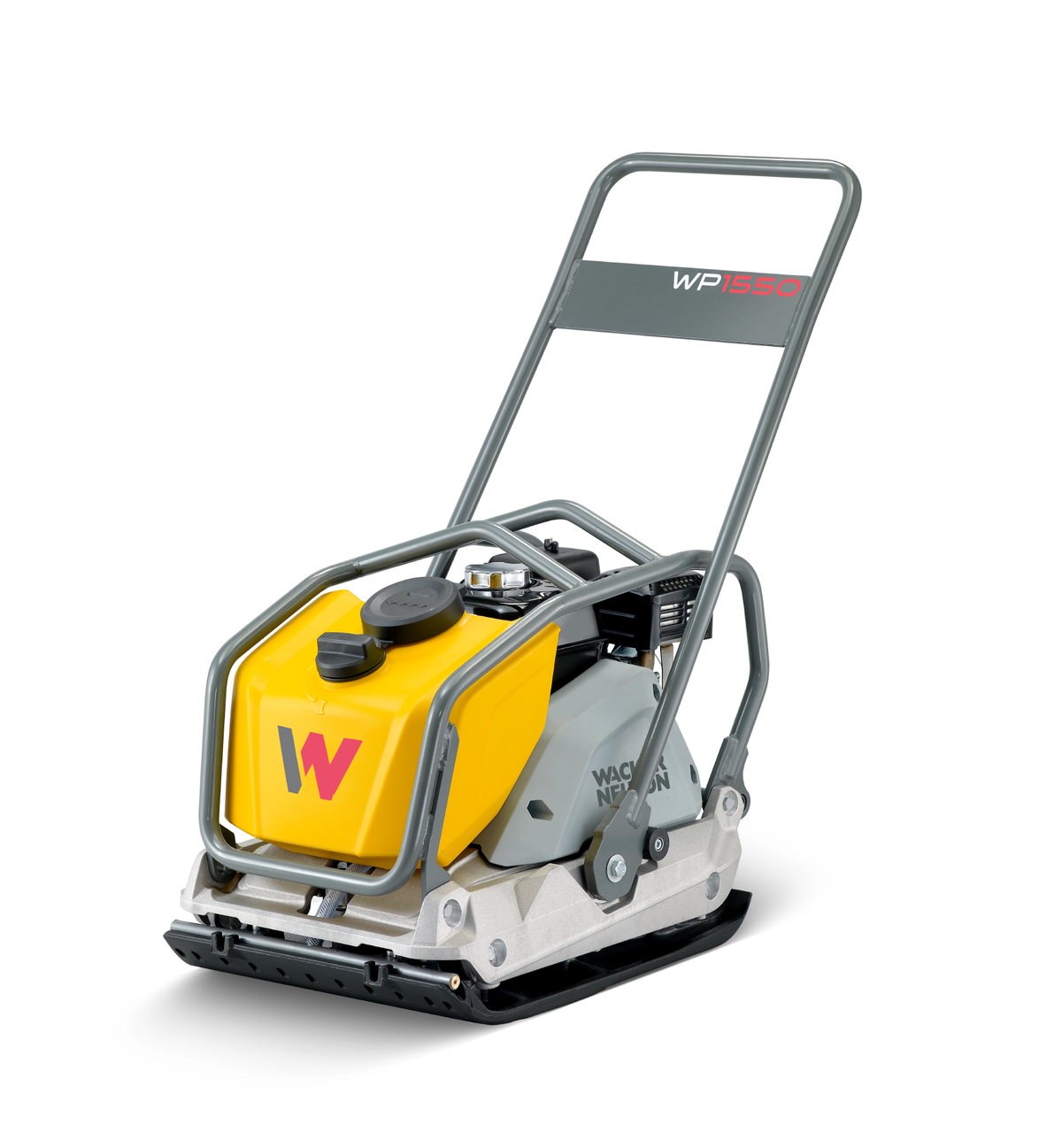

Wacker Neuson WP1550AW Plate Compactor w/ Water Tank
SKU WP1550AW
Availability:
Low stock
Original price
$2,252.99
-
Original price
$2,252.99
Original price
$2,252.99
$2,252.99
-
$2,252.99
Current price
$2,252.99
The vibratory plates of the WP series are the powerful professionals for compacting asphalt and mixed soils as well as for vibrating composite stone pavements. They are easy to turn and rotate thanks to the centrally mounted guide bracket and the specially shaped base plate. Thanks to their robust construction, they are ideal for professional continuous use, for example for compacting gravelly sand beds for pavements, roads and parking lots and for producing perfect asphalt surfaces. With the aid of the accessory wheel set, the vibratory plates of the WP series can be moved to the desired location on the construction site easily and without great effort.
Features:
- Sturdy protective frame for engine and water tank
- Low-maintenance design for low TCO
Specifications
| Model | WP1550AW |
| Length x width x height (handle in working position) | 34.5 in. x 19.5 in. x 38 in. |
| Lowest working height | 20 in. |
| Size of base plate (L x W) | 23 x 19.5 in. |
| Operating Weight | 194 lbs. |
| Water Tank Capacity | 11 US qt |
| Compacted Area | 9,750 ft 2/h |
| Forward speed | Up to 100 ft/min |
| Gradeability | 30 % |
| Vibration Frequency | 100 Hz |
| Max. Centrifugal Force | 3,375 lbs. |
| Engine Type | Honda Gas |
| Air-cooled | 4 cycle single cylinder |
| Displacement | 9.9 in3 |
| Max. power output (@3900 rpm) | 5.5 hp |
| Rated power output (@3600 rpm) | 5.0 hp |
| Fuel Tank Capacity | 3.9 US qt |
| Run Time | 2.1 hr |
| Water Tank | 2.75 US gal. |
