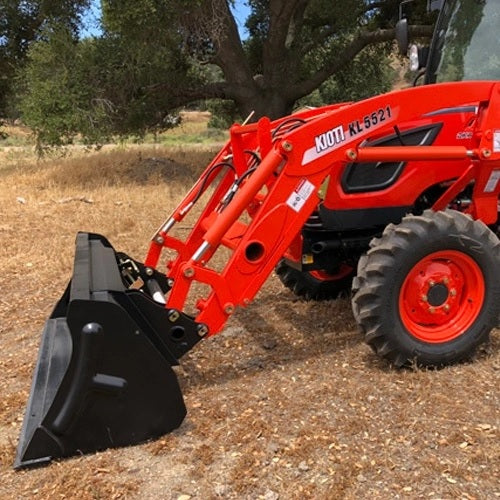

Kioti KL5521 Front End Loader
The KIOTI KL5521 front end loader is specifically designed for the Cab models of the DK10SE Series and the DK20SE series. The KIOTI loader, with a built-in parking stand, is designed to be quickly and easily attached and detached. KL Series loaders utilize the tractor’s hydraulic system, feature single-lever control with float and come with a bucket level indicator. *Specifications may vary with tractor model, front axle configurations, tire size option and type of attachment and are subject to change without notification.
Features:
• Contoured design complements tractor styling.
• Low profile design maximizes operator's visibility.
• Designed to be quickly and easily attached and detached.
• A built-in parking stand on the front end loader provides quick and easy connection.
• Mid-mount style frame for engine accessibility.
• A bucket level indicator is standard.
• Color complements KIOTI tractor.
Specifications
| Maximum Lift Height to Pivot Pin | 107.7 in. (2,735 mm) |
| Clearance w/ Bucket Level | 96.3 in. (2,446 mm) |
| Clearance w/ Bucket Dumped | 78.8 in. (2,001 mm) |
| Reach at Maximum Height (45º) | 22.7 in. (576 mm) |
| Maximum Dump Angle | 46º |
| Reach w/ Bucket on Ground | 71.1 in. (1806 mm) |
| Maximum Rollback Angle | 41º |
| Digging Depth Below Grade | 8.6 in. (218 mm) |
| Overall Height in Carry Position | 54 in. (1371 mm) |
| Bucket Depth (Inner Shell) | 18.5 in. (470 mm) |
| Bucket Height | 22 in. (560 mm) |
| Bucket Length (Pivot Pin) | 26 in. (660 mm) |
| Lift Capacity to Full Height at Pivot Pins | 2,474 lbs. (1,122 kg) |
| Breakout Force at Pivot Pins | 3,895 lbs. (1,767 kg) |
| Bucket Rollback Force at Ground Line | 3,148 lbs. (1,428 kg) |
| Relief Valve Setting (Loader Control Valve) | 2,774 psi (195 kg/cm²) |
| Rated Flow (Tractor System) | 9.62 gpm (36.4 L/min) |
| Bucket Size(s) Available | 66" QA / 72" QA |
| Bucket Capacity (Heaped) | 66 in.: 14.5 cu. ft. / 72 in.: 16.0 cu. ft. |
| Approximate Weight (With Bucket) | 66 in.: 1,361 lbs. (617 kg) / 72 in.: 1,389 lbs. (630 kg) |
