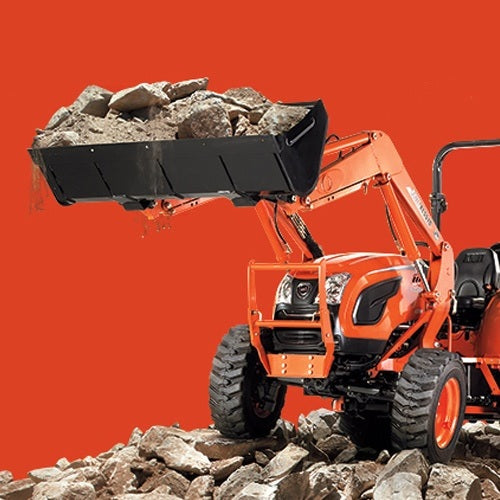

Kioti KL5510 Front End Loader
The KIOTI KL5510 front end loader is specifically designed for the DK10 Series tractors, providing efficient performance with single lever joystick control. The KIOTI loader, with a built-in parking stand, is designed to be quickly and easily attached and detached. KL Series loaders utilize the tractor’s hydraulic system, feature single-lever control with float and come with a bucket level indicator. *Specifications may vary with tractor model, front axle configurations, tire size option and type of attachment and are subject to change without notification.
Features:
• Low profile design maximizes operator's visibility.
• Designed to be quickly and easily attached and detached.
• A built-in parking stand on the front end loader provides quick and easy connection.
• Mid-mount style frame for engine accessibility.
• A bucket level indicator is standard.
• Color complements KIOTI tractor.
Specifications
| Maximum Lift Height to pivot pin | 109 in. (2,768 mm) |
| Clearance w/ Attachment Level | 96.4 in. (2,449 mm) |
| Clearance w/ Attachment Dumped | 81.7 in. (2,075 mm) |
| Reach at Maximum Height | 18.1 in. (460 mm) |
| Maximum Dump Angle | 58° |
| Reach w/ Attachment on Ground | 70.9 in. (1,800 mm) |
| Maximum Rollback Angle | 38.9° |
| Digging Depth Below Grade | 9.1 in. (231 mm) |
| Overall Height in Carry Position | 57.7 in. (1,465 mm) |
| Depth of Attachment (to back of inner shell) | 18.4 in. (467 mm) |
| Height of Attachment | 22 in. (560 mm) |
| Length of Attachment (to pivot pin) | 26 in. (660 mm) |
| Lift Capacity to Full Height at Pivot Pins | 2,660 lbs. (1,207 kg) |
| Breakout Force at Pivot Pin | 3,900 lbs. (1,769 kg) |
| Bucket Size | 66 in. / 72 in. |
| Weight (with Bucket) | 1,452 lbs. (180 kg) |
