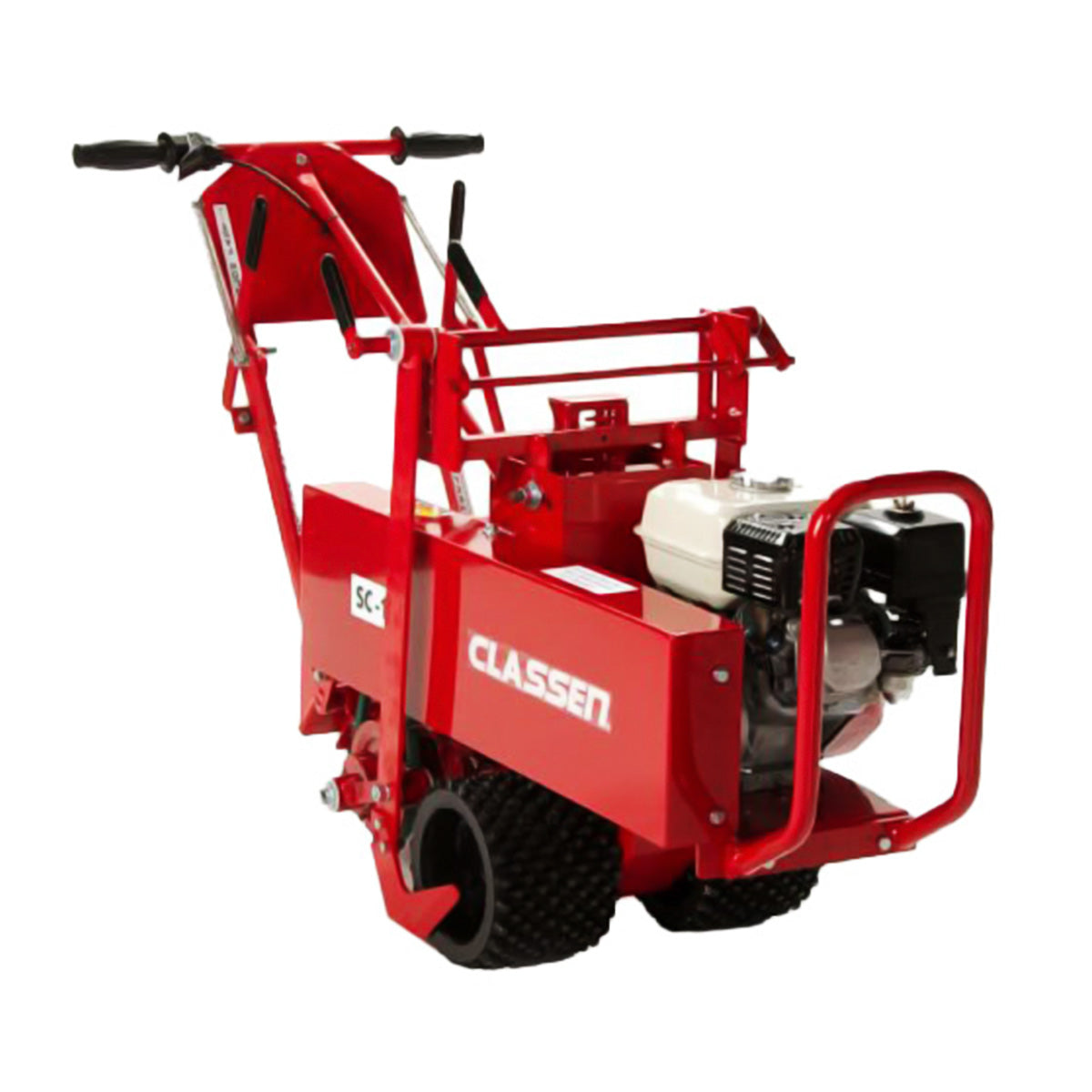

Classen 18 In. Sod Cutter Honda GX160 Engine
by Classen
SKU SC-18/5.5
Availability:
Low stock
Original price
$5,860.00
-
Original price
$5,860.00
Original price
$5,860.00
$5,860.00
-
$5,860.00
Current price
$5,860.00
Sod cutting is tough work. Done manually is literally hours of back-breaking labor. The Classen Gear-Drive Sod Cutter makes sod cutting easy; leaving level ground to build a new path, walkway, patio, or to establish new flower beds.
Features:
- Clutch/Brake lever for ease in unloading machine backwards from truck or trailer
- Cutting blade makes 20 cutting strokes per second / 1200 per minute
- Adjusts to cut sod up to 2.5” deep
- Four front knobby tread drive wheels ensure better traction and eliminate dirt build up
- 1-3/8” cutting stroke is up to 50% longer than competitive models
- Throttle goes idle and stops machine movement when released
- 18” blade standard. Optional 12”, 16”, 20”
- Optional rear swivel wheel for enhanced maneuverability
Specifications
| Product No. | SC-18A/5.5 |
| Engine | 4-Cycle, Honda GX160 |
| Displacement | 9.9 cu. in. (163 cc) |
| Starter | Recoil |
| Governor | 3400 RPM + 200 RPM, no load |
| Clutch | Spring loaded belt tightener type |
| Reduction - Engine to Blade | 3.03 to 1 |
| Reduction - Engine to Drive Wheels | 57.2 to 1 |
| Wheels - Drive | 8-5/8" (219mm) Dia. with knobby tread vulcanized to hub |
| Wheels - Rear | 8 x 1.75 (203 x 45mm) semi-pneumatic tire |
| Cutting Width | 18" |
| Optional Blade Kit Widths | 12", 16", 20", 24" |
| Cutting Depth | 12”, 24” blades: 1.5" 16”, 20” blades: 2” |
| Blade Speed | 1200 strokes/minute @ 3400 engine RPM |
| Dimensions - Wheel Base | 22" |
| Dimensions | 54"L x 34"H x 24"W |
| Weight | 304 lbs |
