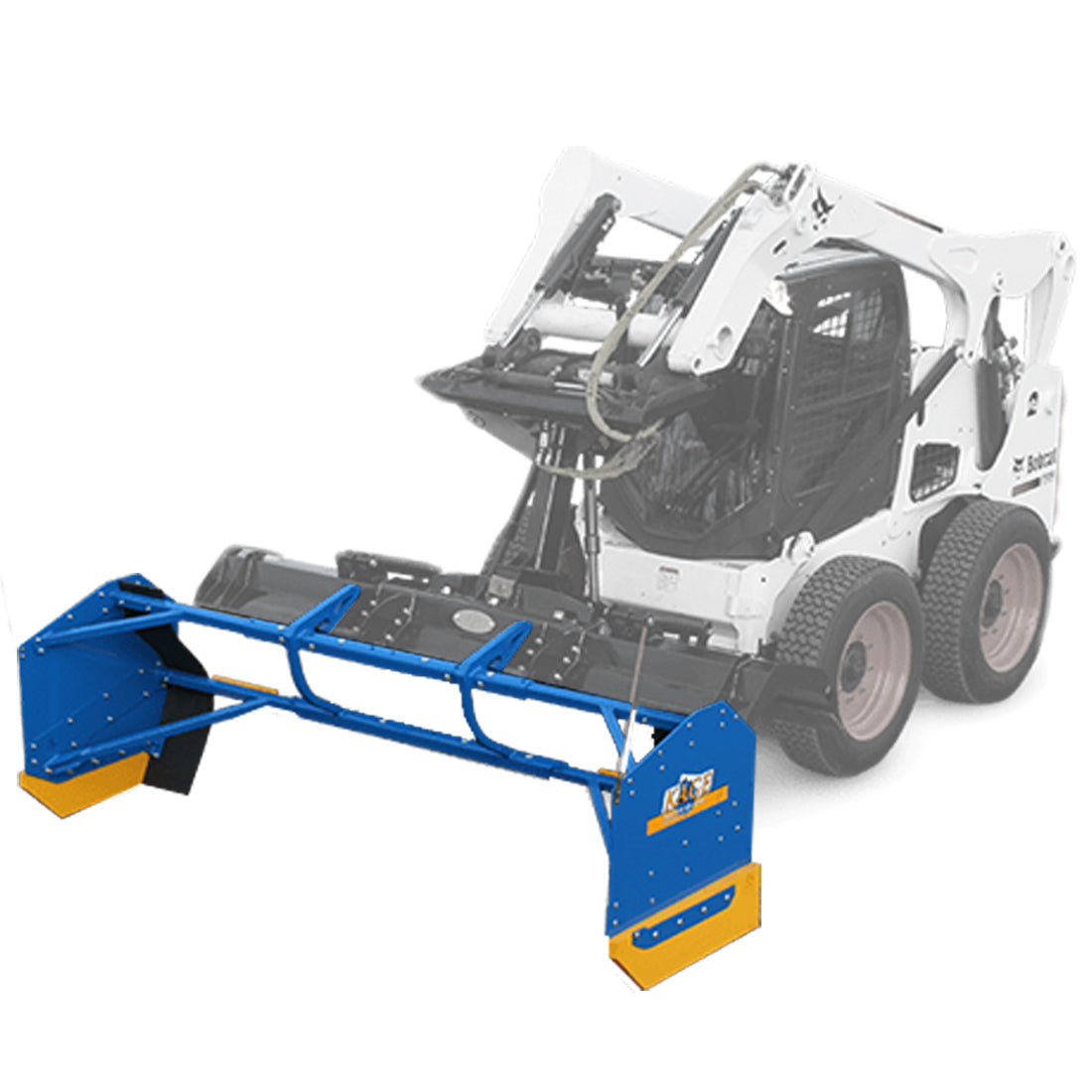

Kage SnowFire Skidsteer Snow Plow System 9' SBK108 (Blade & Box)
The Kage System is two tools in one. Now you can have the best of both pushing and plowing, switching back and forth in seconds without leaving the cab! The Kage Snowfire System is available in 6′, 8′, 9′, 10′ and 12′ widths. The SNOWKAGE box hooks onto a skid steer snow plow to instantly create a containment system. The KAGE system takes the advantages of a snow plow and a pusher box and combines them into one fast and seamless operation. Operators can windrow or backdrag with the plow normally, then grab the SNOWKAGE box to push out their piles or windrows. Then they can go back to plowing – without leaving the cab. The KAGE system reduces plowing frustrations and hassles. The KAGE system reduces plowing times by 25-50%.
Specifications
Snowblade Specifications | |
---|---|
SKU | SB108 |
Blade Width | 9' |
Blade Width at Full Angle | 88.5" |
Oscillation (Degrees/Inches) Each End | 6°/11.25″ |
Moldboard Radius | 15.5" |
Moldboard Gauge / Steel Grade | 10 ga. / Grade 50 |
Trip Springs | 4 |
Cutting Edge High Carbon | 5/8" x 6 |
Cross-Over Relief Valve | Standard |
Pivot Frame Length | (31") |
Machine Size Recommended | 6500 lbs+ |
Weight | 1087 lbs |
Cylinders (2) | Nitro 1.5" |
Blade Height | 31.125" |
Snowkage Specifications | |
SKU | SK108 |
Overall Height | 40" |
Overall Width | 116" |
Replaceable Side Panels | Yes |
Hook Thickness (Skid-Steer Model Only) | 1.5" |
Replaceable Poly Skids | 36" x 9.75" x 1.5" |
Weight | 442 lbs |
Machine Size Recommended | 6500 lbs+ |
Overall Width at 35 Degree Angle | 115.3" |
Total Weight of Kage System (Blade+Box) | 1529 lbs |
