Oregon 520-120 Professional 120-Volt Bench Grinder Universal Saw Chain Sharpener

Oregon 520-120 Professional 120-Volt Bench Grinder Universal Saw Chain Sharpener

by Oregon
SKU 520-120
Availability:
Typically available in 5-10 business days. Manufacturer lead times may vary.
$806.99 - $806.99
$806.99
$806.99 - $806.99
$806.99

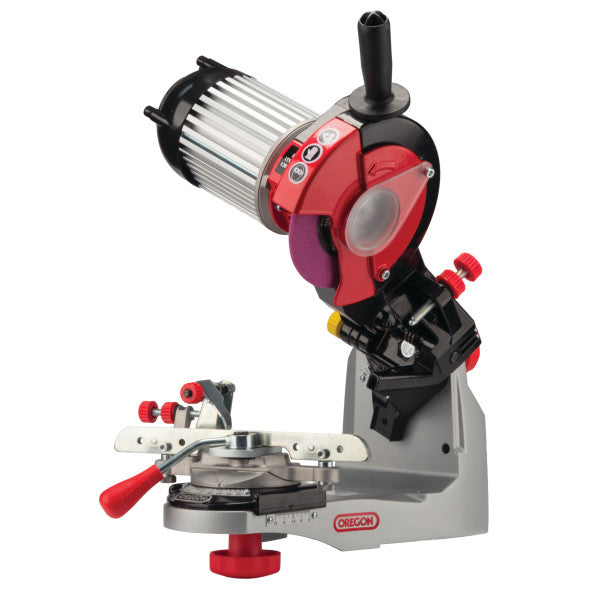

This Oregon Bench-Mount Chain Grinder is a durable machine built with the quality and features needed for frequent high-volume chain sharpening. Comes with 1/8in., 3/16in. and 1/4in. grinding wheels for sharpening chain pitches up to 0.404in. Also includes built-in light, wheel-dressing brick and a template for pitch, depth-gauge setting and wheel contour. Meets ANSI standards.

  • 3400 RPM, 3/8 HP direct drive motor provides enough power for daily heavy-duty sharpening
  • 4.3 Amps
  • Durable, long-lasting cast aluminum chassis
  • Variable motor grind angle to enable multiple adjustments
  • Safety shield with integrated light

What's Included

(1) Chain grinder

(3) Grinding wheels

(1) Wheel dressing brick

(1) Template for pitch, depth gauge setting and wheel contour

Specifications
  • 3400 RPM, 3/8 HP direct drive motor provides enough power for daily heavy-duty sharpening
  • 4.3 Amps
  • Durable, long-lasting cast aluminum chassis
  • Variable motor grind angle to enable multiple adjustments
  • Safety shield with integrated light
  • 3-ft. cord with 3-prong grounded plug
  • One-way motor rotation for greater operator safety
  • Large motor fan and durable T-shaped cooling fins for excellent temperature regulation
  • Easy-to-use controls to make precise adjustments
  • Securely held chain parts to reduce risk of operator injury
  • Self-centering vise provides equal grind angles without adjustment, clamping to all chain sizes from 1/4in. to 0.404in. pitch
  • Standard chain vise attachment fits 1/4in., 0.325in., 3/8in. and 0.404in. pitch chains
  • 5 3/4in. dia. x 1/8in. thick vitrified grinding wheel sharpens 1/4in., 0.325in. (except Oregon 20 series) and 3/8in. (Oregon 91 series only) pitch chains
  • 5 3/4in. dia. x 3/16in. thick vitrified grinding wheel sharpens 0.325in. (Oregon 20 and 95 series only) and 3/8in. (except Oregon 91 series)
  • 5 3/4in. dia. x 1/4in. thick vitrified grinding wheel sets depth gauges
  • Motor head can be raised to create more space for grinding depth gauges and to extend grinding wheel life
  • Large indexing chain stop provides a larger surface area, accommodating large chain types
  • Tripod stand Item# 39717 sold separately
  • Additional wheels sold separately: 1/8in. Item# 193041, 3/16in. Item# 193042, 1/4in. Item# 193043, 5/16in. Item# 193044
