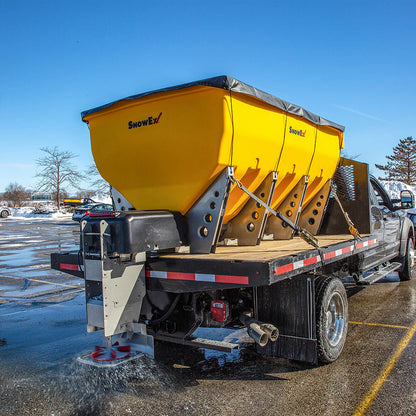

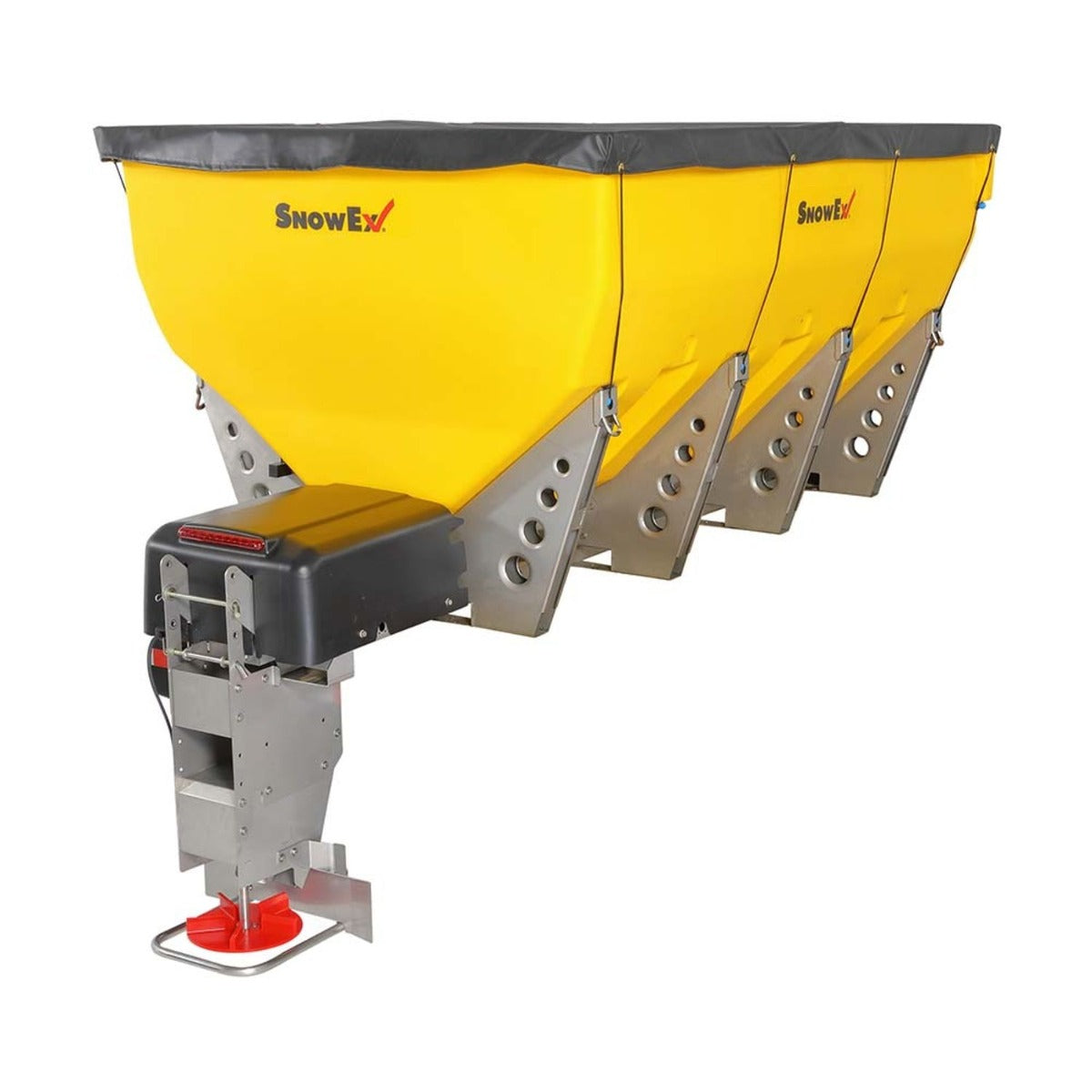

SnowEx HELIXX Poly Hopper Spreader
PICKUP / LOCAL DELIVERY ONLY
Due to manufacturer policy we are unable to ship this product. It is available only for in-store pickup or local delivery.
Forget everything you thought you knew about poly spreaders. Available in capacities from 1.5 to 5.0 cubic yards, the HELIXX poly hopper spreaders are a from-the-ground-up design based on extensive testing and three decades of SnowEx® hopper spreader innovation. The exclusive material delivery system vastly outperforms traditional augers, delivering unmatched material flow.
Materials: Bulk Salt, Liquid Brine
Spread Pattern: Broadcast
Features:
- HELIXX Advanced Material Delivery - The patent-pending corkscrew – or “helix” – design of the HELIXX material delivery system is optimized for efficient and cost-effective use of salt and was designed to operate in the target range for salt spreading best practices. The innovative design helps prevent clogs and delivers a material flow superior to traditional augers.
- Full Length HELIXX and Multi-Dimensional Tub - The HELIXX runs the entire length of the hopper with variable flights. Combined with strategically positioned ribs/angles within the poly tub walls, this promotes the best possible material flow and even unloading.
- Cab Forward Design - The cab forward hopper delivers better payload distribution to reduce stress on the truck.
- Material Leak/Spill Prevention - The HELIXX extends beyond the hopper and into the patented pre-wet mixing chamber to help prevent leaking/spilling during transport while providing an ideal location for pre-wetting material.
- Stainless Steel Frame - Constructed of corrosion-resistant stainless steel, the frame features a unique leg and sill design to form a ridged backbone structure for greater durability.
- Triple Threat - Spread, pre-wet or spray with one machine. By adding pre-wet tanks, a pump and a spray kit, the HELIXX spreaders not only pre-wet materials, but they can also be used for spraying liquid brine directly onto the driving surface for anti-icing applications. The components offer a simple plug-and-play installation, meaning a contractor can upgrade to pre-wetting or direct liquid applications at any time.
Specifications
HELIXX™ Poly Hoppers
11780 | 11790 | 11800 | 11810 | |
---|---|---|---|---|
Capacity (Volume) | 1.5 cu yd | 2.25 cu yd | 3.5 cu yd | 5.0 cu yd |
Capacity (Weight) | 3,120 lb | 4,680 lb | 7,280 lb | 10,400 lb |
Spreading Width | 8 - 40 ft | 8 - 40 ft | 8 - 40 ft | 8 - 40 ft |
Empty Weight | 412 lb | 443 lb | 694 lb | 718 lb |
Overall Length | 106" | 115" | 133" | 133" |
Overall Height | 52" | 59" | 76" | 83.5" |
Overall Width | 49" | 49" | 67.25" | 67.25" |
Min. Bed Length | 72" | 80" | 98" | 98" |
Hopper Length | 80.75" | 89.75" | 109" | 109" |
Hopper Height | 34.5" | 41.5" | 46.5" | 54" |
Hopper Width | 49" | 49" | 67.25" | 67.25" |
