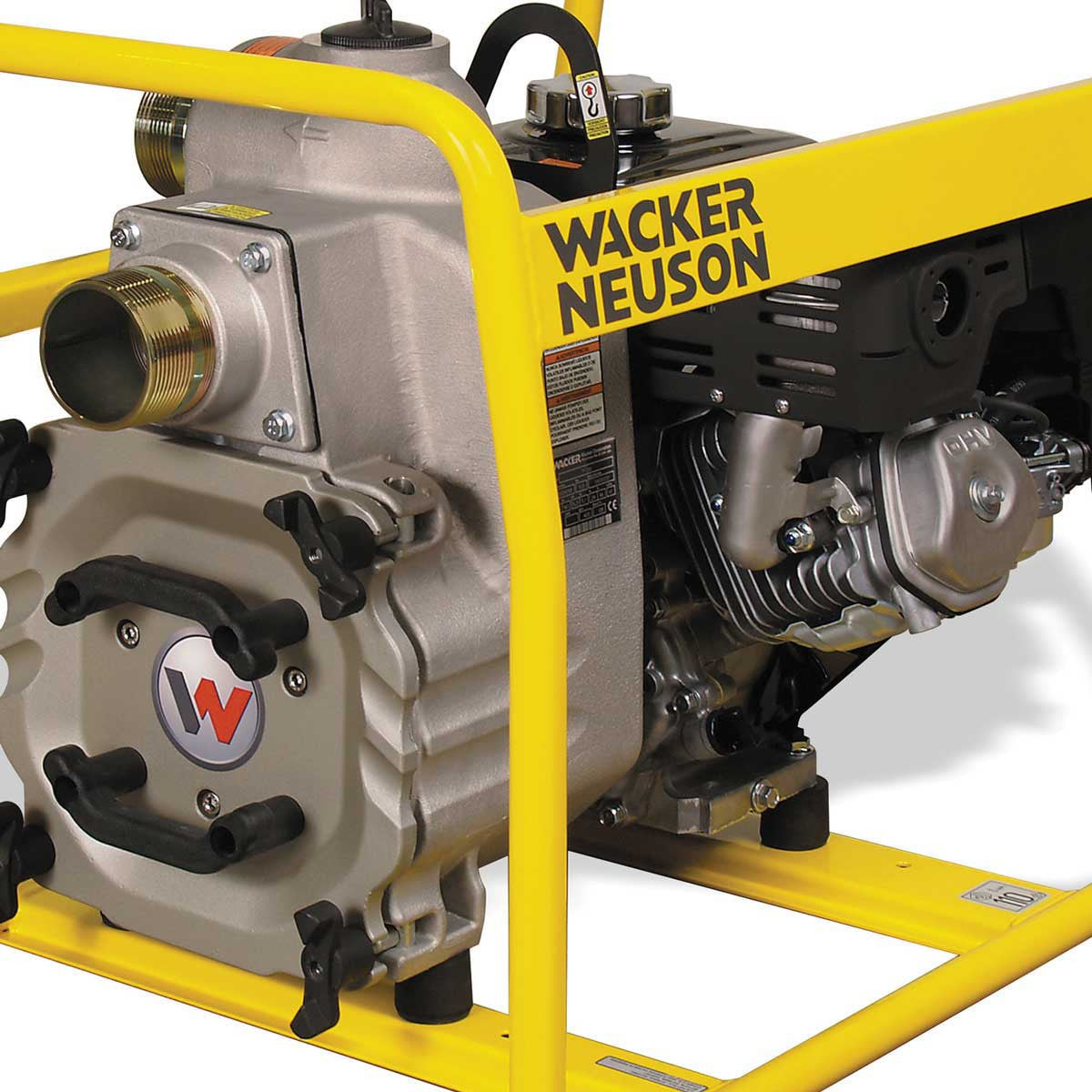

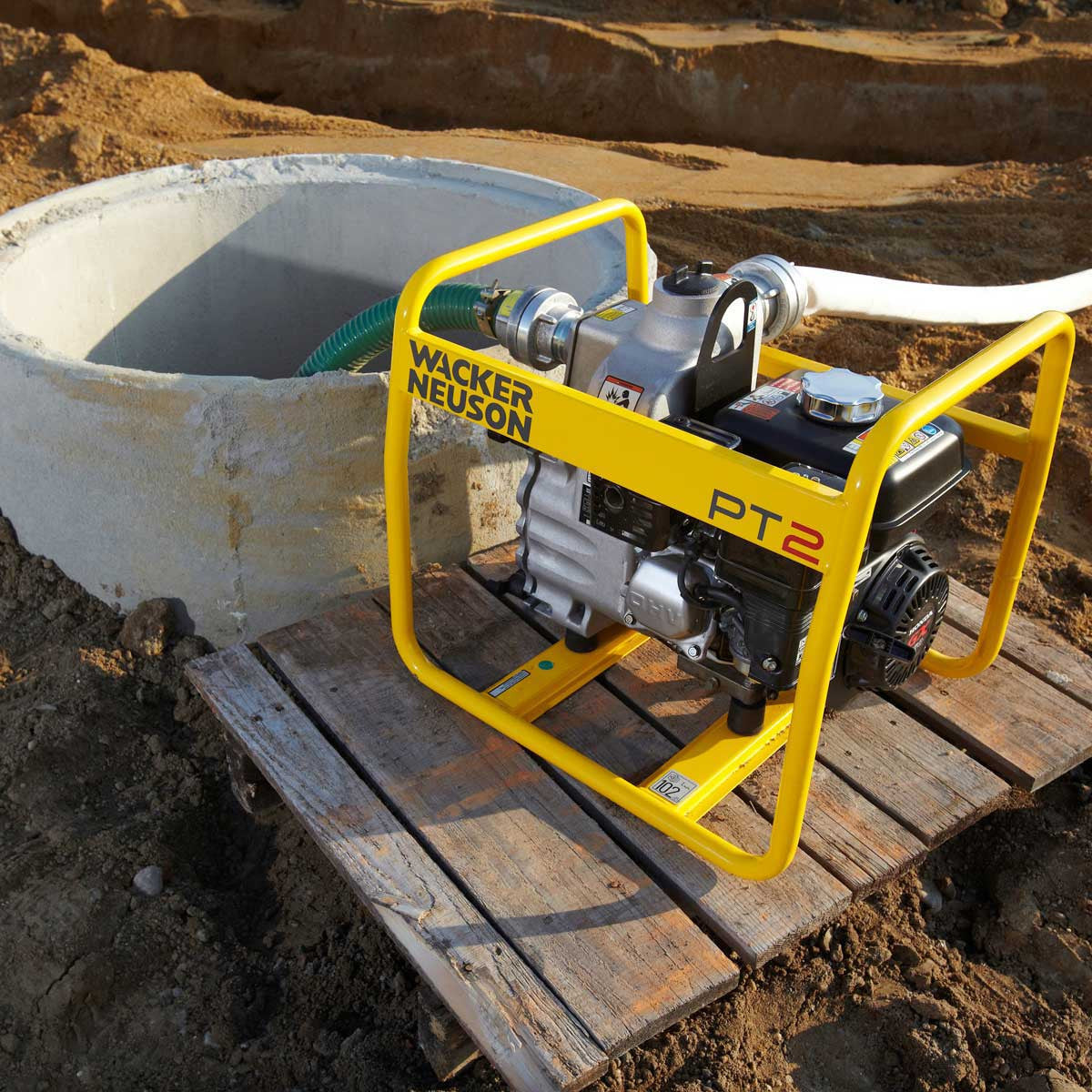

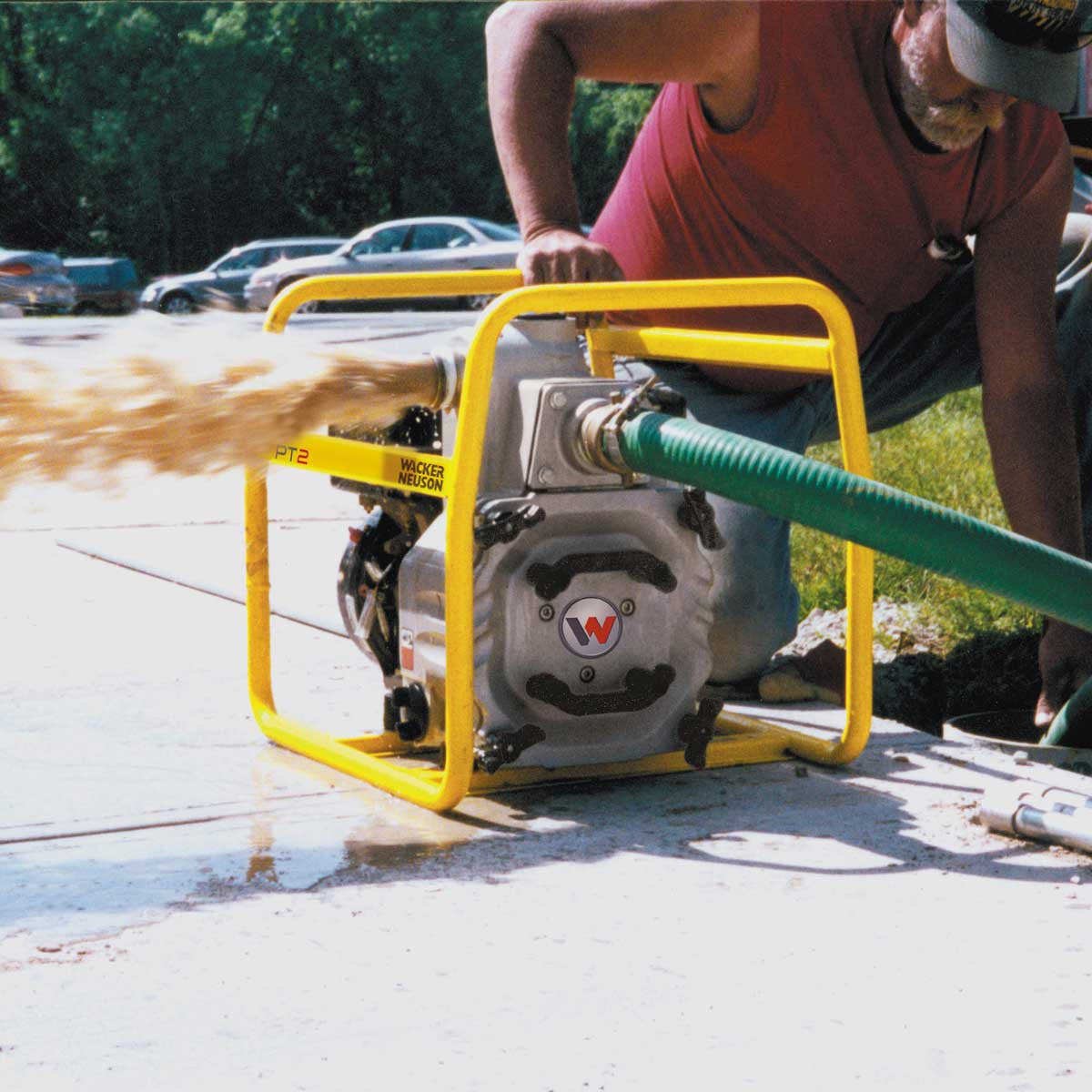

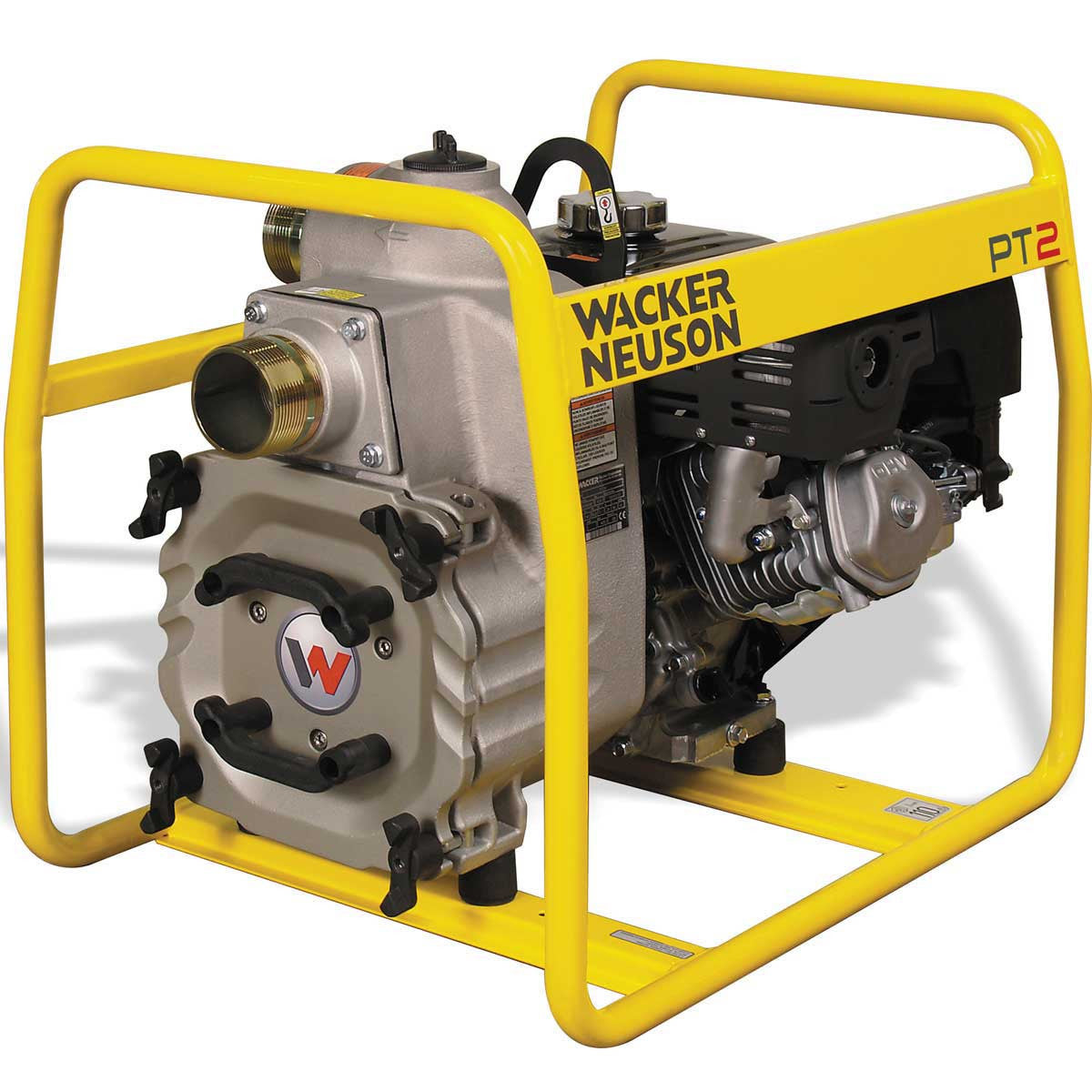

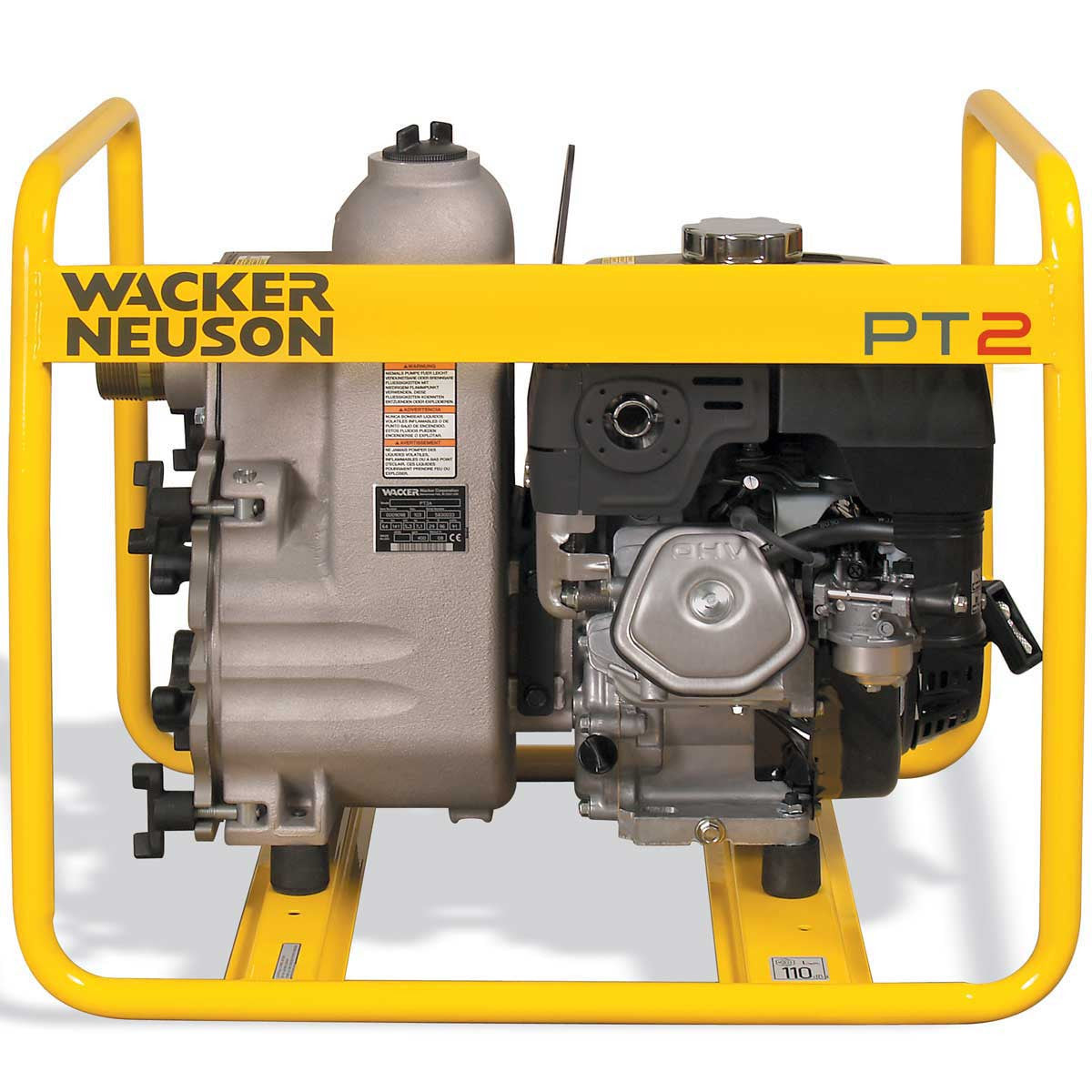

Wacker Neuson PT2A Trash Pump
The Wacker Neuson PT2A with Honda engine is a centrifugal trash pump reliable for dewatering tools for a variety of applications. The lightweight pumps can handle up to 210 gpm (795 l/m) and solids up to one inch (25 mm) and are ideal for general dewatering of excavations, flooded basements, manholes, utility vaults, mining work, swimming pools, lakes and barge holds or wherever there is unwanted water. With the radial flow design and built-in contractor friendly features, this line of trash pumps has redefined the quality and durability standards of self-priming, centrifugal trash pumps.
Features:
- Hardened ductile iron impeller and volute with patented pump cover, volute and volute insert provides a rugged, easy to maintain pump that will stay on the job longer.
- Compact, lightweight design using high strength aluminum housing with easy access and large fill and drain plugs, provides extra years of trouble-free operation
- Radial flow design produces high volume and head for superior pump performance.
- Quality components such as carbon ceramic mechanical seals for extra long life.
- Easy to operate.
Specifications
L x W x H: in 21.7 x 18.3 x 19.6
L x W x H Shipping in: 22.3 x 18.9 x 21.2
Diameter Suction and Discharge in: 2
Operating weight lb: 96
Shipping weight lb: 109
Discharge Head ft 106
Pressure psi 45.9
Flow rate US gpm 172
Suction height Lift ft 25
Solids diameter Max. Size in 1
Engine / Motor type Air-Cooled, Single Cylinder
Engine / Motor manufacturer Honda
Engine / Motor GX160
Displacement in³ 9.9
RPM / speed Max. Engine rpm 3,700
RPM / speed Operating rpm 3,500
Power Max. Rated hp 4.8
Power Rating Specification SAE J1349
Engine oil Capacity US qt 0.63
Fuel type Gasoline
Fuel consumption US gal/h 0.45
Tank capacity Fuel US qt 3.3
Runtime h 1.8
