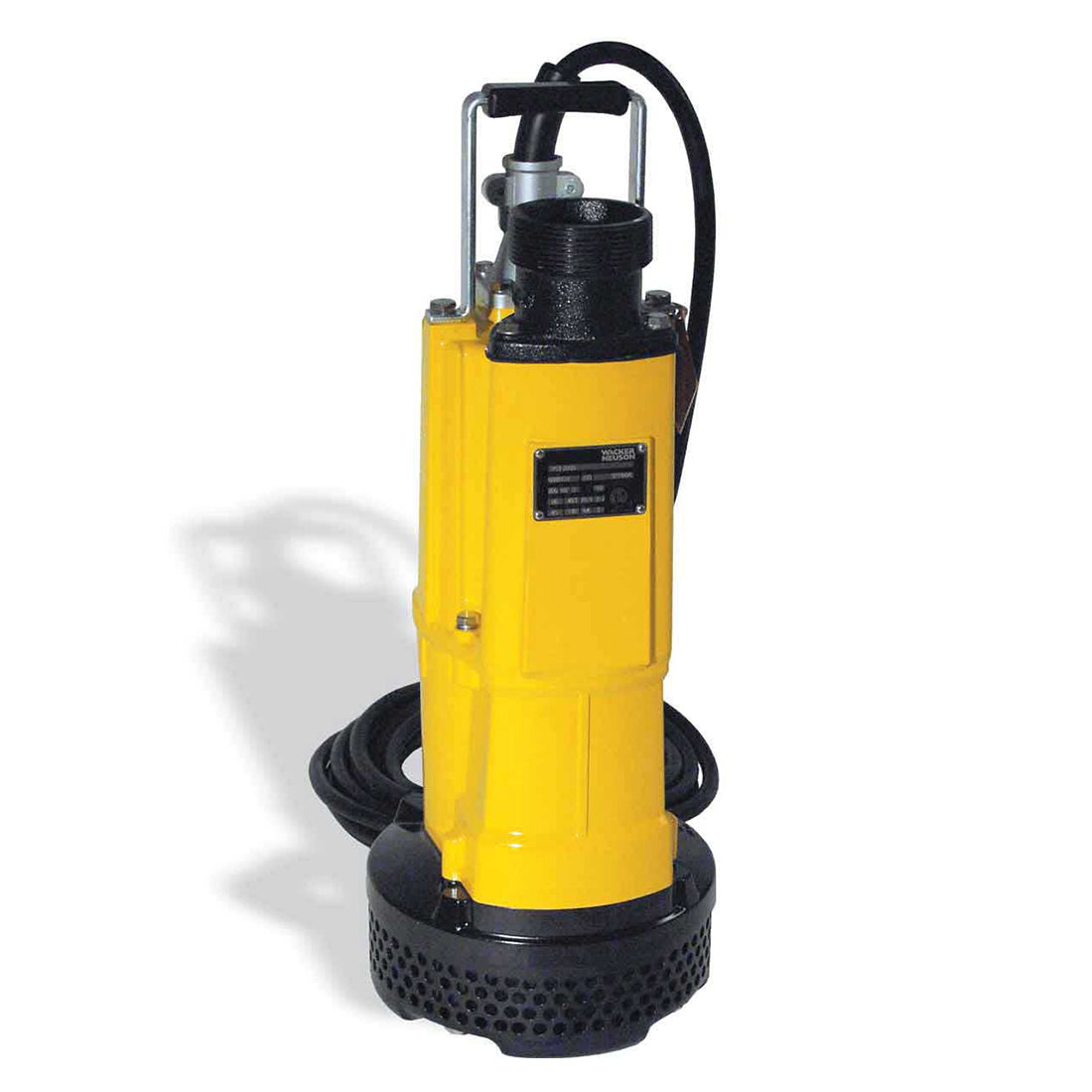

Wacker Neuson PS3 2200 Submersible Pump 3 In.

SKU PS3 2200
Availability:
Typically available in 5-10 business days. Manufacturer lead times may vary.
Original price $2,168.99 - Original price $2,168.99
Original price
$2,168.99
$2,168.99 - $2,168.99
Current price $2,168.99

Lightweight, portable, single phase submersible pumps are designed to handle water and solids. Built for the demands of construction, mining, municipality and farm applications.

Features:

  • Lightweight, compact design for easy transport and positioning of pump
  • Built-in thermal protection prevents motor damage due to impeller blockage, reducing service repairs
  • Heavy-duty power cord with strain relief resists pullout and abrasion reducing costly repairs
  • Insulation on all conductors of the power cable are protected by a water block system to prevent wicking of water into the motor
  • Silicon carbide faced double mechanical seals run in an isolated oil-filled cavity, allowing for seal lubrication, cooling and overall motor protection
  • Preliminary v-ring or lip seal (depending on model) shields the mechanical seal from abrasive wear due to suspended debris in pumping fluid
  • Semi-vortex impeller allows for optimum wear resistance
Specifications
Model PS3 2200
Operating Weight 64 lbs.
Length x Width x Height 9.5 x 9.5 x 22.5 in.
Discharge diameter 3 in.
Max. head 85 ft.
Max. discharge 130 US gpm
Max. pressure 37 psi
Solid size capacity 0.3 in.
Motor Type Single phase/60 Hz
Voltage 220V
Current (full load/start @ 220V) 13/70 A
Speed 3.465 rpm
Max. power output 3 hp - 2.2 kW
Cable length 32 ft.
Cable size 14 AWG
Impeller material Ductile iron
Impeller type Semi-vortex
