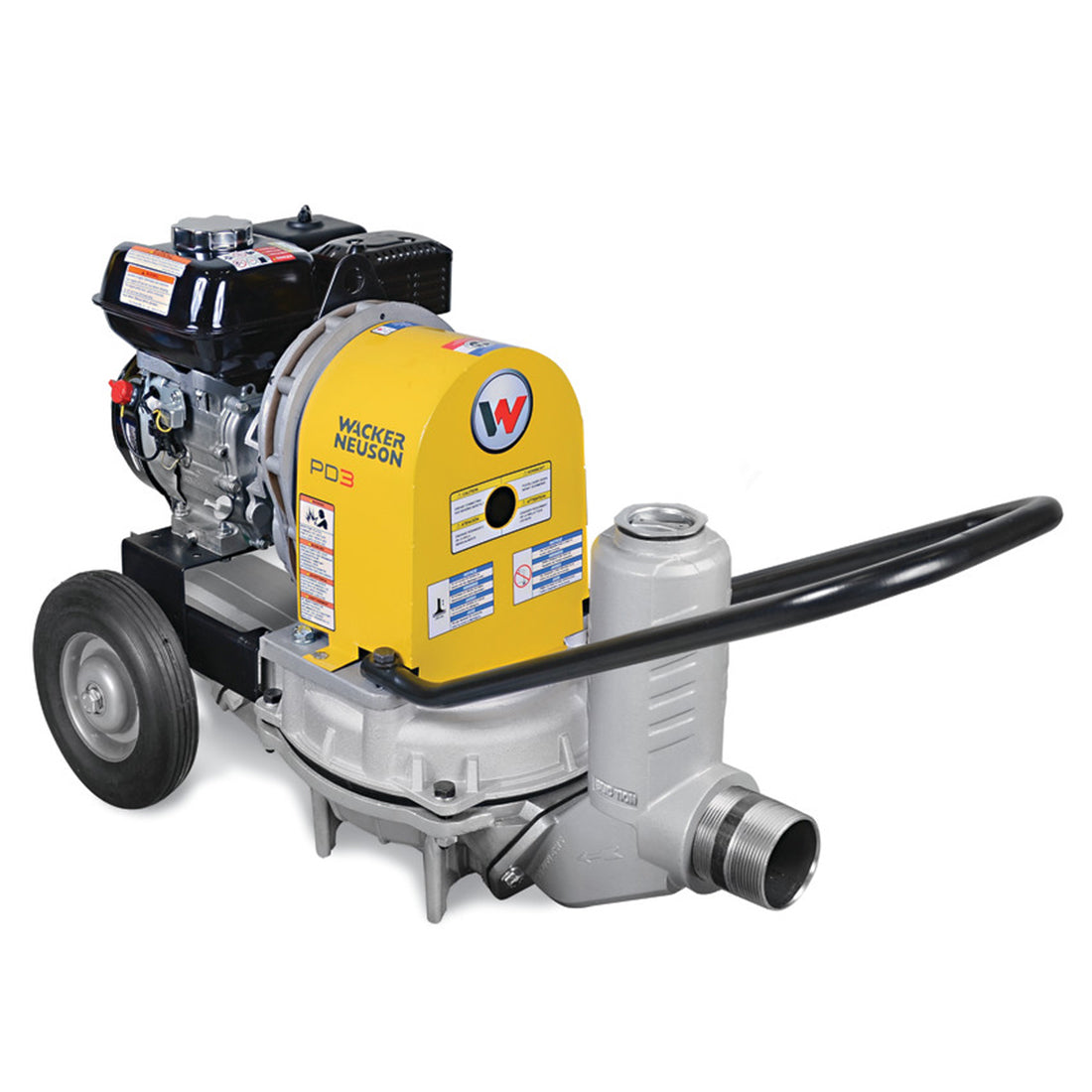

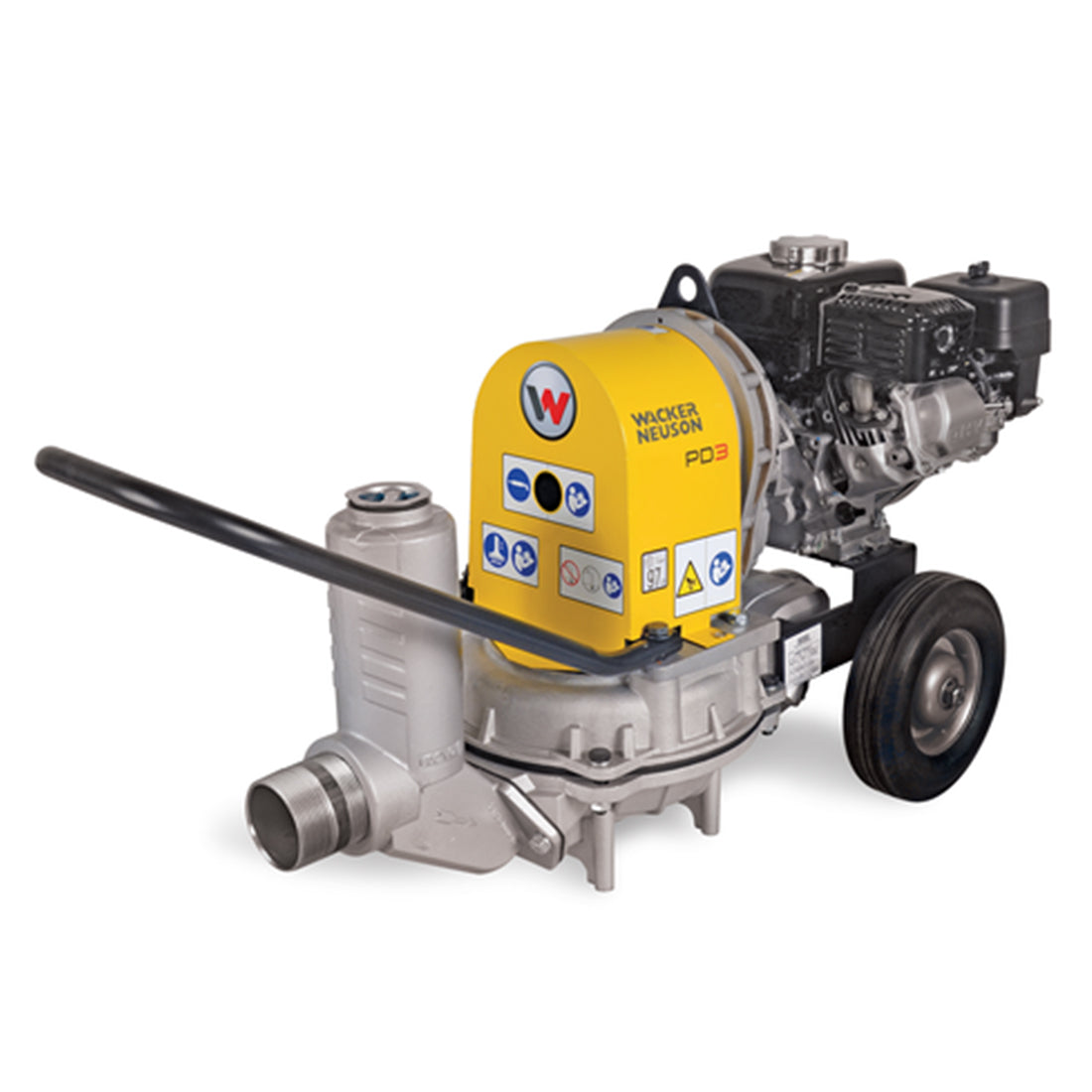

Wacker Neuson PDI3A Diaphragm Trash Pumps

SKU PDI3A
Availability:
Typically available in 5-10 business days. Manufacturer lead times may vary.
Original price $2,008.99 - Original price $2,008.99
Original price
$2,008.99
$2,008.99 - $2,008.99
Current price $2,008.99

Wacker Neuson's diaphragm trash pumps can move almost anything that flows. The direct water flow design minimizes down times caused by blockages and permits unsupervised operation. The high-quality components of these machines guarantee optimal performance and a long service life. PDI pumps can handle the removal of liquids containing solids up to 41 mm, ideal for dewatering mud slurries and sumps.

Features:

  • Safe to run dry: No damage is caused in "snore mode", i.e. running intermittently due to lack of water.
  • The surge chamber at the inlet absorbs pressure surges. That ensures a smooth pumping action and minimizes wear and tear.
  • Oil-bath lubrication constantly greases all parts of the transmission system, thus reducing both maintenance costs and down time.
Specifications
Model PDI3A
Operating Weight 138.89 lbs.
Length x Width x Height 40 x 18 x 24 in.
Diameter (suction and pressure pipe) 3 in.
Discharge Capacity 333 L
Discharge Head 24.6 ft.
Solids Diameter 1.6 in.
Total head 49.21 ft.
Engine / Motor Type Honda GX 120; Air-cooled single-cylinder 4-cycle Gasoline engine
Engine performance (DIN ISO 3046) 4 hp
At rpm 2,800 rpm
Displacement 118 cm³
Fuel consumption 0.29 US gal/h
Tank Capacity 0.66 US gal
