Annovi Reverberi XMV3G30D-F24C2 Pump 3/3000 3400Rpm
SKU XMV3G30D-F24C2
Availability:
Typically available in 5-10 business days. Manufacturer lead times may vary.
Original price
$761.99
-
Original price
$761.99
Original price
$761.99
$761.99
-
$761.99
Current price
$761.99

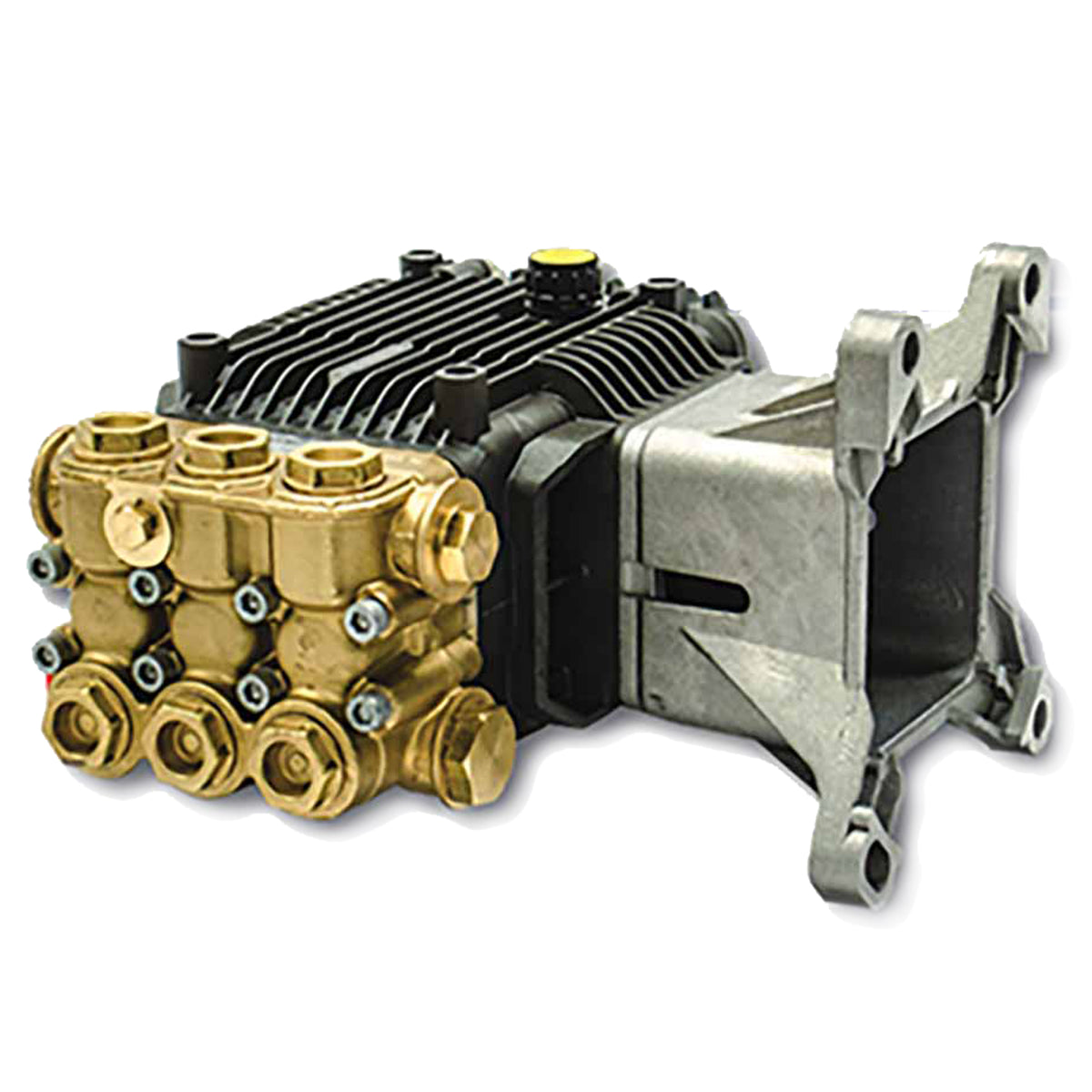

The Annovi Reverberi XMV3G30D-F24, D version 1" hollow shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The XMV3G30D-F24 can produce up to 3000 Max PSI, 3 Max GPM, and is designed to operate at 3400 RPM.
Specifications
| Weight | 16 lbs. |
| Pump Orientation | Horizontal |
| Pump Head Material | Brass |
| Connecting Rods | Aluminum |
| Max GPM | 3 |
| Max L/Min | 11.4 |
| Max PSI | 3000 |
| Max Bar | 206 |
| Power EBHP | 6.2 |
| Bore Dia | 15 mm |
| Stroke | 7.6 mm |
| CSID Stamp | 9 |
| Inlet (in) | 1/2" F |
| Outlet (in) | 3/8" F |
| Max Temp | 140° F |
| Oil Capacity | 14.5 oz. |
| RPM | 3400 |
| Shaft Size | 1 inch |
| Shaft Version | Direct Gas Shaft |
| Shaft Type | Hollow |
| Flange | F24 |
| Pump Type | Tri-Plex Plunger |
