Annovi Reverberi XMV25G26D-F25 Pump 2.5/2600 3400Rpm
SKU XMV25G26D-F25
Availability:
Typically available in 5-10 business days. Manufacturer lead times may vary.
Original price
$576.99
-
Original price
$576.99
Original price
$576.99
$576.99
-
$576.99
Current price
$576.99

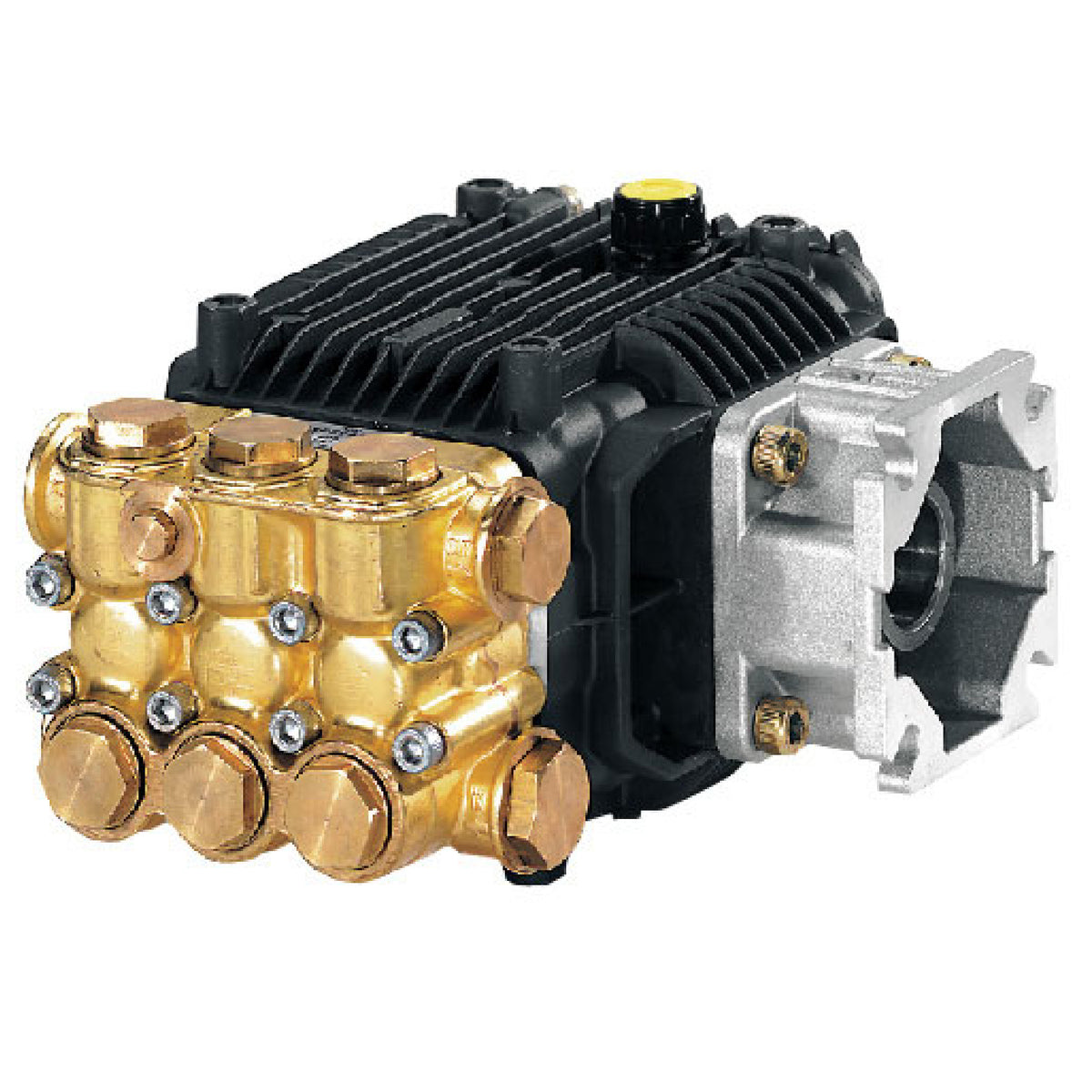

The Annovi Reverberi XMV25G26D-F25, D version 3/4" hollow shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The XMV25G26D-F25 can produce up to 2600 Max PSI, 2.5 Max GPM, and is designed to operate at 3400 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the XMV25G26D-F25 weighs in at 15 lbs and boasts a sleek compact design.
Specifications
| Weight | 15 lbs. |
| Pump Orientation | Horizontal |
| Pump Head Material | Brass |
| Connecting Rods | Aluminum |
| Max GPM | 2.5 |
| Max L/Min | 9.5 |
| Max PSI | 2600 |
| Max Bar | 179 |
| Power EBHP | 4.7 |
| Bore Dia | 15 mm |
| Stroke | 6.2 mm |
| CSID Stamp | 10 |
| Inlet (in) | 1/2" F |
| Outlet (in) | 3/8" F |
| Max Temp | 140° F |
| Oil Capacity | 14.5 oz. |
| RPM | 3400 |
| Shaft Size | 3/4 inch |
| Shaft Version | Direct Gas Shaft |
| Shaft Type | Hollow |
| Flange | F25 |
| Pump Type | Tri-Plex Plunger |
