Annovi Reverberi RKV4G37D-F24 Pump 4 GPM 3700 PSI 3400 RPM
SKU RKV4G37D-F24
Availability:
Typically available in 5-10 business days. Manufacturer lead times may vary.
Original price
$755.99
-
Original price
$755.99
Original price
$755.99
$755.99
-
$755.99
Current price
$755.99

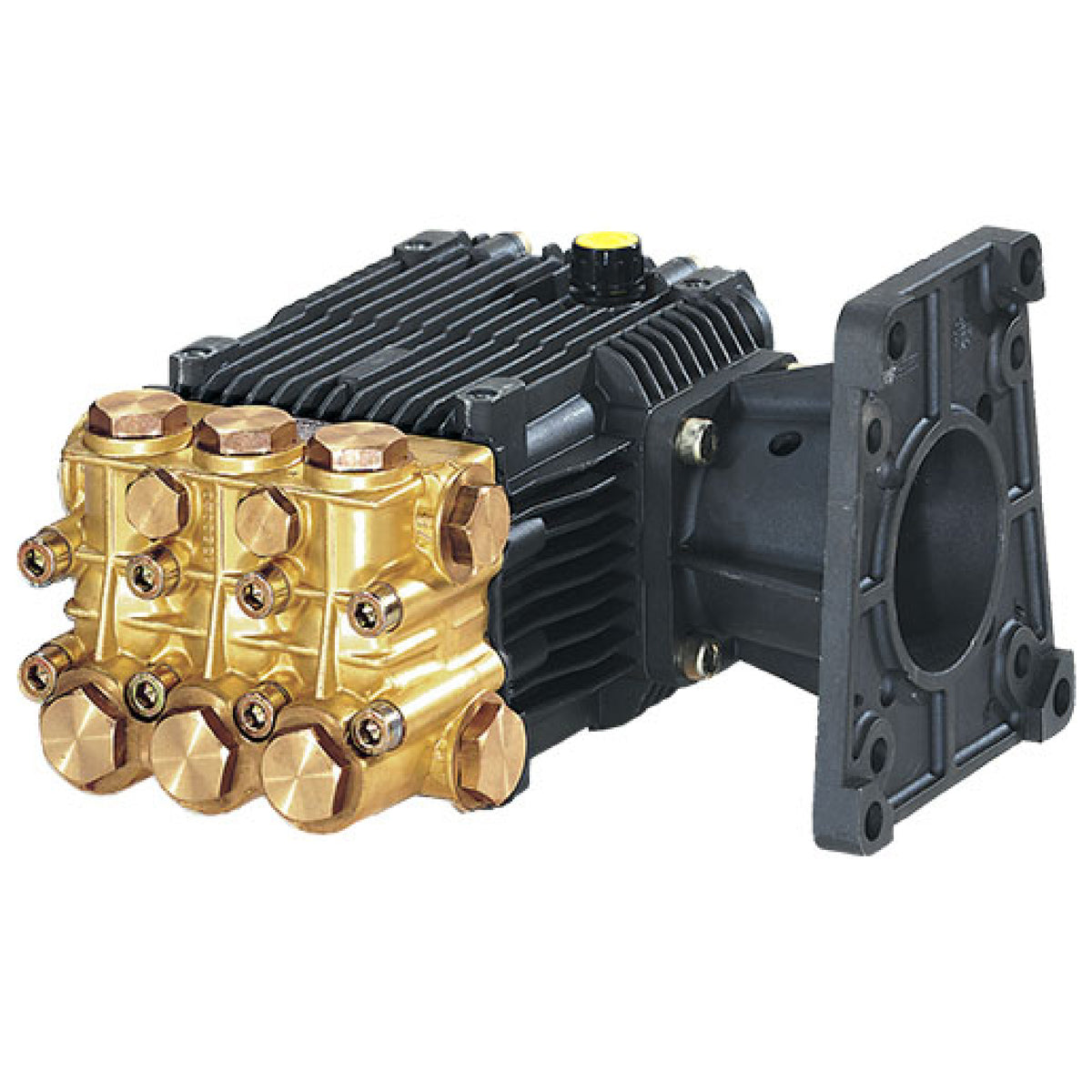

The Annovi Reverberi RKV4G37D-F24, D version 1" hollow shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The RKV4G37D-F24 can produce up to 3700 Max PSI, 4 Max GPM, and is designed to operate at 3400 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the RKV4G37D-F24 weighs in at 21 lbs and boasts a sleek compact design.
Specifications
| Weight | 21 lbs. |
| Pump Orientation | Horizontal |
| Pump Head Material | Brass |
| Connecting Rods | Aluminum |
| Max GPM | 4 |
| Max L/Min | 15.1 |
| Max PSI | 3700 |
| Max Bar | 255 |
| Power EBHP | 7.5 |
| Bore Dia | 18 mm |
| Stroke | 7 mm |
| CSID Stamp | 8 |
| Inlet (in) | 1/2” F |
| Outlet (in) | 3/8” F |
| Max Temp | 140° F |
| Oil Capacity | 15 oz. |
| RPM | 3400 |
| Shaft Size | 1 inch |
| Shaft Version | Direct Gas Shaft |
| Shaft Type | Hollow |
| Flange | F24 |
| Pump Type | Tri-Plex Plunger |
