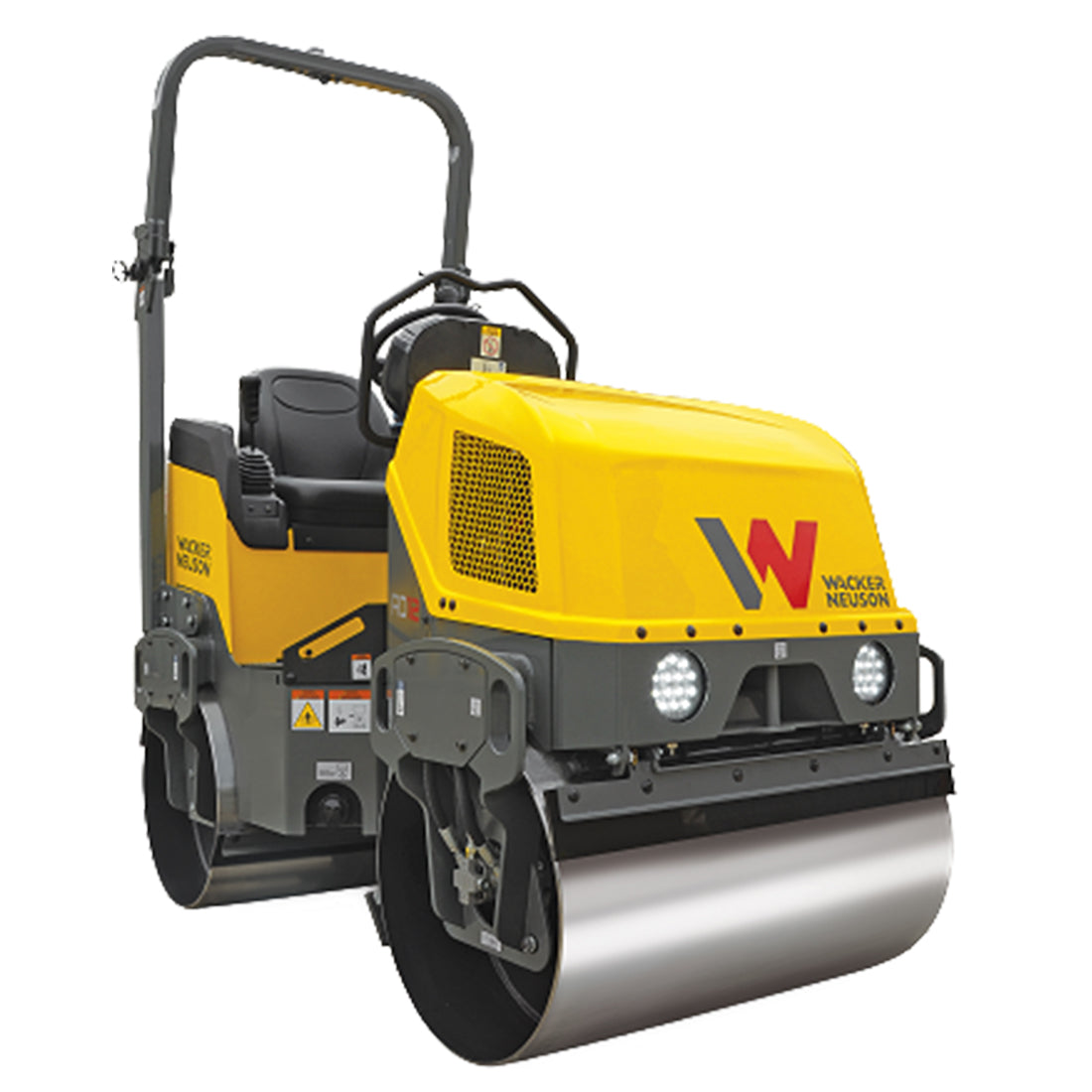

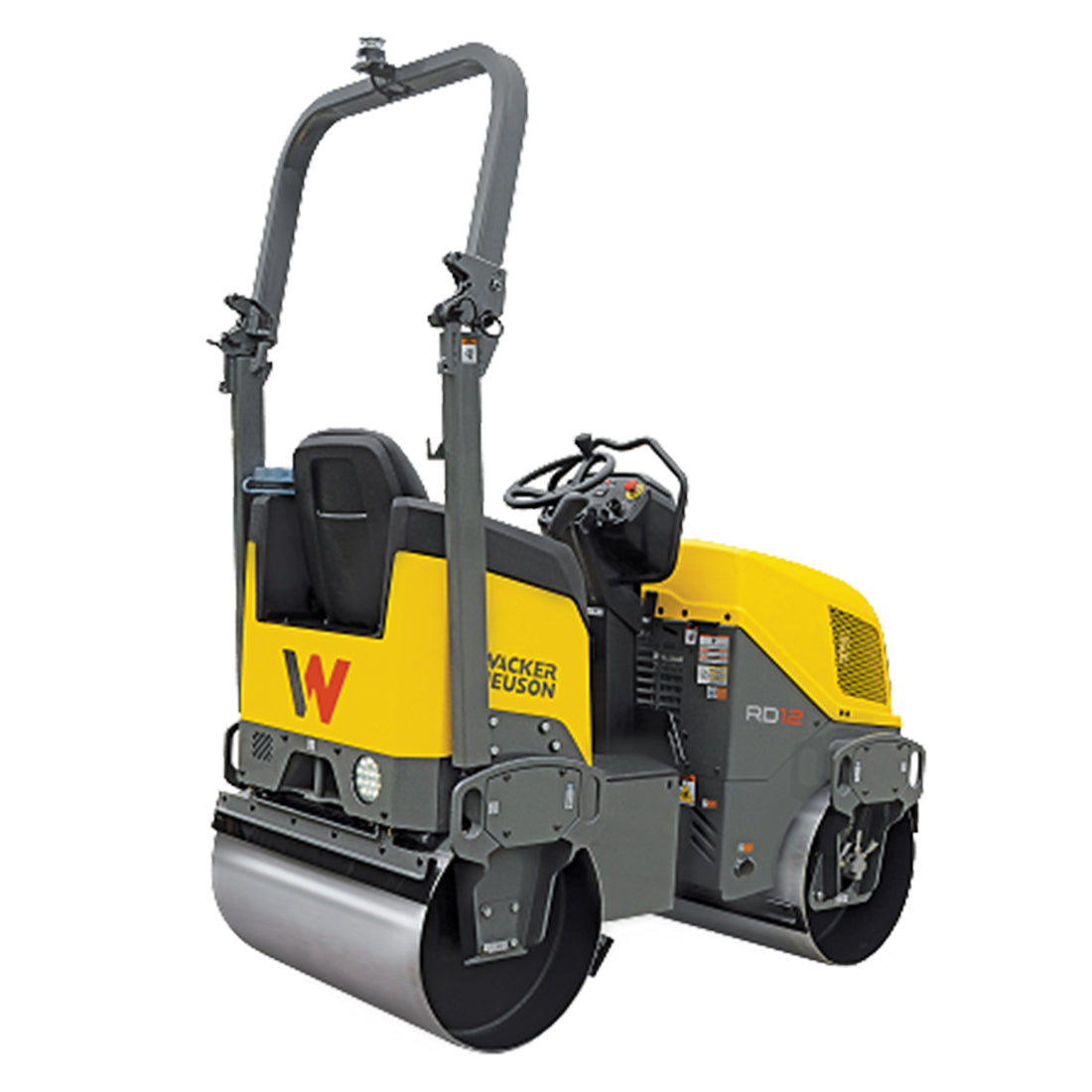

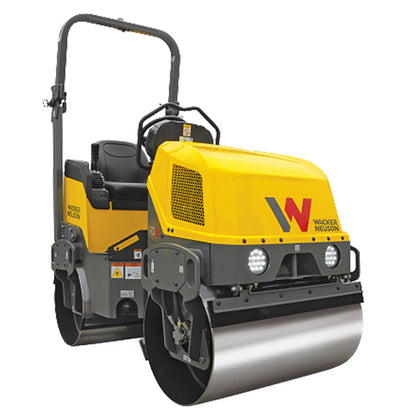

Wacker Neuson RD12-90AF Ride-On Tandem Roller with Foldable ROPS

Wacker Neuson RD12-90AF Ride-On Tandem Roller with Foldable ROPS

by Wacker Neuson
SKU RD12-90AF
Availability:
Typically available in 5-10 business days. Manufacturer lead times may vary.
$27,010.00 - $27,010.00
$27,010.00
$27,010.00 - $27,010.00
$27,010.00

Features:

  • Increased water & fuel capacity minimizes the need for refilling during the day increasing jobsite efficiency.
  • Fully recessed hydraulic motors provide excellent curb and side clearance allowing easy compaction near curbs, walls, and in confined areas.
  • Unique hood design and pivoting floor plate provide quick, tool-free, and spacious access to engine, hydraulic and water systems.
  • Ergonomically designed operator station provides comfort and efficiency to the operator. Ergonomic joystick with integrated water and vibration functions. Fuel and water gauges provide operator feedback to fluid levels during operation.
  • Powered by a proven Honda GX630 engine, the RD12A provides contractors with a highly efficient machine for a variety of applications.

***This item does not qualify for free shipping***

Specifications
Model RD12-90AF
Operating Weight 2,964 lbs.
Length x Width x Height 74in. x 38.8in. x 90.6in.
Drum width 35.4in.
Drum diameter 22in.
Side clearance right 1.7 in.
Side clearance left 1.7 in.
Curb clearance right 15.7 in.
Curb clearance left 15.7 in.
Centrifugal force dynamic (front drum) 3,400 lbf
Frequency 4,200 Vpm
Amplitude 0.043in.
Linear force - front / rear (static) 31.4 / 39.5 lb/in.
Linear force dynamic (front) 96 lbs./in.
Travel speed forward 5 mph
Travel speed reverse 5 mph
Surface capacity area 78,000 ft²/h
Gradeability max. 30%
Turning radius outside 112.2in.
Engine / Motor Type Honda GX630; Air-Cooled, 2-Cylinder, Gasoline Engine
Displacement 42 in³
Operating performance max. rated at 3600 rpm 20.8 hp
Speed Operating Speed 3,100 rpm
Fuel consumption 1.6 US gal/h
Fuel tank capacity 6.3 US gal
Water tank capacity 35 US gal
