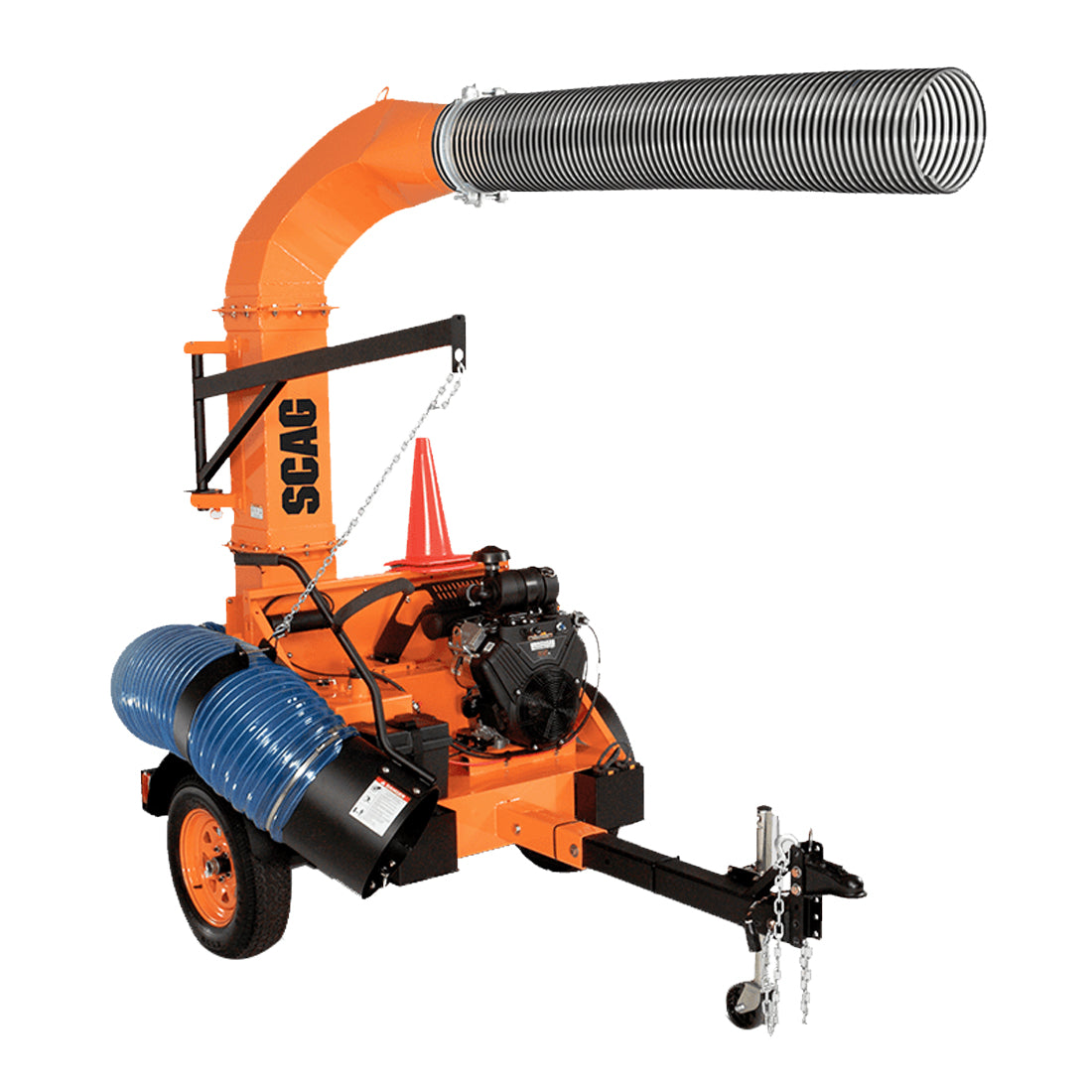

Scag TLB25-35BV Industrial Tow Behind Truck Loader
PICKUP / LOCAL DELIVERY ONLY
Due to manufacturer policy we are unable to ship this product. It is available only for in-store pickup or local delivery.
SCAG INDUSTRIAL TOW-BEHIND DEBRIS TRUCK LOADER

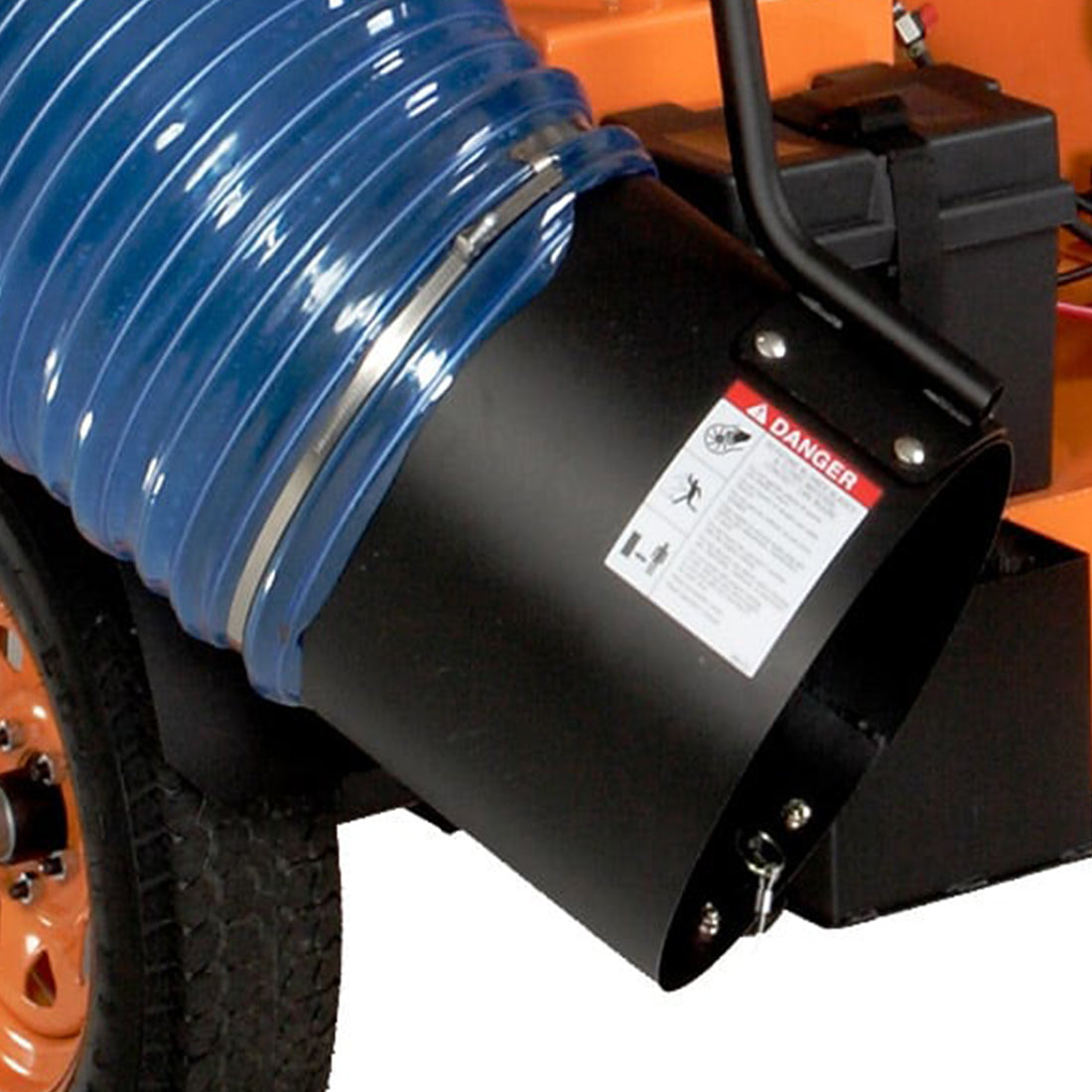

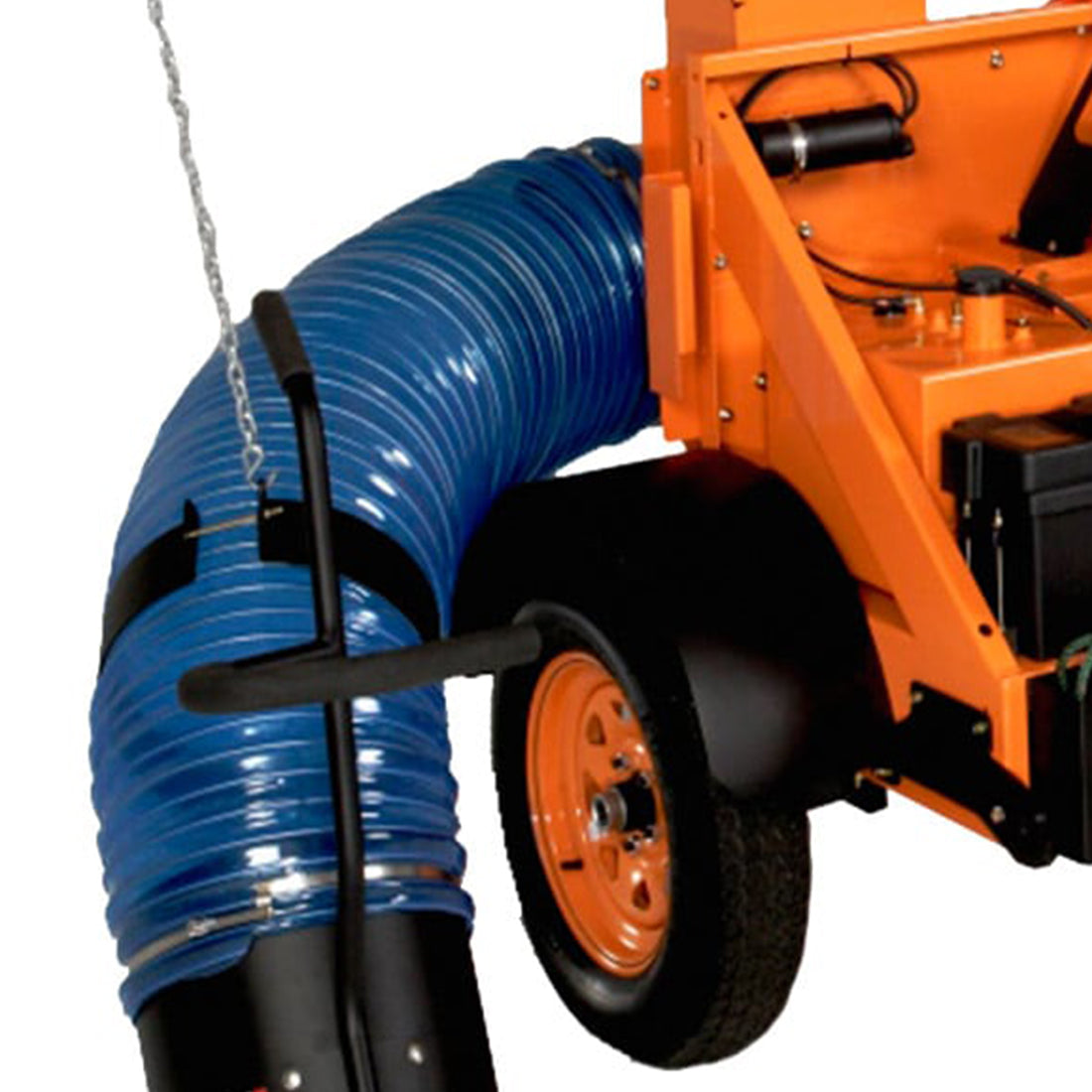

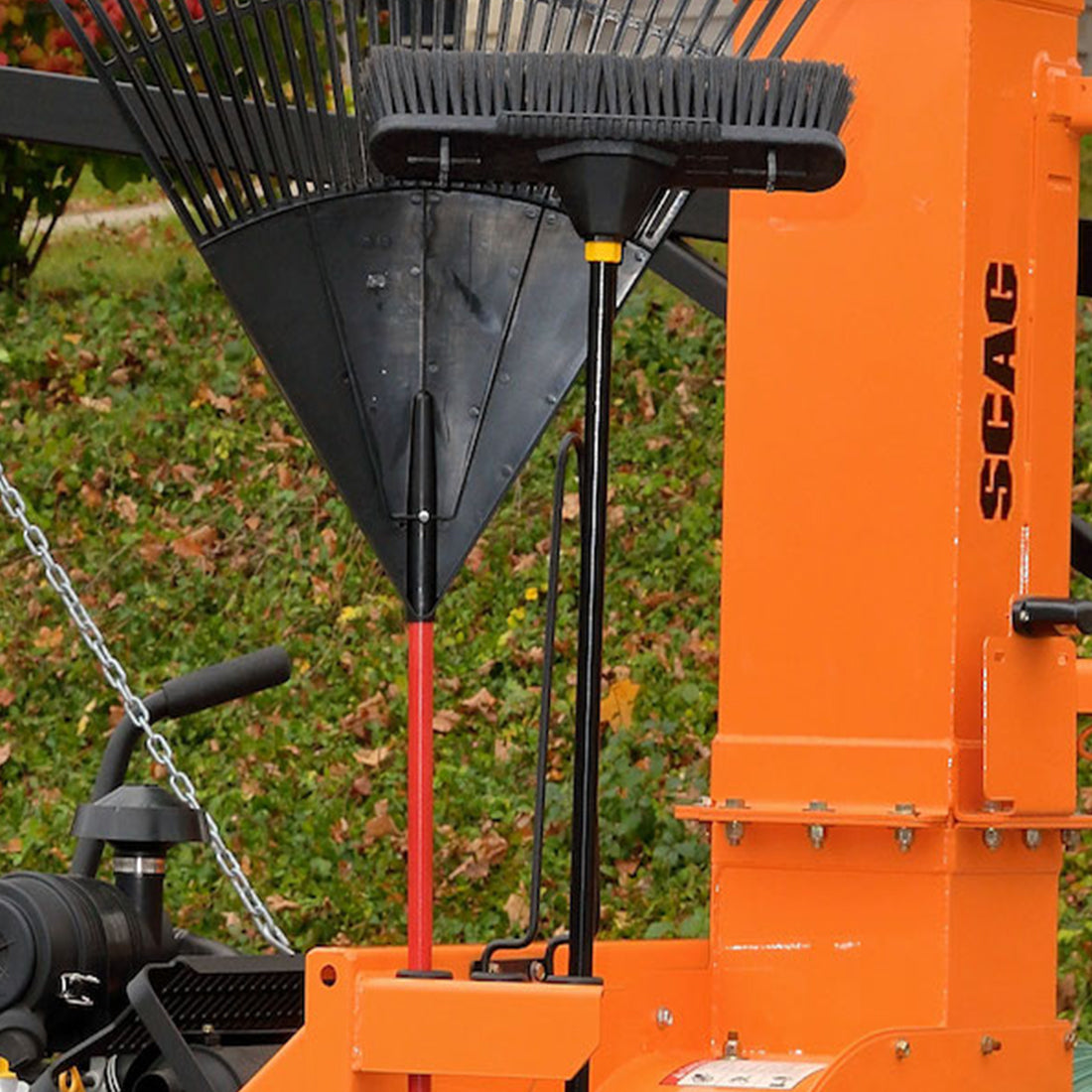

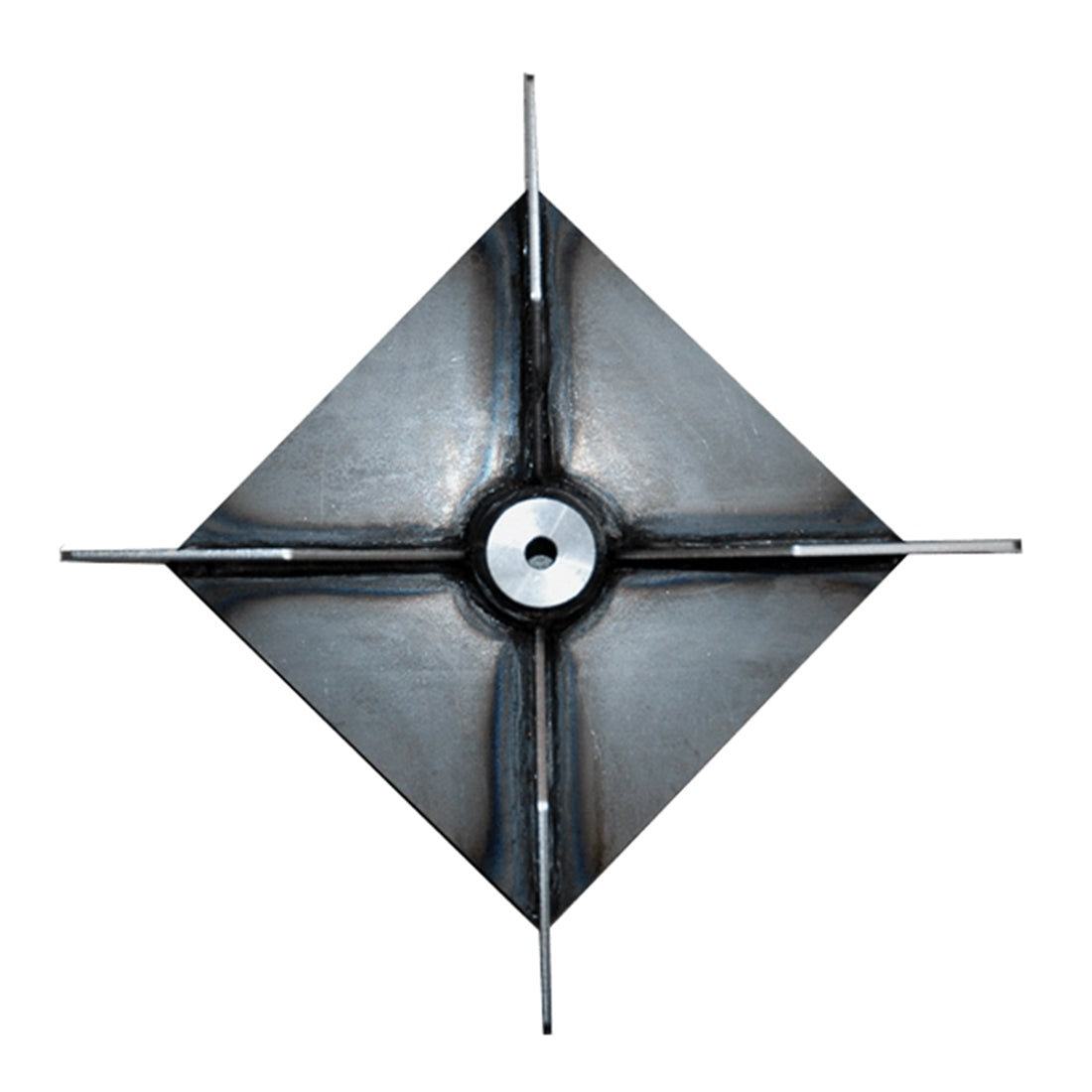

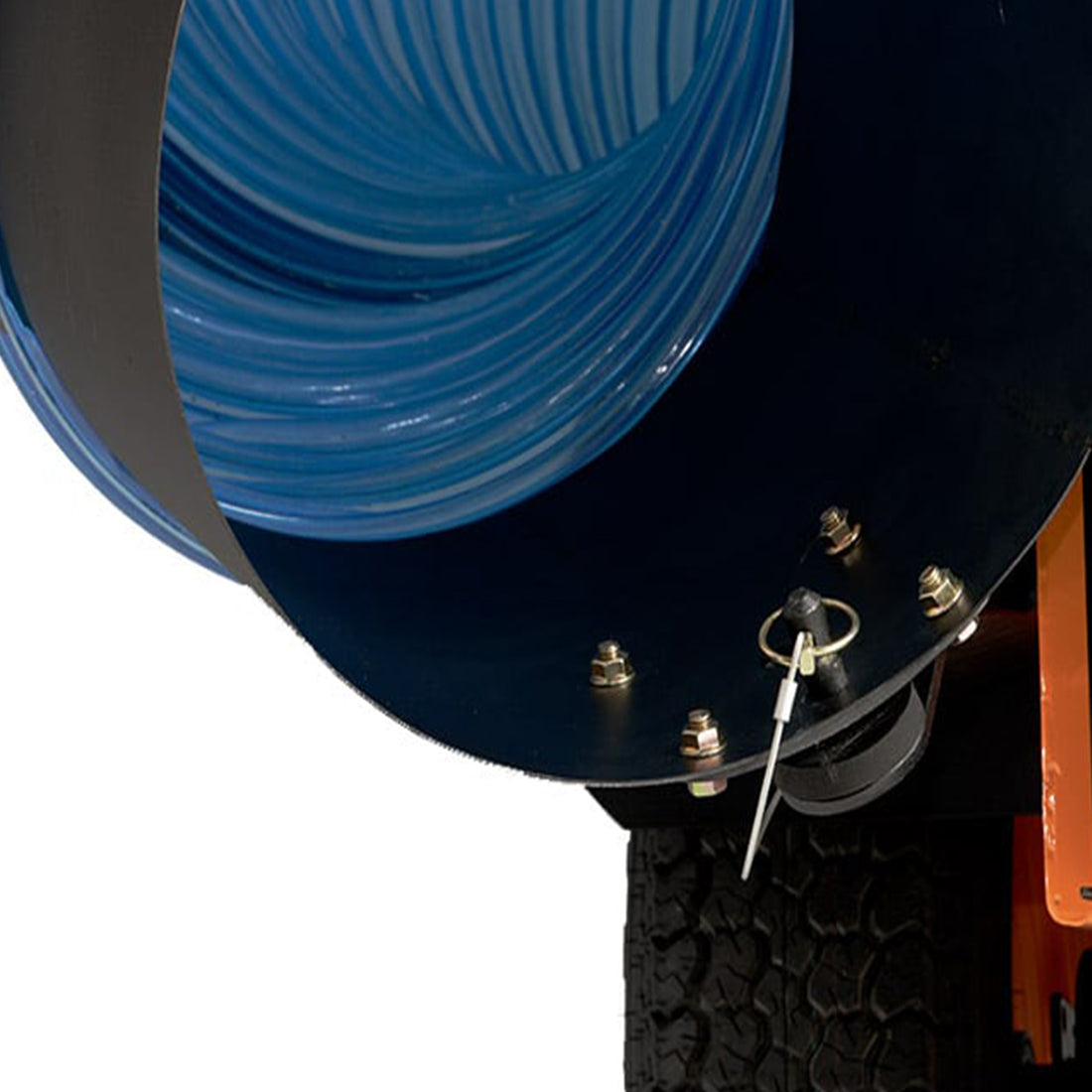

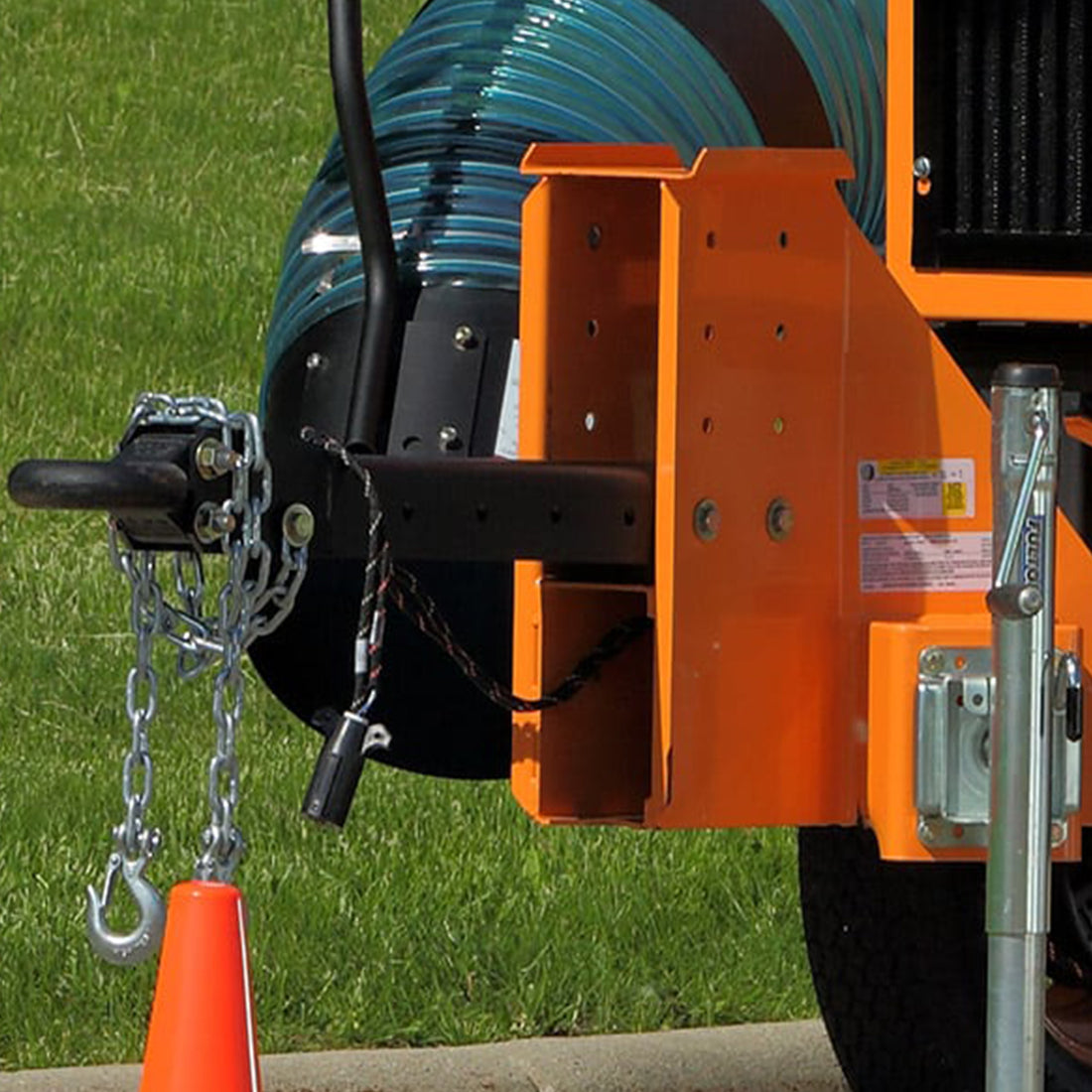

Scag’s Industrial Tow-Behind Truck Loader features 10.5″-wide housing is a welded-steel impeller with 1/2″-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (35BV = up to 6,781 CFM; 37CH = up to 6,909 CFM; 49KBD = up to 7,318 CFM), debris-reducing design. High-capacity, 8.5-gallon, steel fuel tank with large filler neck for easy filling keeps you on the job. Built-in fuel gauge adds convenience and eliminates guesswork. Built-in, 3-hole tool holder with rubber rings protects handles from damage. A height-adjustable hitch gives the best fit your truck. A 2 5/16″ ball coupler comes standard on gas-powered units, but will accept a pintle hitch. Diesel-powered unit comes with standard pintle hitch, but will accept a 2 5/16″ ball coupler. 16” Steel Intake Nozzle HUGE, replaceable intake nozzle makes debris pickup easy. Padded, large-diameter handle is designed for increased leverage and easy maneuverability. Transport lock safely secures the boom arm and hose when not in use; nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation. 1/4″-thick, bolt-in, replaceable wear liner extends service life. Removable rear-housing cover allows easy access to impeller and wear plates.
Specifications
| Model | TLB25-35BV |
| Engine | Vanguard™ BIG BLOCK™, V-Twin, electric start |
| Horsepower | 35hp |
| Fuel Capacity / Tank | 8.5 gallons – plastic tank with built-in fuel gauge |
| CFM Output | 6,781 |
| Frame Construction | All-steel, welded |
| Impeller Construction | 4-blade, 1/2"-thick blades, all-steel, welded |
| Impeller Mounting | Straight bore |
| Impeller Diameter / Width | 25" / 9" |
| Blower Housing Construction | Removable back panel for easy impeller and wear plate access |
| Blower Housing Width | 10.5" |
| Blower Housing Wear Plates | Standard: 1/4"-steel, replaceable |
| Intake Hose Specifications | 84" length, 16"-diameter intake hose, 0.045 blue polyurethane rubber, wire helix with wearstrip |
| Unit Mounting | Hitch: at least 10,000 lb rating |
| Discharge Tube | Clear thermoplastic, 12" diameter, 84" length |
| Throttle Control | Commercial-grade, all-steel mechanicals |
| Highway Ready** | Yes – standard roadside package, including wheel chocks and cones |
| Axle | Heavy-duty Dexter Torflex® axle (3,500 lb) |
| Tires | 205 / 75 D15 highway tires with steel wheels |
| Trailer Width | 66.75" |
| Height | 121.25" |
| Weight | 1,700 lb |
