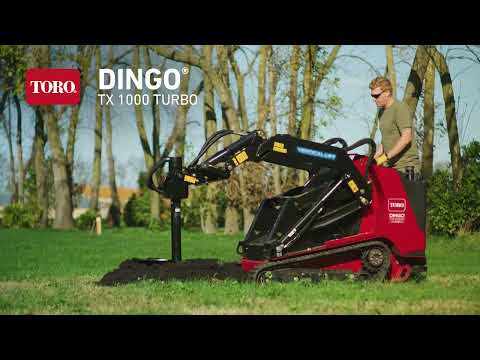

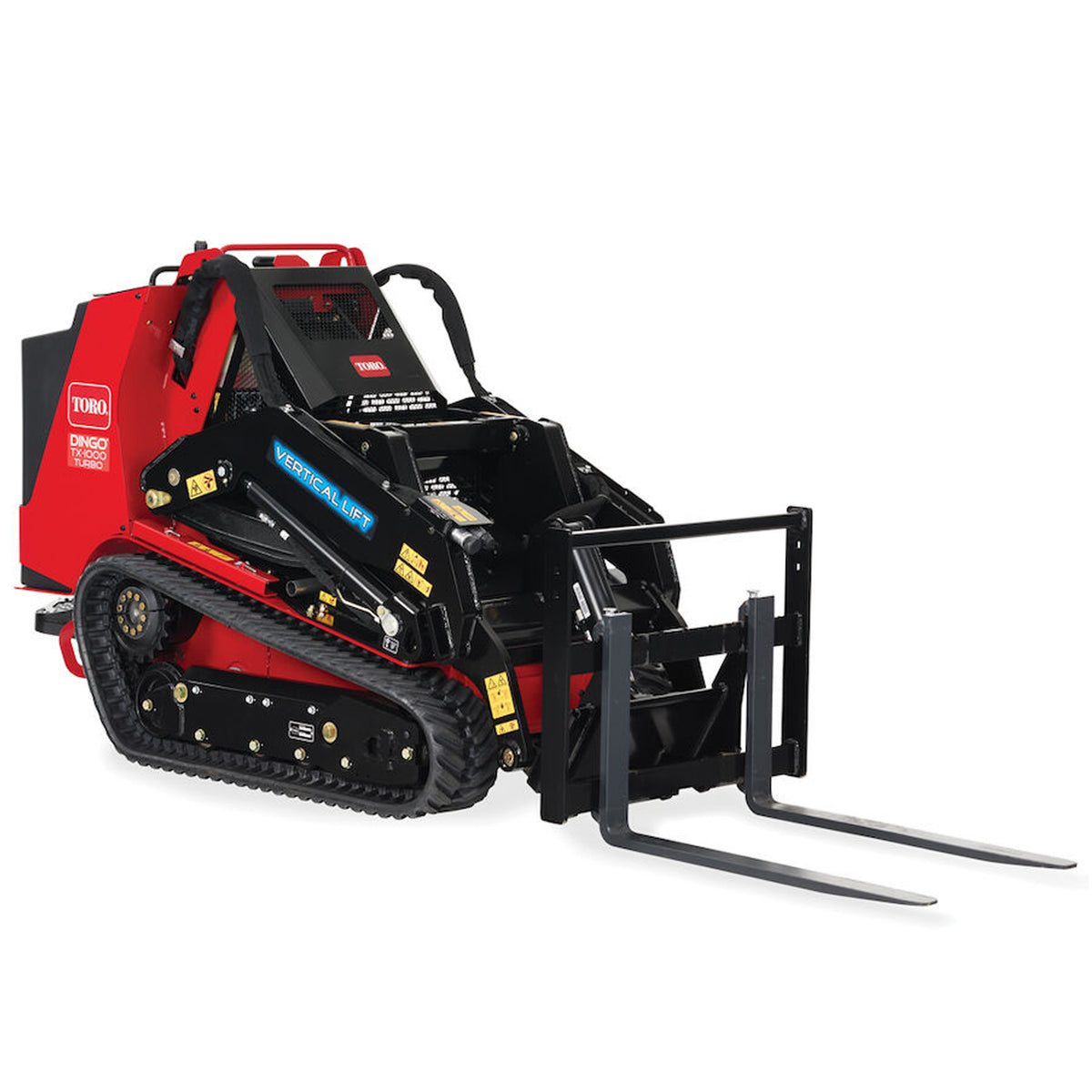

Toro 22588 Dingo TX 1000 TURBO Wide Track
por Toro
SKU 22588
Disponibilidad:
en stock, listo para ser enviado
Experience the ultimate in productivity with the Toro 22588 Dingo TX1000 TURBO Wide Track. The cutting-edge YANMAR® diesel engine reduces vibrations and enhances torque, resulting in unparalleled performance with trencher and auger attachments. Operators will appreciate the difference when it comes to project efficiency and quality.
Features:

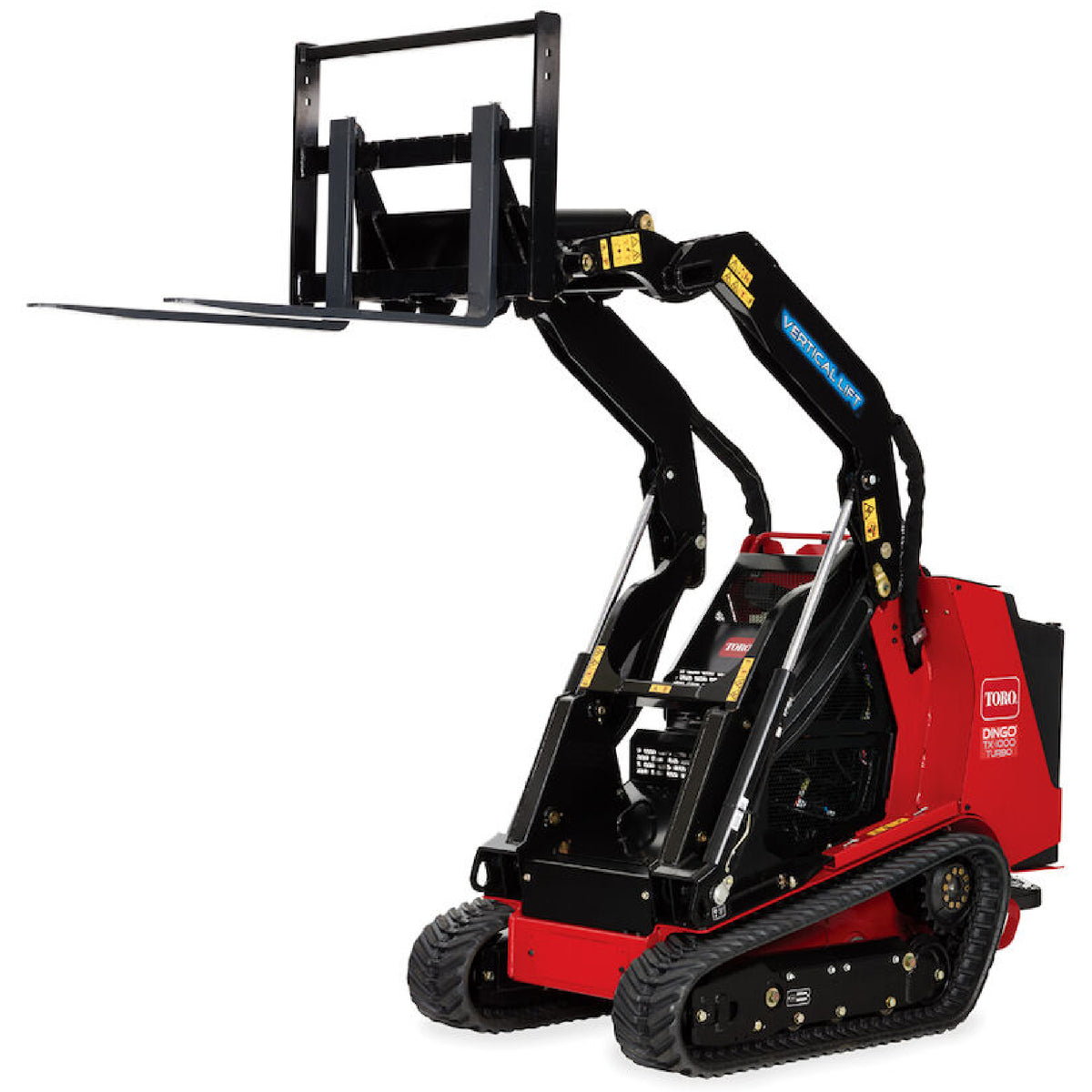

- VERTICAL LIFT LOADER ARMS - Vertical lift arms with 81" (206 cm) hinge pin height allows attachments to easily clear the side of 30-yard dumpsters or one-ton trucks.
- ENGINE - Powered by a 24.7 HP turbo Yanmar diesel engine to deliver a consistent and reliable user experience.
- TRACTION CONTROL SYSTEM - Toro's patented traction control system allows intuitive user operation for all skill levels now includes the integration of a digital display.
- SMART POWER® - Smart Power allows the machine to run more efficient by automatically adjusting traction speed to maximize engine, auxiliary, and traction torque.
- EASY OPERATION - The auxiliary foot pedal maintains hydraulic flow to the attachment, freeing the operator's hands to focus on ground speed an attachment positioning.
Specifications
| ENGINE | Engine | 24.7 HP* (18.4 kW) Yanmar® 3TNV80FT Turbo Diesel Tier 4 & EU Stage 5 compliant |
|---|---|---|
| - | Air Filter | Remote: Primary and Safety Elements |
| - | Cooling System | Combo crossflow radiator and oil cooler |
| - | Fuel Tank | 10.25 gallons (38.8 liters) |
| - | Oil Capacity | 3.8 quarts (3.6 liters) |
| HYDRAULIC SYSTEM | Hydraulic Pressure | 3,000 PSI |
| - | Hydraulic Flow | Traction: 12.3 gpm (each pump), Auxiliary: High Flow 13.2 gpm, Low Flow 4.9 gpm |
| - | Capacity | System 11.5 gallons (43.5 liters), Reservoir 8.6 gallons (32.5 liters) |
| TRACKS | Standard | MERT track with Turf Friendly style tread |
| - | Traction | Dual hydrostatic pump |
| DIMENSIONS | Track Length & Width | 126.6" x 9.1" (321.6 cm x 23.1 cm) |
| - | Wheelbase | 39" (99.1 cm) |
| - | Ground Clearance | 5.9" (15.0 cm) |
| - | Overall Dimensions (WxLxH) With Bucket | 42.2" x 104.0" x 54.5" (107.2 x 264.2 x 138.4 cm) |
| - | Overall Dimensions (WxLxH) Without Bucket | 39.9" x 83.0" x 54.5" (101.3 x 210.8 x 138.4 cm) |
| - | Maximum Operating Height | 106.2" (269.7 cm) |
| - | Hinge Pin Height | 81" (205.7 cm) |
| - | Dump Height | 60.3" (153.2 cm) |
| - | Dump Angle | 40-degrees |
| - | Reach - Fully Raised | 23.3" (59.2 cm) |
| - | Ground Speed | 4.1 mph (6.6 km/h) |
| - | Weight | 2,911 lbs (1,320 kg) |
| - | Rated Operating Capacity* | 1,000 lbs (453.5 kg) |
| - | Ground Pressure | 4.1 PSI |
