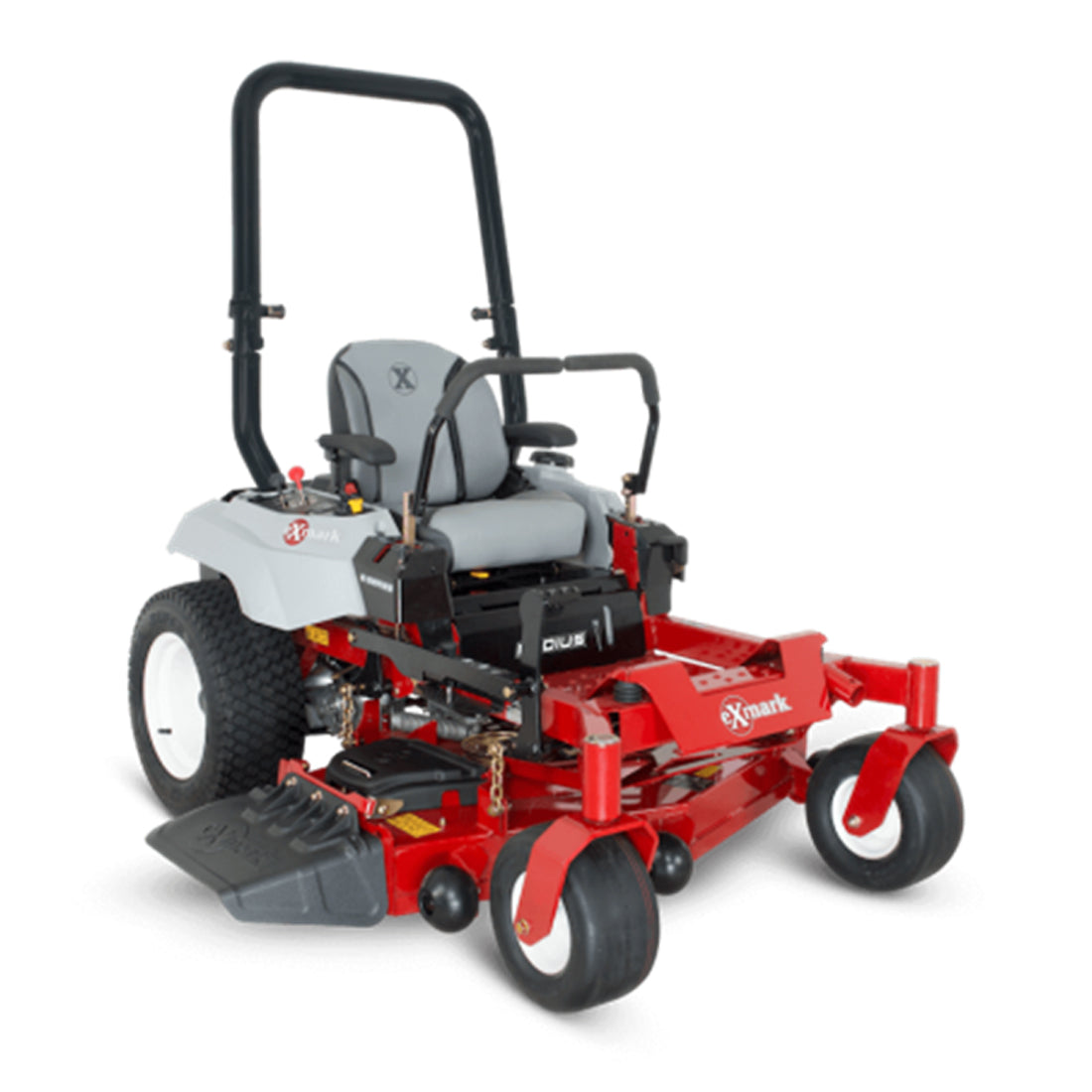

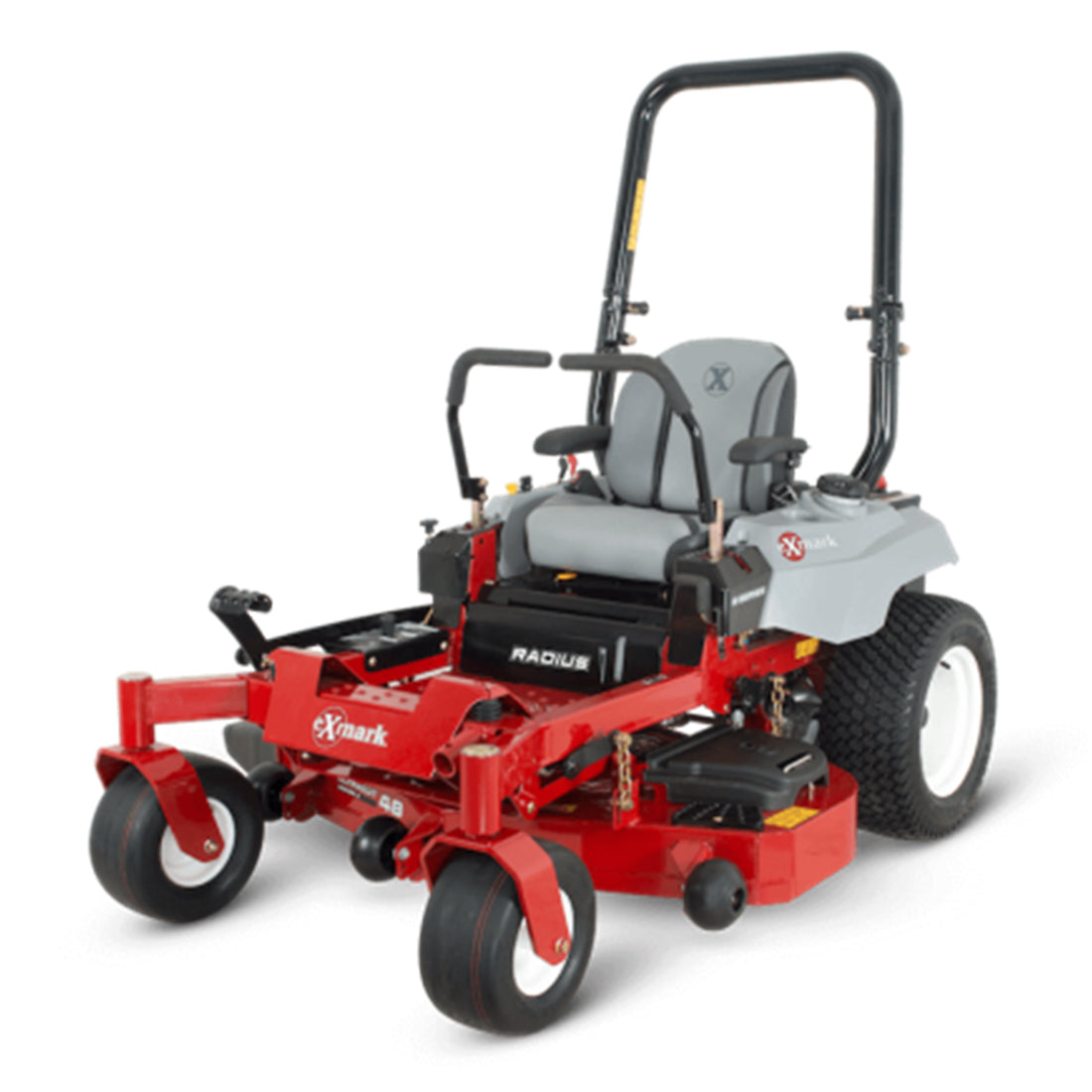

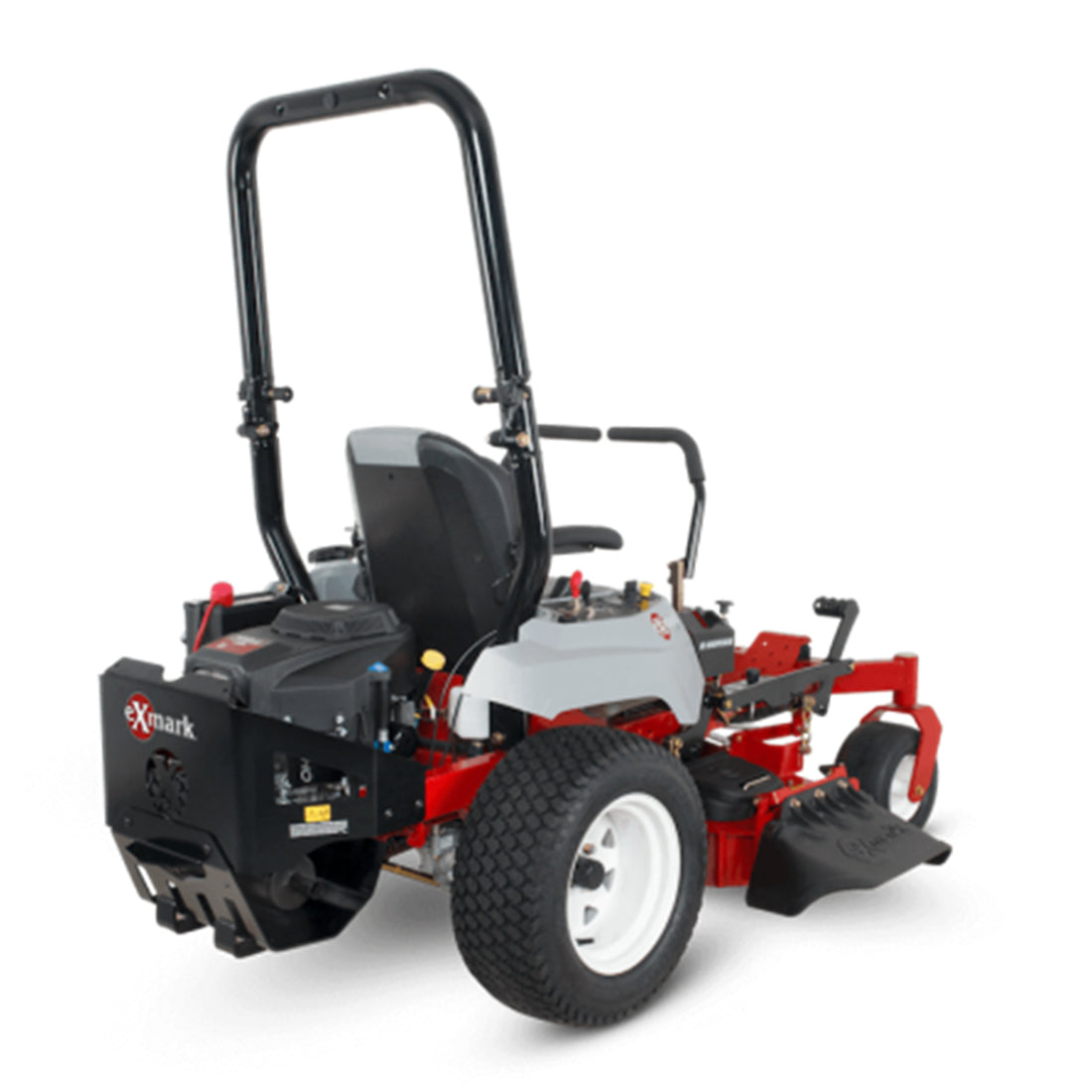

Exmark Radius E-Series RZE708GEM52300 52 In. Zero Turn Mower
Designed to deliver professional-grade features at an affordable price, the new Exmark Radius E-Series zero-turn mower is a great option for landscape maintenance pros and users seeking professional performance. Available with a choice of 48-, 52- or 60-inch UltraCut Series 3 cutting decks, the Radius E-Series delivers the cut quality you expect, with reduced maintenance and durability you can count on. Powered by the Exmark twin-cylinder commercial engine, Radius E-Series models deliver superior operator comfort with an isolated footrest, seat suspension options and a new side pod design (2023 models) that places vital controls right at the operator’s fingertips.
Features:
- UltraCut Deck Technology- Exmark’s exclusive UltraCut decks are featured on Radius models. Every UltraCut cutting deck features Exmark’s exclusive maintenance-free, sealed-bearing spindle assemblies for increased durability and reduced downtime, combined with zero maintenance.
- Heavy Duty Fabricated Frame- With a fully welded frame built from 2x3-inch frame tubes, the Radius design places major components including the engine, hydro drive system and fuel tank lower in the frame. The lower center of gravity and better mass centralization results in increased traction and stability, with improved handling.
- Adjustable Rollover Protection System (ROPS)- A new adjustable ROPS system is easy to fold up-and-down, and is built from round tubes for easy, flexible accessory placement.
- Height of Cut Made Easy- Our patented height of cut adjustment system is user friendly and allows the operator to quickly and accurately select height of cut from the operator seat.
- Large Tires- Radius E-Series models feature smooth rolling 23-inch drive tires and large, 13x6.5-inch caster tires.
Specifications
Starter | Electric |
---|---|
Steering Control | Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment. |
Front Caster Tires | 13 x 6.5-6 smooth tread pneumatic. Bushings |
Drive Tires | 23 x 9.5-12 Super Turf TL |
Parking Brake | Lever-actuated pawl brake. |
Tractor Frame | Unibody welded heavy-duty 2" X 3" rectangular tubular steel. |
Blade Spindles | No maintenance sealed and non-greasable spindles; 7.30"-diameter cutter housing contains 17mm (.67")diameter spindle shaft and hex blade drive. |
Electrical | 12-volt battery with 15-amp alternator. |
Standard Features | Engine hour meter cup holder tow hitch and jack receiver |
Seat | High back seat with foam padded seat cushion armrests and integral safety switch |
Engine Brand | EXMARK |
Transmission Speeds | Infinitely Variable |
Engine Model | LC2P77F |
Engine Displacement | 708 |
Transmission | Hydrostatic |
Fuel System | Carbureted |
Speed | Infinitely variable speed selection from 0–8.0 mph (12.9 kmph) forward; 0–5.0 mph (8.0 kmph) reverse. |
Engine Series | V-Twin |
Engine Spec | K5045 |
Drive | Hydro-Drive |
Engine Speed | 3600 rpm |
Air Filter | Standard Engine Manufacturer's air filter |
Fuel Capacity | 7-gallon (26.5-L) single fuel tank with single fill location. |
Drive Description | Dual Hydro Gear ZT2800 hydrostatic transmission with charge pumps relief valves and independent replaceable filters. |
Fuel Type | Gas Carbureted |
PTO Engagement | MagStop electromagnetic 125-ft-lb clutch |
Drive Wheel Release | Allows unit movement without engine running. |
Fuel Indicator | Translucent Visual |
Deck Lift | Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles or place in transport position. |
Carb Compliant | No |
Safety Package | Operator Presence Controls (OPC) and drive system interlock with safety interlock system indicators. |
ROPS | 2-post foldable ROPS standard with seat belt and latch. |
Deck Style | Floating Deck |
Deck Style Description | Full-floating UltraCut Series 3. Side discharge standard with molded discharge chute and option to bag or mulch. |
Width / Cutting Deck | 52" |
Deck Construction | 10-gauge high strength alloy top that is formed and continuously seam welded with 7-gauge side skirt. |
Cutting Heights | 1.5" (3.8 cm) to 5.0" (12.7 cm) in 0.25" (.6 cm) increments adjustable from operator's seat. |
Blade Tip Speed | Approximately 18500 fpm. |
Blades | 3 Blades at 18.00" Length |
Width | 64.3 in (163.3 cm) |
Height | 69.7 in (177.0 cm) |
Length | 80.3in (204.0 cm) |
Curb Weight | 861 |
