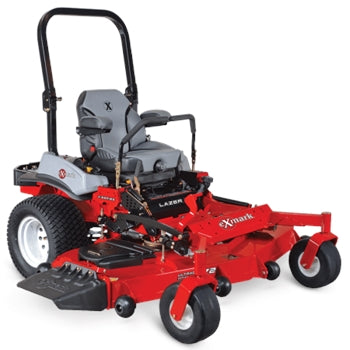

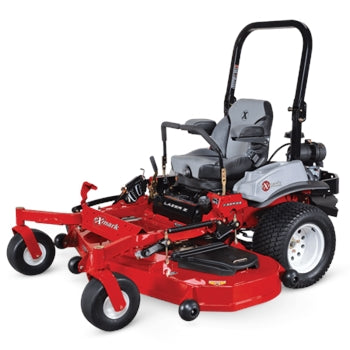

Exmark Lazer Z X-Series LZX921GKA606Q1 60 In. Zero Turn Mower
With options to meet the needs of the most demanding landscape maintenance professionals, our top-rated Exmark Lazer Z X-Series zero-turn mowers represent the state-of-the-art in commercial mowers. Cutting deck options include our massive 96-inch UltraCut Flex Wing cutting deck and select models equipped with our exclusive cut quality enhancing Adapt Technology. Choose from rugged commercial-grade engines, including high-efficiency Electronic Fuel Injection (EFI) options equipped with our exclusive EGov and RED Technology, which can boost fuel efficiency by up to 41%. Lazer Z X-Series zero-turn mower models are available with UltraCut Series 6 decks in 52-, 60-, and 72-inch cutting widths, with or without Adapt Technology, or the 96-inch UltraCut Flex-Wing rear discharge cutting deck. Regardless of the combination you choose for your Exmark Lazer Z zero-turn mower, you’ll ride in unmatched comfort thanks to our full-suspension seating system and smooth, easy-to-use controls that offer precision maneuverability. And from a long-term value standpoint, nothing beats the Exmark Lazer Z X-Series mower. It's the perfect combination of power, productivity, and durability. That's why it's our top-of-the-line gasoline-powered mower and should be at the top of your list.
Features:
- UltraCut Series 6 Deck- This full-floating deck uses double-row bearings with a splined blade driver to stop bolt tightening on impacts. And, our patented bearing design on idler arm pivots only needs annual service. (96" Flex Wing Deck is a rear discharge deck.)
- Adapt Your Cut- Achieve an optimal cut in a wider variety of conditions with our exclusive Adapt Technology. Adjust deck rake without tools, from the operator seat, to customize deck performance. Available on select 2023 Lazer Z X-Series models.
- A New Level of Comfort- Comfort increases productivity. That’s why we designed a new, ergonomically advanced seat system featuring our exclusive Iso-Mount Seat Isolation System.
- Tool-less Belt Removal- Deck and hydro belt can be installed without using any tools.
- Oil Guard System- The Vanguard Oil Guard System increases mower uptime and decreases necessary in-season maintenance by extending oil change intervals to 500 hours, while also lowering engine oil temperature by 20-30 degrees. Available on select Lazer Z X-Series models.
- Patented RED Technology- Enabling communication and response between key systems on your mower with defined operation modes, system monitoring and clutch saver features.
- Productivity- Higher ground speeds with 16cc drive system and more power with larger engine displacements for improved productivity.
Specifications
Starter | Electric |
---|---|
Steering Control | Hydraulically dampened twin levers adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions. |
Caster Forks | .50" thick caster yoke arms. |
Front Caster Tires | 13 x 6.5-6 smooth tread semi-pneumatic tires. |
Drive Tires | 24 x 12.0-12 4-ply Turf Master® |
Parking Brake | Lever-actuated disc brake. |
Tractor Frame | Unibody welded heavy-duty 1.5" x 3" tubular steel. |
Blade Spindles | No maintenance sealed and non-greasable spindles; 7.75"-diameter cutter housing with 30mm (1.18") diameter spindle shaft double row bearings top and bottom and splined blade driver. |
Electrical | 12-volt battery with 15-amp alternator. |
Standard Features | Engine hour meter and cup holder |
Seat | Deluxe two-tone bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up. |
Transmission Speeds | Infinitely Variable |
Engine Brand | Kawasaki |
Engine Model | FX921V |
Engine Displacement | 999 |
Engine Series | V-Twin |
Speed | Infinitely variable speed selection from 0–11.5 mph (18.5 kmph) forward; 0–7.0 mph (11.3 kmph) reverse |
Transmission | Hydrostatic |
Engine Spec | FX921V-_S04-R |
Drive | Hydro-Drive |
Engine Speed | 3750 RPM |
Air Filter | Heavy-duty canister air filtration system |
Fuel Capacity | 12-gallon (45.4-L); single fuel tank with single fill location. |
Drive Description | Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses integrated cooling fans shock valve 1.7-quart integrated reservoir spin-on filter and heavy-duty components. 16 cc pumps and 17.1 cubic inch motors. |
Fuel Type | Gas Carbureted |
PTO Engagement | MagStop Electromagnetic 250-ft-lb clutch with spot brake |
Drive Wheel Release | Allows unit movement without engine running. |
Fuel Indicator | Yes - electronic Sender |
Deck Lift | Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles or place in transport position. Equipped with Adapt system. |
Carb Compliant | No |
Safety Package | Operator Presence Controls (OPC) and drive system interlock with safety interlock system indicators. |
ROPS | 2-post foldable ROPS standard with seat belt and latch. |
Deck Style | Floating Deck |
Deck Style Description | Full-floating UltraCut Series 6 with heavy-duty spindle. Side discharge standard with the option to bag or mulch. |
Width / Cutting Deck | 60" |
Deck Construction | 10-gauge top that is formed and continuously seam welded 7-gauge side skirt and 7-gauge formed and welded spindle mounting locations for improved strength and reduced weight. |
Cutting Heights | 1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from operator’s seat. |
Blade Tip Speed | Approximately 18500 fpm. |
Blades | 3 Blades at 20.50" Length |
Width | 72.8 in. (184.9 cm) |
Height | 70.5 in. (179.1 cm) |
Length | 83.1 in. (211.1 cm) |
Curb Weight | 1256 |
