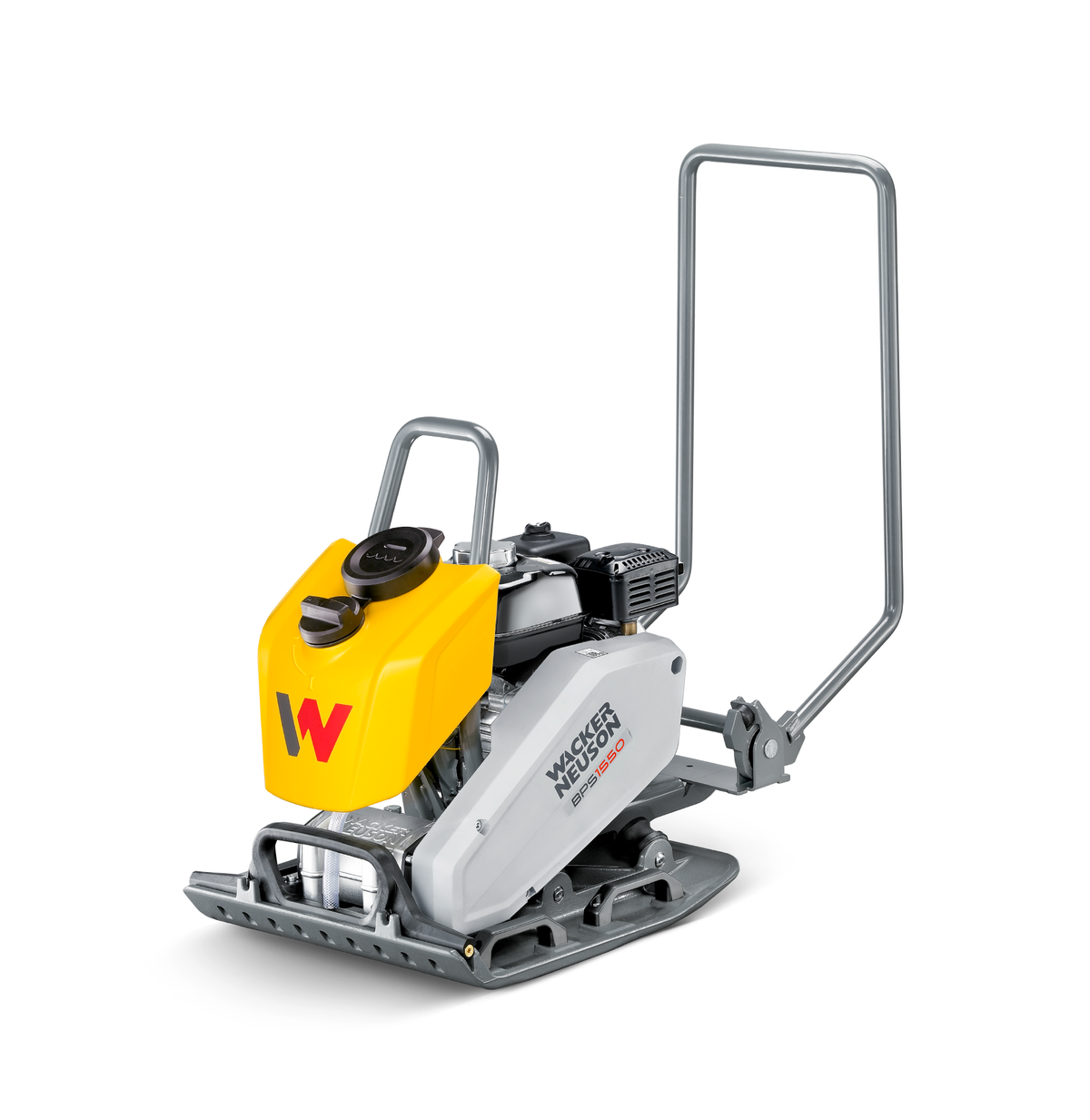

Wacker Neuson BPS1550BW Single-Direction Vibratory Plate
por Wacker Neuson
SKU BPS1550BW
Disponibilidad:
en stock, listo para ser enviado
Precio original
$0
Precio original
$2,515.00
-
Precio original
$2,515.00
Precio original
Precio actual
$2,515.00
$2,515.00
-
$2,515.00
Precio actual
$2,515.00
The BPS series is distinguished by its outstanding handling capabilities. Moving and turning these vibratory plates on fresh asphalt is unsurpassed in comfort and produces clean finishes with no marks. Even clean finishes at curbs are easy to produce due to the angular side edges of the base plate. The guide handle responds precisely to steering movements while still achieving low hand-arm vibrations of less than 5 m/s², which makes long and comfortable working conditions possible.
Features:
- Excellent turning ability and control with simultaneously low HAV- The guide handle responds precisely to steering movements while simultaneously reducing hand-arm vibrations to the greatest extent possible. This way, the vibratory plate can be controlled comfortably with little effort. Turning and steering movements are transferred very easily to the machine. This makes work quick and comfortable.
- Large selection of engines- The BPS plates are available with the choice of Honda or Briggs & Stratton gasoline engines.
- Large water tank (8 Liter) with efficient sprinkler system- The water tank is permanently mounted on the unit and cannot be removed as is the large hinged lid with slot. This means filling the tank with water is possible even without opening the lid. The sprinkler system offers reliable water coverage over the entire width of the base plate without wasting water. As a result, refilling is needed less often. The water volume can be regulated as required via a large knob within easy reach.
Specifications
| Centrifugal Force | 15 kN |
|---|---|
| Area Capacity | 750 m2/h |
| Gradeability | 36.4 % |
| Length Baseplate | 599 mm |
| Width | 500 mm |
| Width Baseplate | 500 mm |
| Height | 663 mm |
| Height Cover Frame | 663 mm |
| Thickness Baseplate | 9 mm |
| Operating Weight | 89.5 kg |
| Ground Clearance | 663 mm |
| Effective Power | 3.6 KW |
| Nominal Engine Speed | 3,600 1/min |
| HAV Summation (Average Value) | 4.1 m/s2 |
| HAV Summation (Standard) | EN 500-4 |
